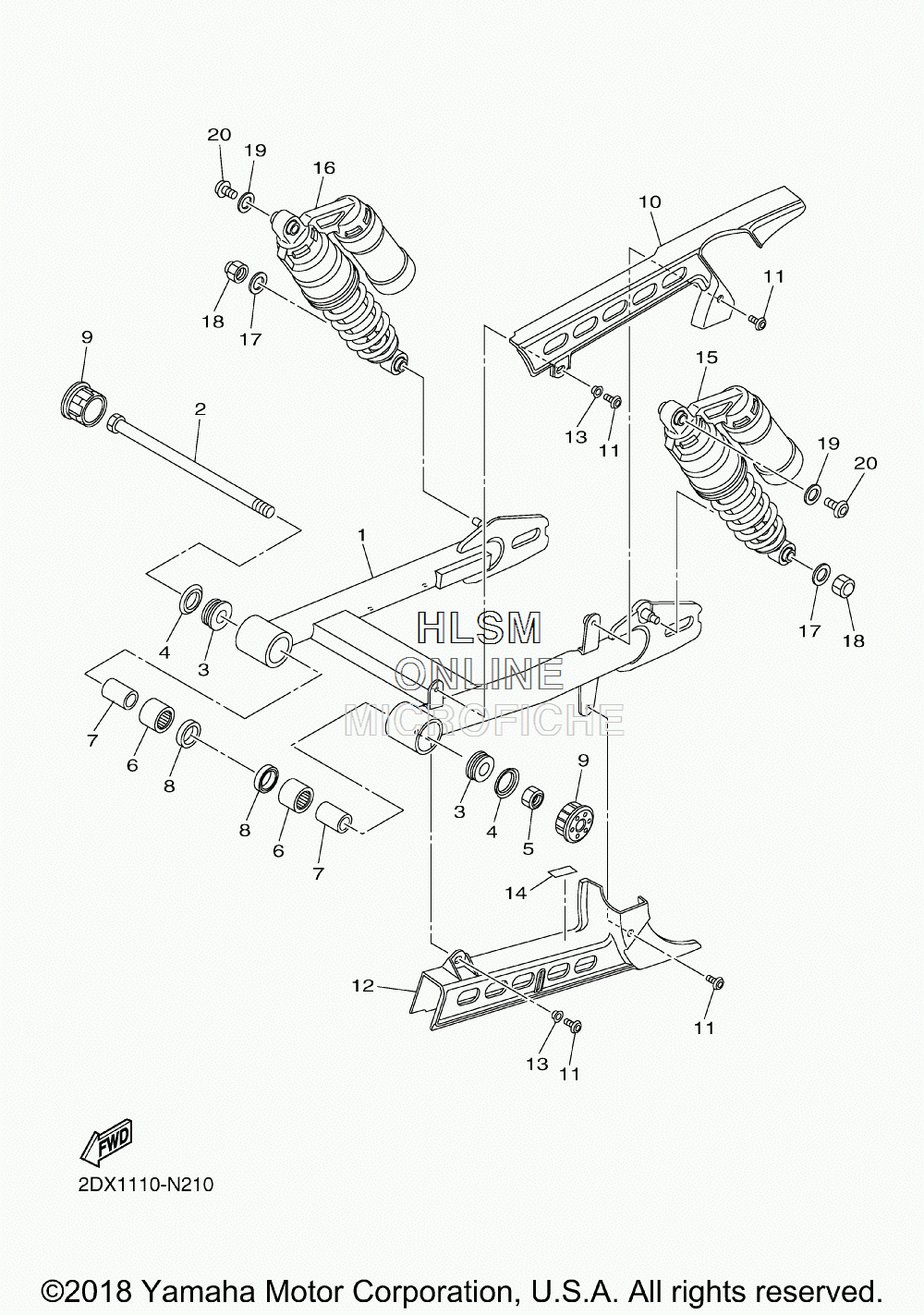

SUSPENSION - REAR ARM для Yamaha BOLT R SPEC - 2018 года выпуска`
-
№АртикулНазвание
-
11TP-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
21TP-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
390387-16030-00 COLLARCOLLAR
-
493108-44001-00 OIL SEALOIL SEAL
-
595602-16100-00 NUT, UNUT, U
-
693317-52897-00 BEARINGBEARING
-
790387-16032-00 COLLARCOLLAR
-
893109-28001-00 OIL SEALOIL SEAL
-
91TP-2219X-00-00 COVERCOVER
-
101TP-22311-00-00 CASE, CHAINCASE, CHAIN
-
1190111-06127-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
121TP-22312-00-00 CASE, CHAIN 2CASE, CHAIN 2
-
1390387-06048-00 COLLARCOLLAR
-
141TP-21668-00-00 LABEL, TIRELABEL, TIRE
-
152DX-22210-01-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
162DX-22220-01-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
1790201-10074-00 WASHER, PLATEWASHER, PLATE
-
1890176-10073-00 NUT, CROWNNUT, CROWN
-
1990201-08119-00 WASHER, PLATEWASHER, PLATE
-
2090149-08054-00 SCREWSCREW
