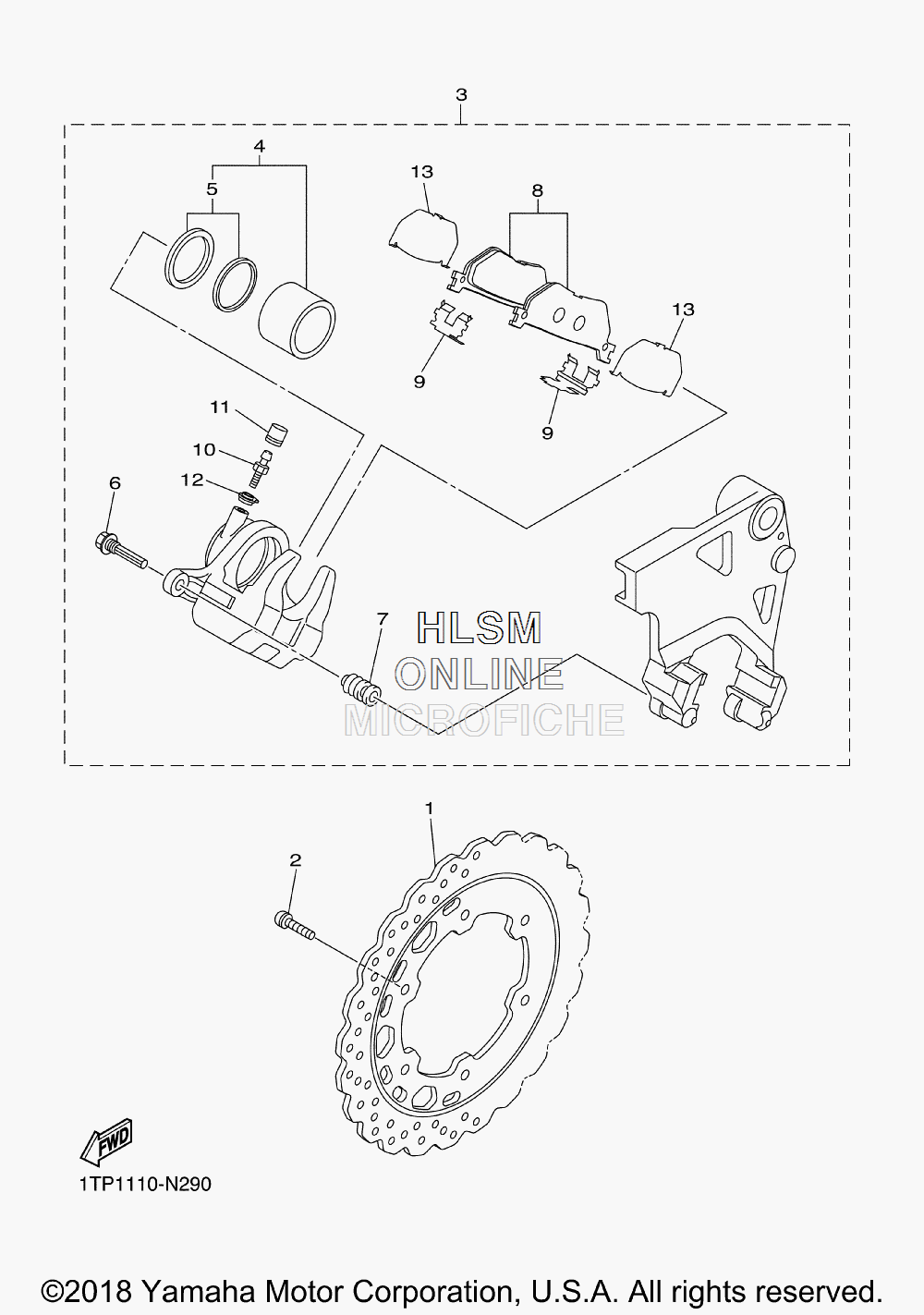

BRAKE - REAR CALIPER для Yamaha BOLT R SPEC - 2018 года выпуска`
-
№АртикулНазвание
-
11TP-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290109-083G4-00 BOLTBOLT
-
31TP-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
41D7-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
55JW-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
63P6-25914-00-00 ...PIN, SLIDE...PIN, SLIDE
-
74TT-25937-00-00 ...BOOT 2...BOOT 2
-
81D7-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
91D7-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
105GM-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
111D7-25825-00-00 ...CAP...CAP
-
125GM-25975-00-00 ...RUBBER, BUSHING...RUBBER, BUSHING
-
135GJ-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
