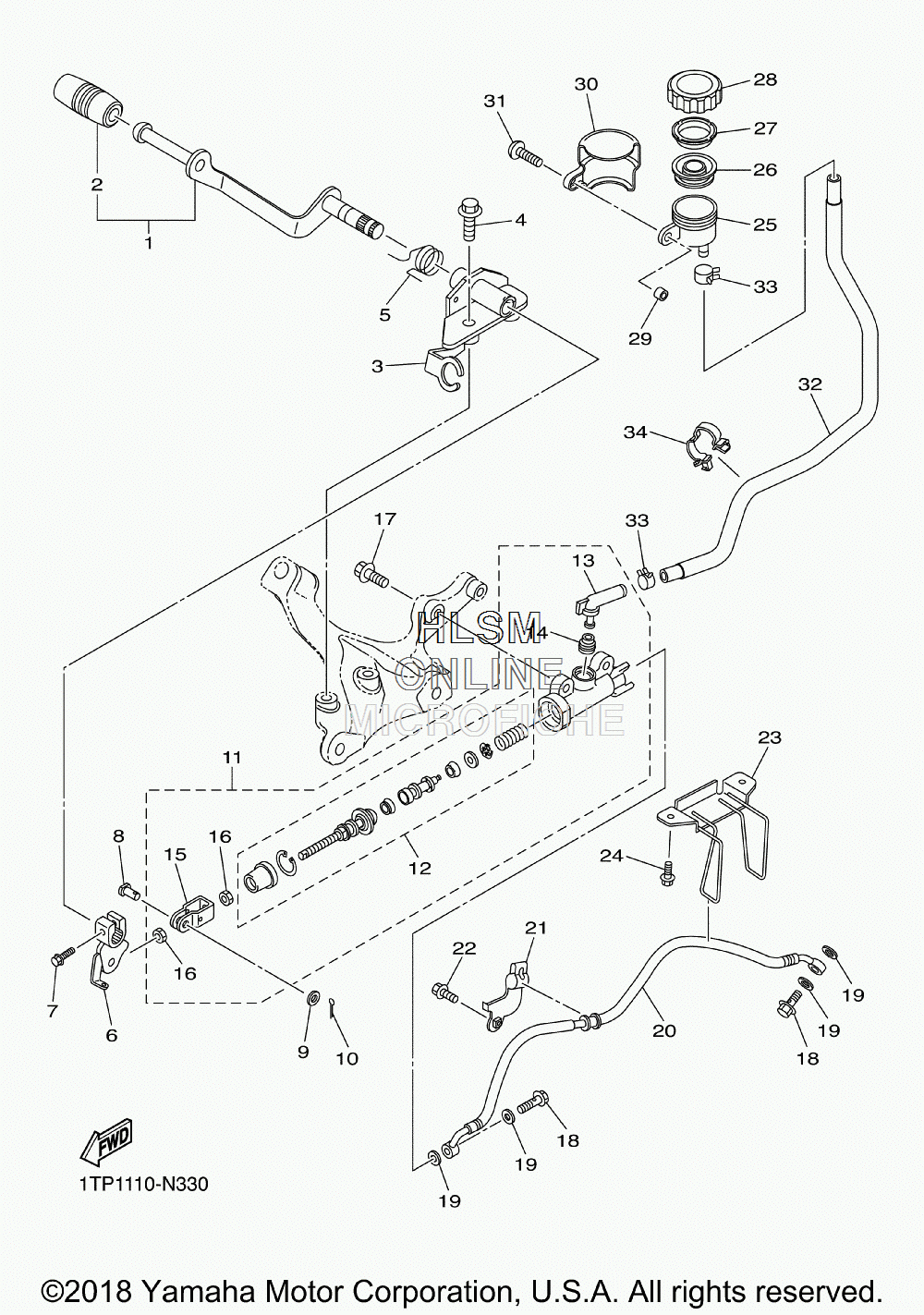

BRAKE - REAR MASTER CYLINDER для Yamaha BOLT R SPEC - 2018 года выпуска`
-
№АртикулНазвание
-
11TP-27200-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
25VN-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
31TP-27243-00-00 BOSS, BRAKE PEDALBOSS, BRAKE PEDAL
-
495027-08035-00 BOLT, FLANGEBOLT, FLANGE
-
51TP-27216-00-00 SPRING, RETURNSPRING, RETURN
-
61TP-27262-00-00 LEVERLEVER
-
797002-06020-00 BOLTBOLT
-
890240-08124-00 PIN, CLEVISPIN, CLEVIS
-
990201-08083-00 WASHER, PLATEWASHER, PLATE
-
1091401-20012-00 PIN, COTTERPIN, COTTER
-
111TP-2583V-00-00 REAR MASTER CYLINDER ASSY.REAR MASTER CYLINDER ASSY.
-
121TP-25808-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
134BP-2582A-00-00 ...JOINT...JOINT
-
144BP-2585F-01-00 ...O-RING...O-RING
-
154BP-27222-02-00 ...JOINT...JOINT
-
1690170-08010-00 ...NUT...NUT
-
1795027-08030-00 BOLT, FLANGEBOLT, FLANGE
-
1890401-10020-00 BOLT, UNIONBOLT, UNION
-
1990430-10005-00 GASKETGASKET
-
201TP-2581J-01-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
211TP-2588F-00-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
2295022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
231TP-2587A-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
2495022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2531A-25894-10-00 TANK, RESERVOIRTANK, RESERVOIR
-
26360-25854-01-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
272GU-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
282KF-25852-50-00 CAP, RESERVOIRCAP, RESERVOIR
-
2990387-06072-00 COLLARCOLLAR
-
304NK-25888-00-00 COVER, RESERVOIR TANKCOVER, RESERVOIR TANK
-
3190111-06028-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
321TP-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
3390467-14057-00 CLIPCLIP
-
3490464-23239-00 CLAMPCLAMP
