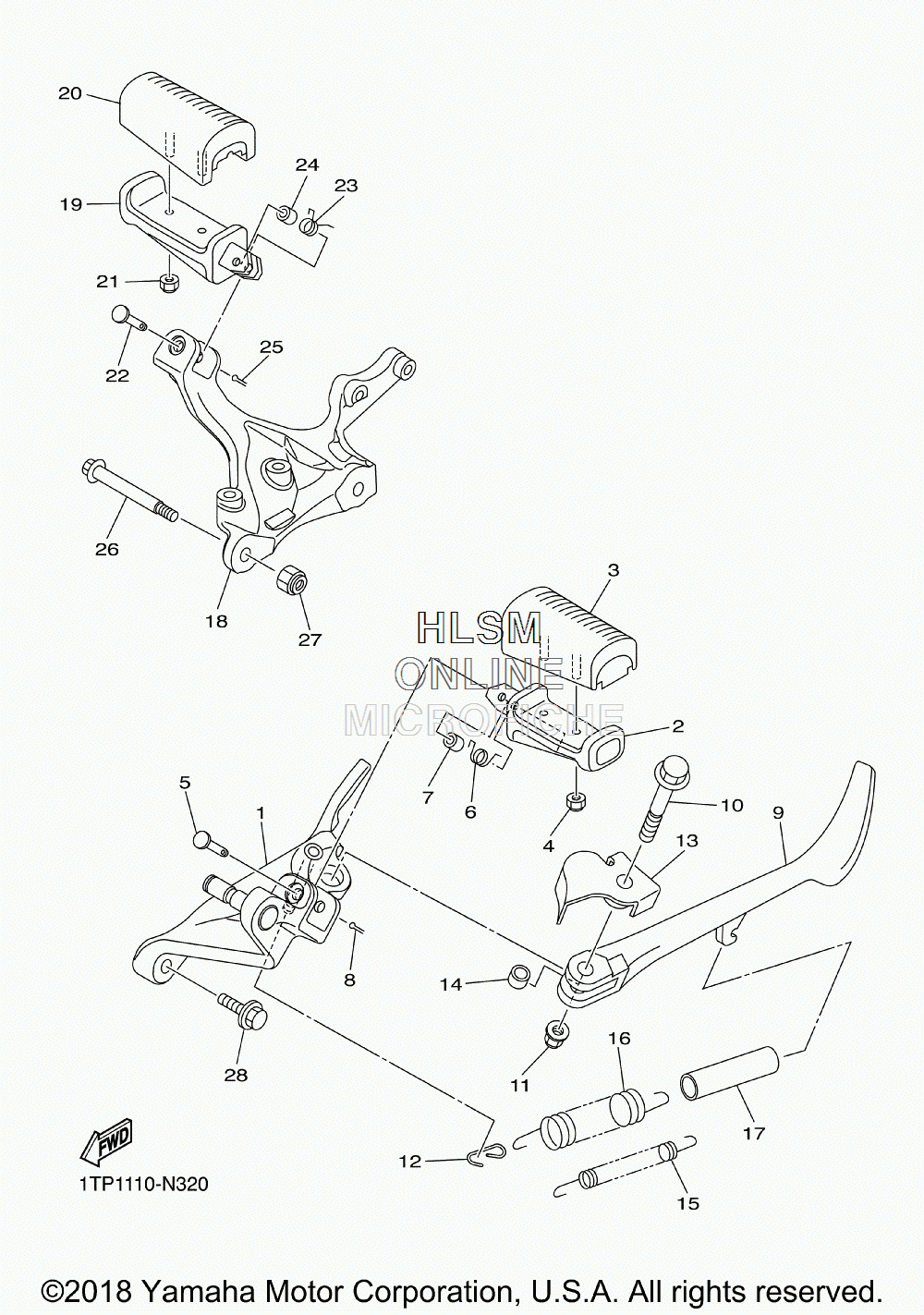

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha BOLT R SPEC - 2018 года выпуска`
-
№АртикулНазвание
-
11TP-27411-00-00 FOOTREST 1FOOTREST 1
-
21TP-27451-00-00 FOOTRESTFOOTREST
-
34VR-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
495607-06100-00 NUT, UNUT, U
-
590240-08145-00 PIN, CLEVISPIN, CLEVIS
-
690508-18054-00 SPRING, TORSIONSPRING, TORSION
-
790387-087K5-00 COLLARCOLLAR
-
891401-25015-00 PIN, COTTERPIN, COTTER
-
91TP-27311-00-00 STAND, SIDESTAND, SIDE
-
1090105-10426-00 BOLT, FLANGEBOLT, FLANGE
-
1190185-10008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
121TP-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
131TP-27322-00-00 WASHERWASHER
-
1490387-10020-00 COLLARCOLLAR
-
1590506-23015-00 SPRING, TENSIONSPRING, TENSION
-
1690506-29006-00 SPRING, TENSIONSPRING, TENSION
-
1790445-16641-00 HOSE (L60)HOSE (L60)
-
181TP-27421-00-00 FOOTREST 2FOOTREST 2
-
191TP-27461-00-00 FOOTRESTFOOTREST
-
204VR-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
2195607-06100-00 NUT, UNUT, U
-
2290240-08145-00 PIN, CLEVISPIN, CLEVIS
-
2390508-18054-00 SPRING, TORSIONSPRING, TORSION
-
2490387-087K5-00 COLLARCOLLAR
-
2591401-25015-00 PIN, COTTERPIN, COTTER
-
2690105-10364-00 BOLT, FLANGEBOLT, FLANGE
-
2790185-10008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2890105-10424-00 BOLT, FLANGEBOLT, FLANGE
