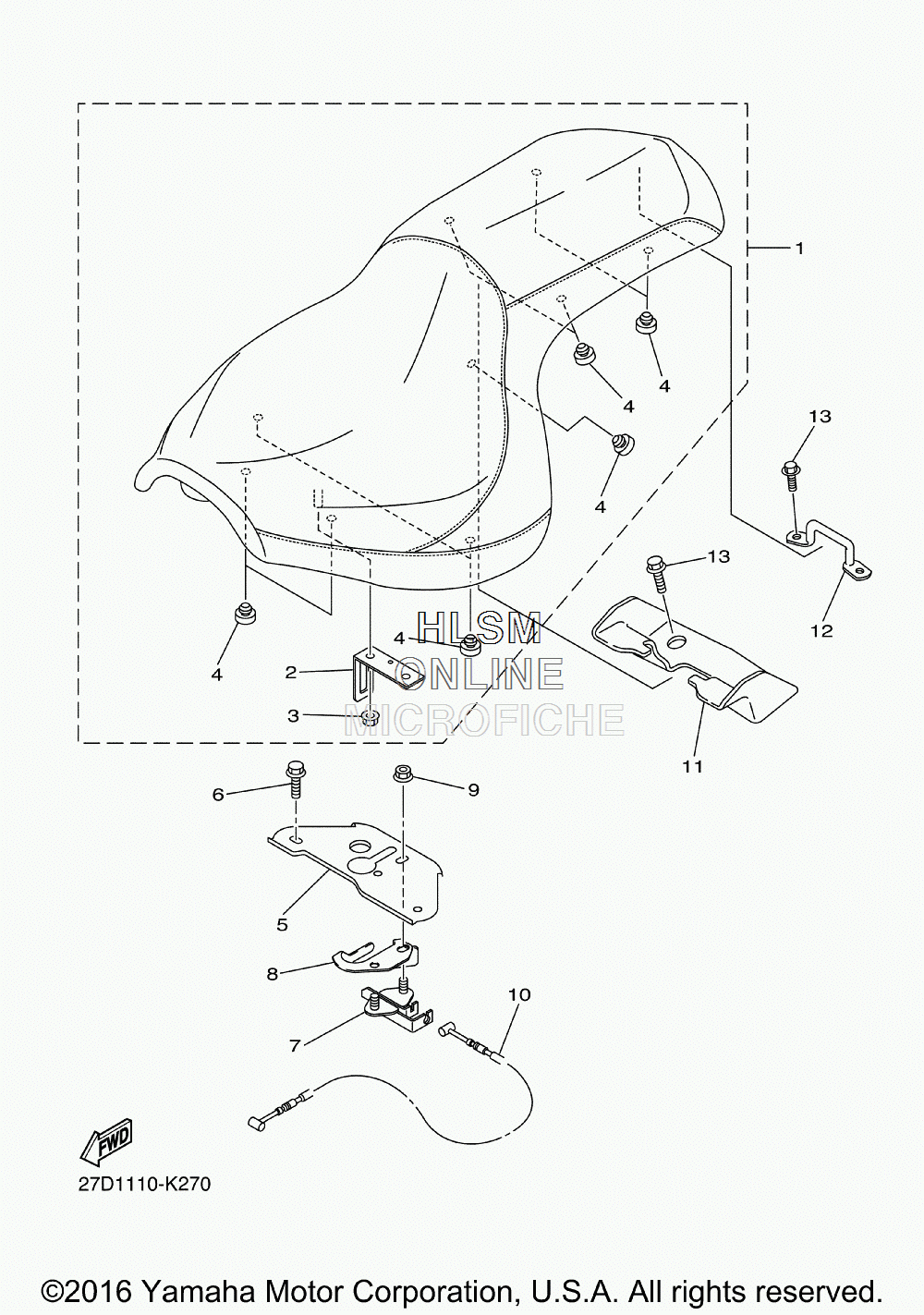

SEAT для Yamaha STRYKER - 2017 года выпуска
-
№АртикулНазвание
-
127D-24730-00-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
24NK-24728-00-00 ...BRACKET, SEAT...BRACKET, SEAT
-
395602-06200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
422W-24741-00-00 ...PAD, SEAT...PAD, SEAT
-
53D8-21341-10-00 BRACKET, SEAT 1BRACKET, SEAT 1
-
695802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
74BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
827D-24792-00-00 PLATEPLATE
-
995702-06500-00 NUT, FLANGENUT, FLANGE
-
105PX-2478E-00-00 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1127D-2475N-00-00 BRACKETBRACKET
-
121D7-2475R-00-00 BRACKET 6BRACKET 6
-
1395022-08012-00 BOLT, FLANGEBOLT, FLANGE
