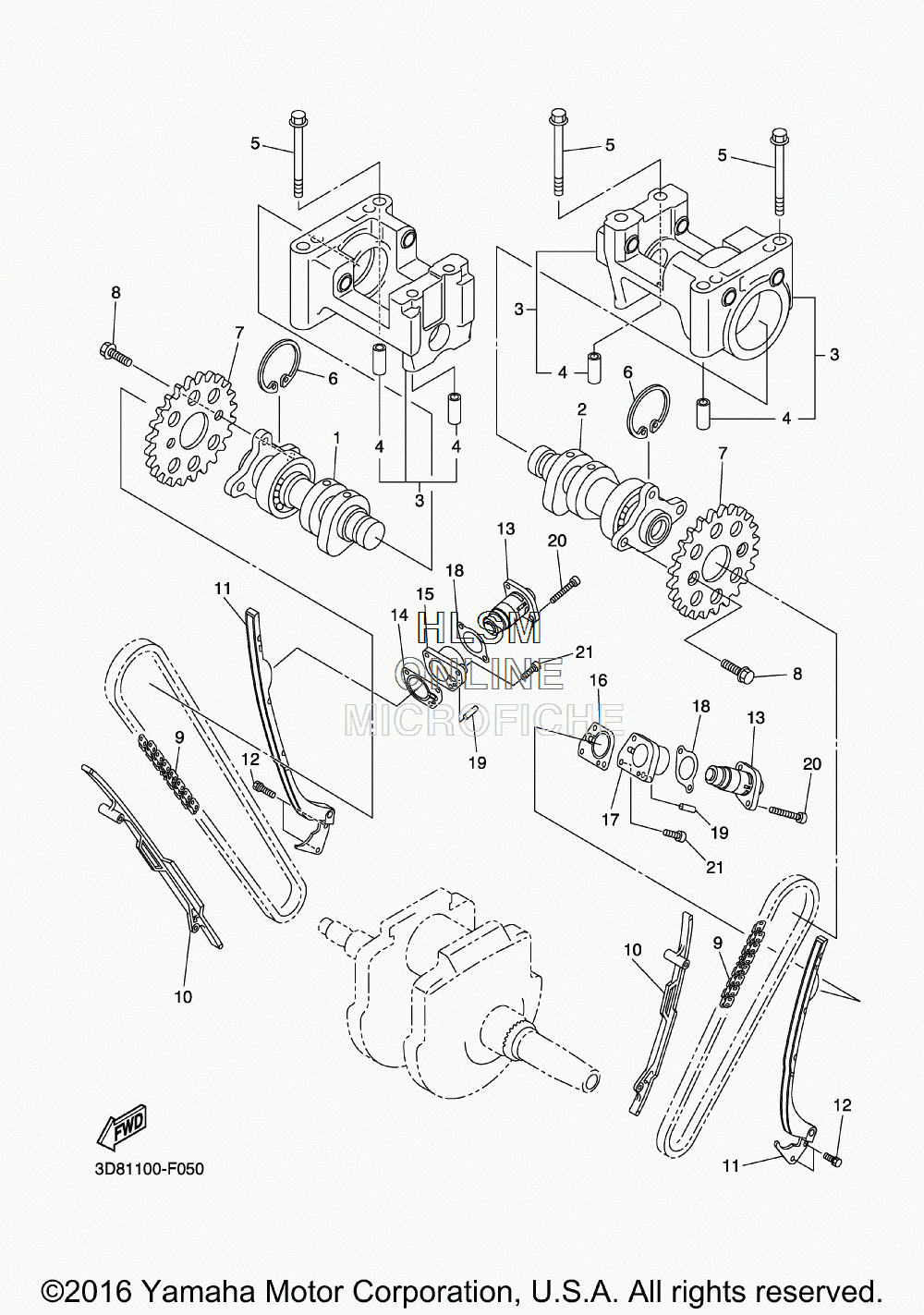

CAMSHAFT W/ CHAIN для Yamaha STRYKER - 2017 года выпуска`
-
№АртикулНазвание
-
13D8-12170-10-00 CAMSHAFT ASSY 1CAMSHAFT ASSY 1
-
23D8-12180-10-00 CAMSHAFT ASSY 2CAMSHAFT ASSY 2
-
33D8-12194-00-00 CARRIER, CAMSHAFT 1CARRIER, CAMSHAFT 1
-
491808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
590105-06362-00 BOLT, FLANGEBOLT, FLANGE
-
699009-52500-00 CIRCLIPCIRCLIP
-
73D8-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
890105-07004-00 BOLT, FLANGEBOLT, FLANGE
-
994591-57132-00 CHAINCHAIN
-
103D8-12231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
113D8-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
1290119-06173-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
133D8-12210-10-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
143D8-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1527D-11445-00-00 SPACERSPACER
-
163D8-12214-00-00 GASKETGASKET
-
1727D-11485-00-00 SPACERSPACER
-
183D8-11195-00-00 GASKETGASKET
-
1993603-09106-00 PIN, DOWELPIN, DOWEL
-
2091312-06045-00 BOLTBOLT
-
2191312-06035-00 BOLTBOLT
