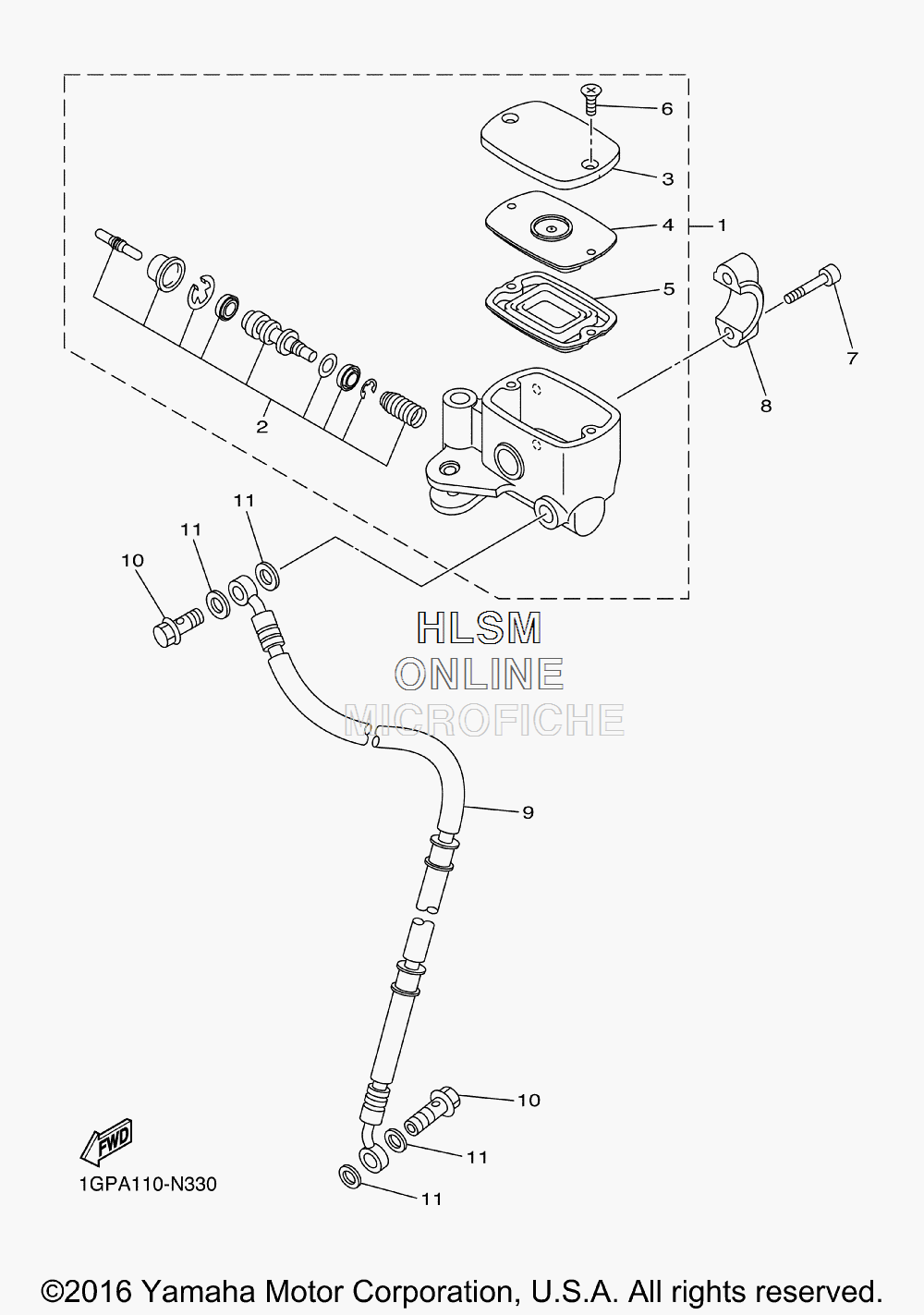

BRAKE - FRONT MASTER CYLINDER для Yamaha STRYKER - 2017 года выпуска`
-
№АртикулНазвание
-
127D-W2587-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
24B5-W0041-10-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
34B5-25852-00-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
44B5-25855-00-00 ......BUSH, DIAPHRAGM......BUSH, DIAPHRAGM
-
54B5-25854-00-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
65VS-2589H-00-00 ...SCREW...SCREW
-
75VS-26332-00-00 BOLTBOLT
-
83D8-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
927D-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
1090401-10020-00 BOLT, UNIONBOLT, UNION
-
1190430-10005-00 GASKETGASKET
