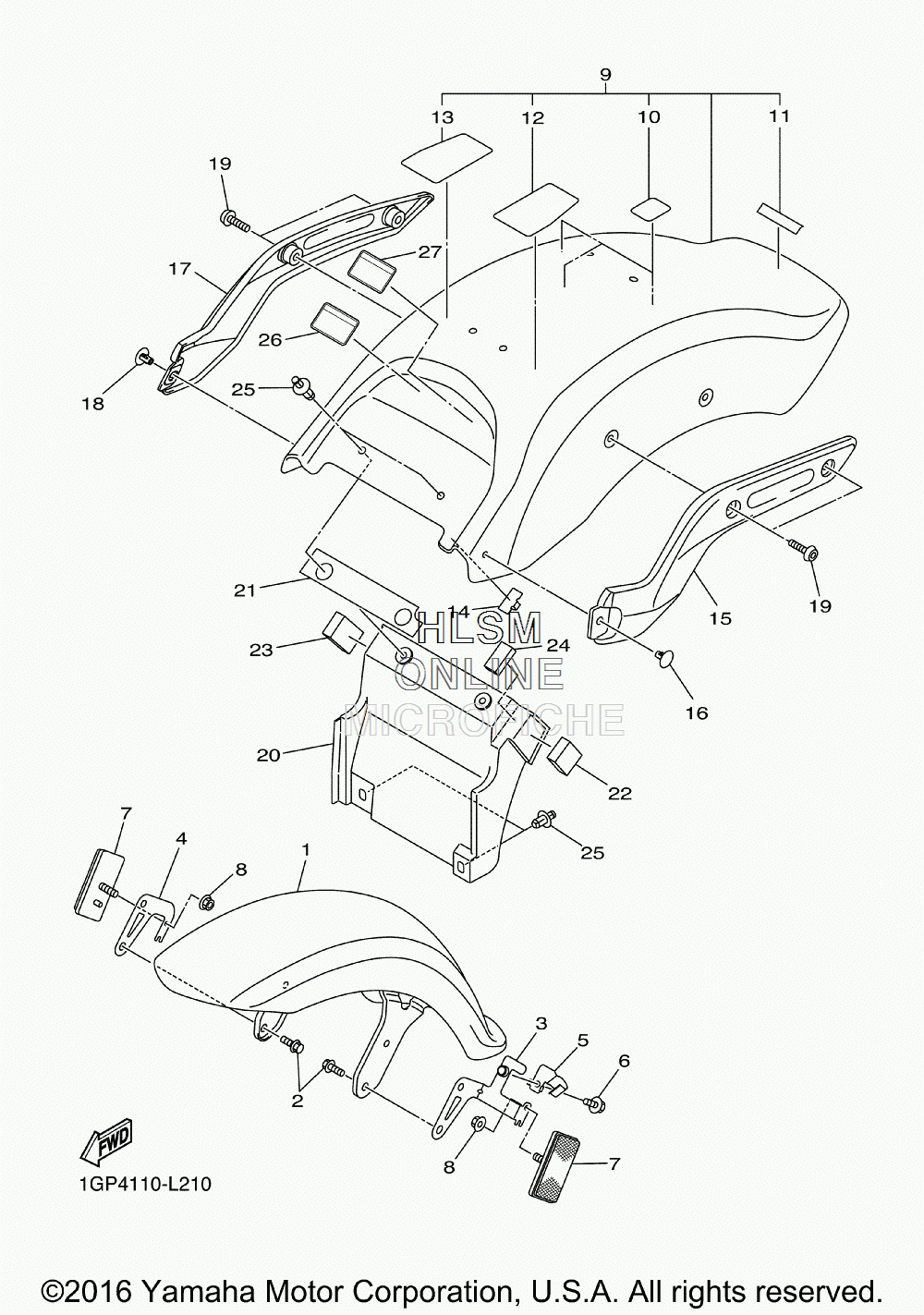

FENDER - FRONT / REAR для Yamaha STRYKER - 2017 года выпуска`
-
№АртикулНазвание
-
127D-21510-01-P0 FRONT FENDER COMP. (SMX - BLACK METALLIC)FRONT FENDER COMP. (SMX - BLACK METALLIC)
-
295827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
327D-21587-00-00 STAY 1STAY 1
-
427D-21588-00-00 STAY 2STAY 2
-
527D-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
695027-06010-00 BOLT, FLANGEBOLT, FLANGE
-
711H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
895707-05500-00 NUT, FLANGENUT, FLANGE
-
927D-W2161-00-P0 REAR FENDER COMP. (SMX - BLACK METALLIC)REAR FENDER COMP. (SMX - BLACK METALLIC)
-
105PX-21669-01-00 ...SEAL...SEAL
-
111D6-2153E-00-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
1227D-216A2-00-00 ...SEAL, 2...SEAL, 2
-
1327D-216A3-00-00 ...SEAL, 3...SEAL, 3
-
1490465-04020-00 CLAMPCLAMP
-
1527D-2164F-10-00 STAY 1STAY 1
-
1690269-05074-00 RIVETRIVET
-
1727D-2164G-10-00 STAY 2STAY 2
-
1890269-05074-00 RIVETRIVET
-
1990111-08033-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2027D-21629-00-00 GUARD, MUDGUARD, MUD
-
213D8-21638-00-00 DAMPER 1DAMPER 1
-
2290520-13001-00 DAMPER, PLATEDAMPER, PLATE
-
2390520-13002-00 DAMPER, PLATEDAMPER, PLATE
-
247CF-22869-00-00 MOLEMOLE
-
2590269-07077-00 RIVETRIVET
-
265RU-21686-00-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
-
2734B-21684-00-00 PLATE, ROUTING (CALIF ONLY)PLATE, ROUTING (CALIF ONLY)
