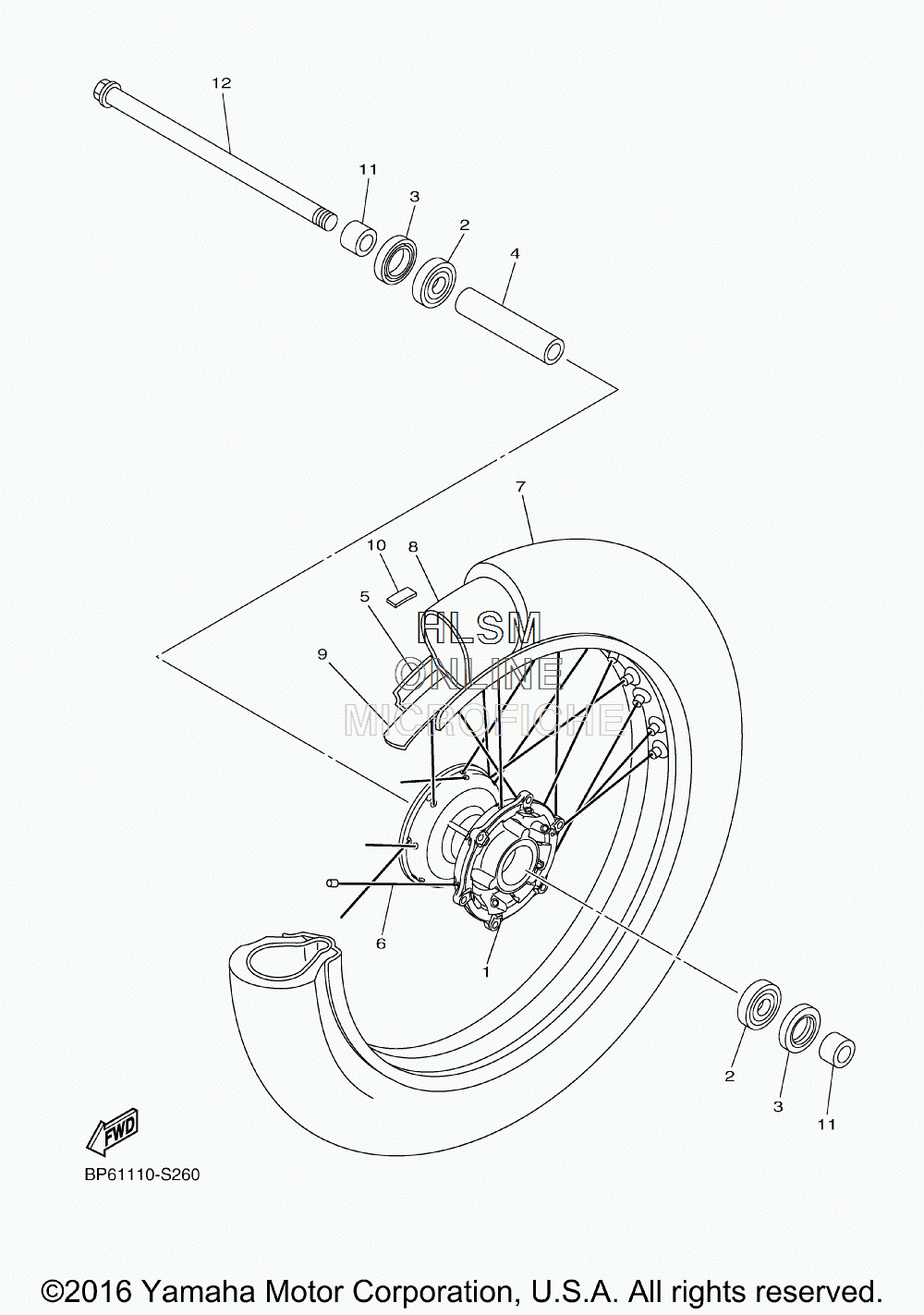

WHEEL - FRONT для Yamaha BOLT - 2017 года выпуска`
-
№АртикулНазвание
-
1BP6-25111-00-00 HUB, FRONTHUB, FRONT
-
293306-30317-00 BEARINGBEARING
-
393102-28022-00 OIL SEALOIL SEAL
-
490387-172A5-00 COLLARCOLLAR
-
594425-19007-00 RIM (2.50-19)RIM (2.50-19)
-
6BP6-25104-00-00 SPOKE SET, FRONTSPOKE SET, FRONT
-
794110-19039-00 TIRE (BRIDGESTONE)TIRE (BRIDGESTONE)
-
894210-19222-00 TUBE (100/90-19 M/C TR4) (BRIDGESTONE)TUBE (100/90-19 M/C TR4) (BRIDGESTONE)
-
994321-19157-00 BAND, RIM (2.15-19) (BRIDGESTONE)BAND, RIM (2.15-19) (BRIDGESTONE)
-
102CR-25398-00-00 BALANCER, WHEEL (5G)BALANCER, WHEEL (5G)
-
1190387-173R6-00 COLLARCOLLAR
-
123MA-25181-10-00 AXLE, WHEELAXLE, WHEEL
