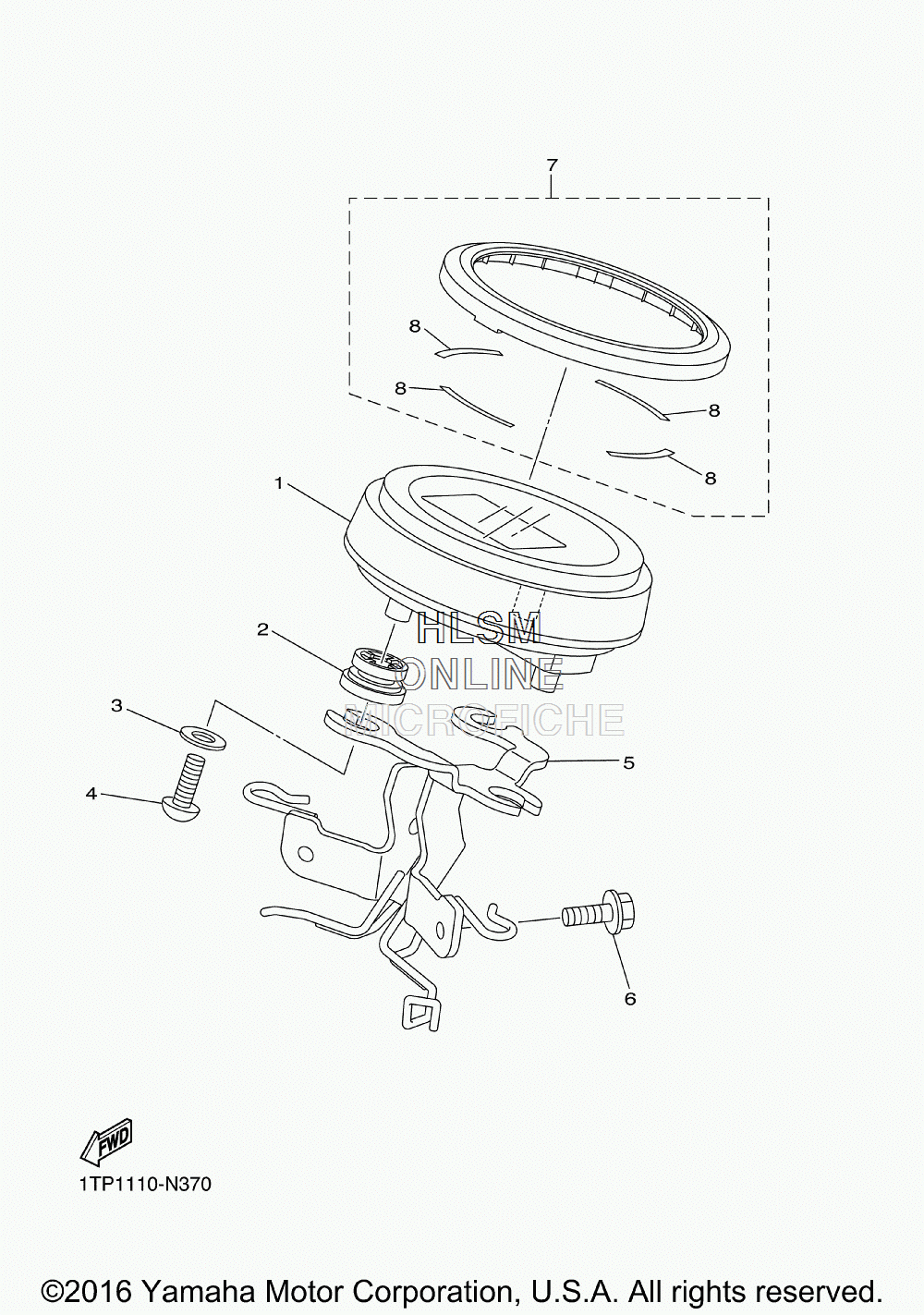

INSTRUMENT PANEL для Yamaha BOLT - 2017 года выпуска`
-
№АртикулНазвание
-
11TP-83500-01-00 METER ASSYMETER ASSY
-
21TP-83513-00-00 DAMPERDAMPER
-
390201-05033-00 WASHER, PLATEWASHER, PLATE
-
497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
51TP-83519-00-00 BRACKET, METERBRACKET, METER
-
690105-06136-00 BOLT, FLANGEBOLT, FLANGE
-
71TP-83559-00-00 COVER, METERCOVER, METER
-
81TP-8336V-00-00 ...SHEET...SHEET
