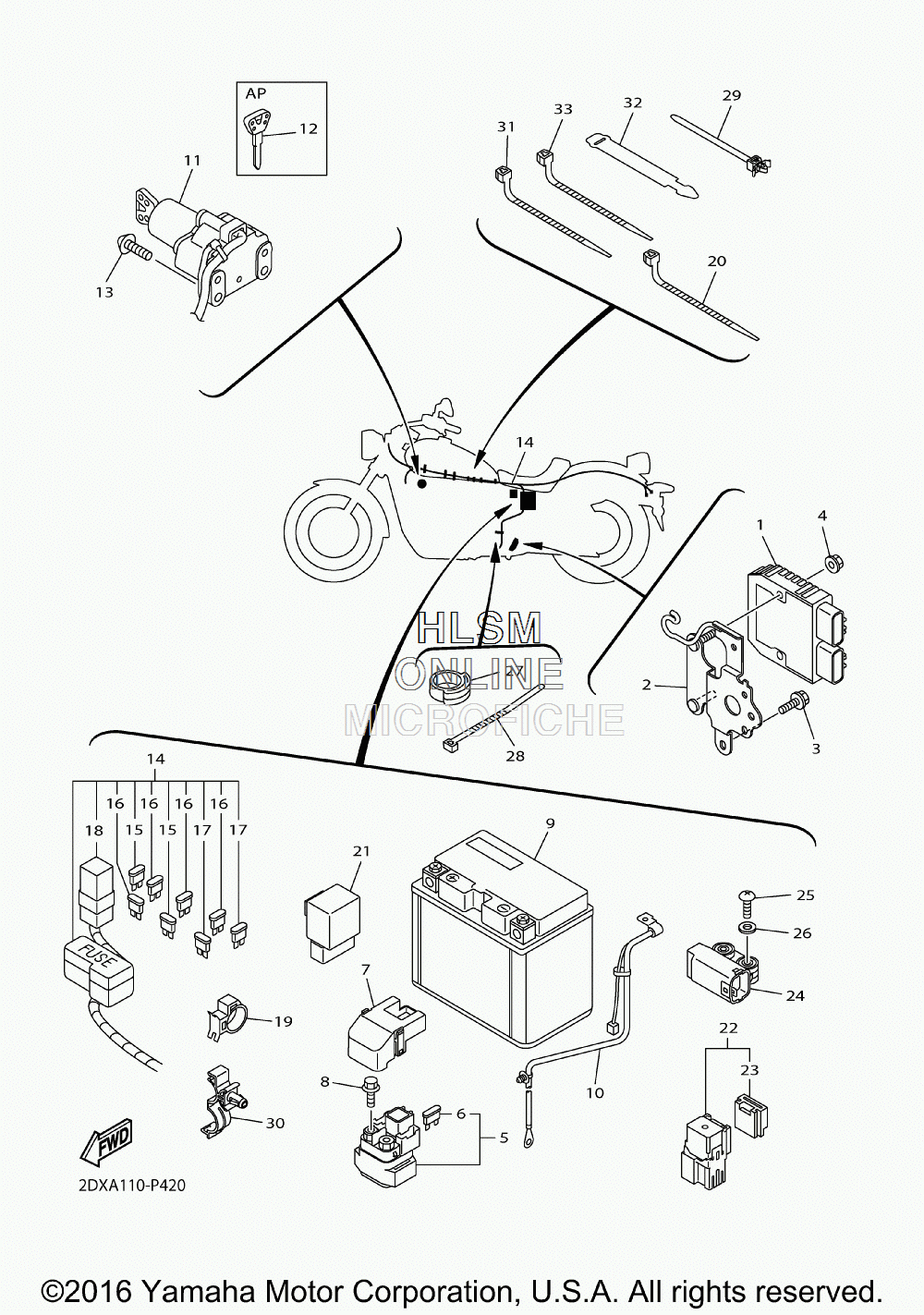

ELECTRICAL 2 для Yamaha BOLT - 2017 года выпуска`
-
№АртикулНазвание
-
11D7-81960-01-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
21TP-2128A-00-00 BRACKET, REGULATORBRACKET, REGULATOR
-
395827-06014-00 BOLT, FLANGEBOLT, FLANGE
-
495707-06500-00 NUT, FLANGENUT, FLANGE
-
55S7-81940-00-00 STARTER RELAY ASSY (RC19-089A)STARTER RELAY ASSY (RC19-089A)
-
642X-82151-00-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
75SL-82119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
895022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
92D1-82100-00-00 BATTERY ASSY (GS YUASA YTZ14S)BATTERY ASSY (GS YUASA YTZ14S)
-
101TP-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
111TP-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
124BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
1390149-06188-00 SCREWSCREW
-
14BP6-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
155JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
165JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
175JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
185PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
1990464-20191-00 CLAMPCLAMP
-
201UA-82591-00-00 BANDBAND
-
215VK-81950-30-00 RELAY ASSY (5VK-30)RELAY ASSY (5VK-30)
-
221TP-81950-00-00 RELAY ASSY (1TP-00)RELAY ASSY (1TP-00)
-
235EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
245VU-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
2590160-04009-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
2690201-04030-00 WASHER, PLATEWASHER, PLATE
-
2790464-13227-00 CLAMPCLAMP
-
2890464-36005-00 CLAMPCLAMP
-
2990464-14006-00 CLAMPCLAMP
-
3090464-16012-00 CLAMPCLAMP
-
3190464-15195-00 CLAMPCLAMP
-
321TP-82591-00-00 BANDBAND
-
3390464-15195-00 CLAMPCLAMP
