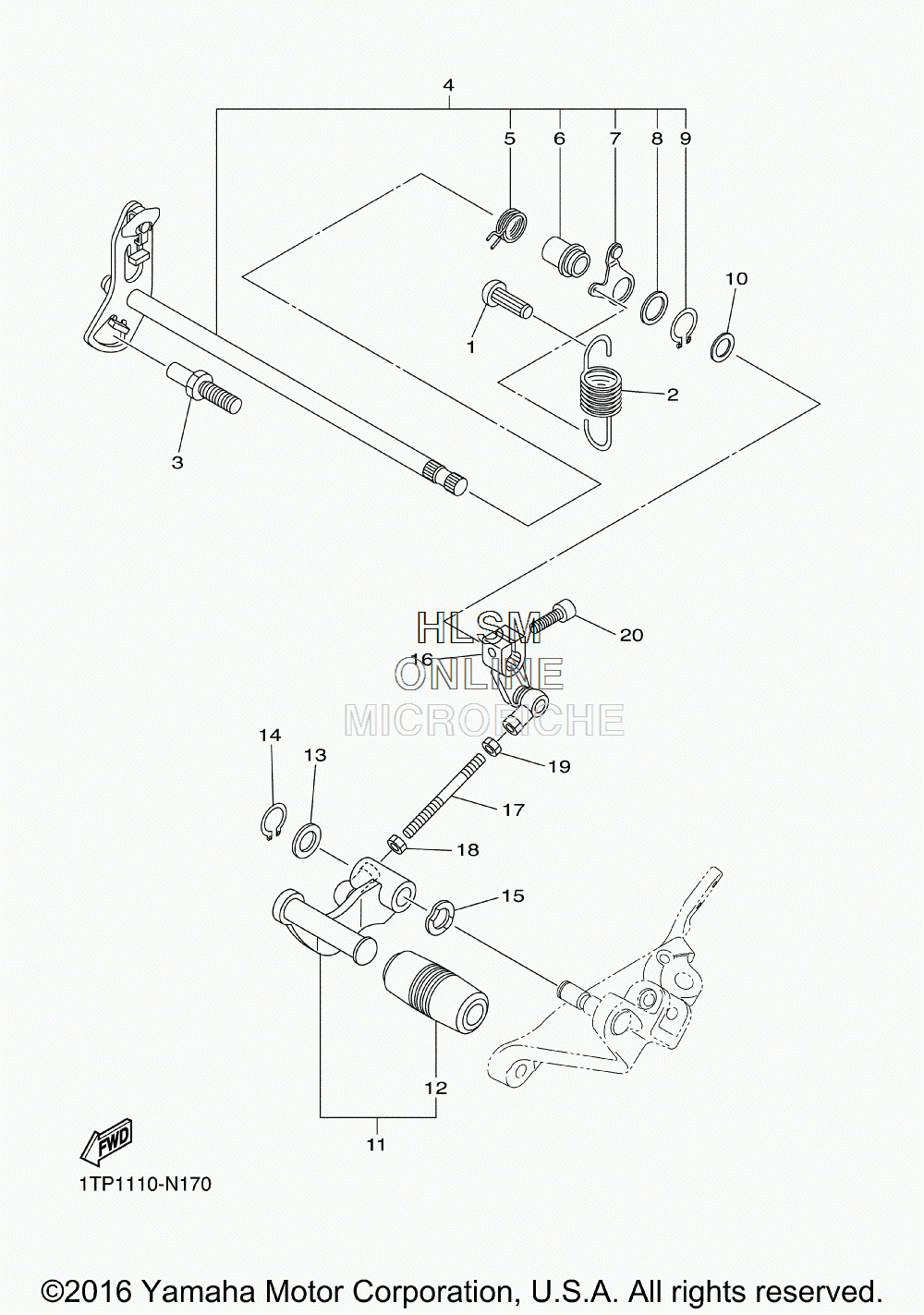

SHIFT SHAFT для Yamaha BOLT - 2017 года выпуска`
-
№АртикулНазвание
-
1132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
290506-18015-00 SPRING, TENSIONSPRING, TENSION
-
31D7-18127-00-00 STOPPER, SCREWSTOPPER, SCREW
-
43D8-18101-01-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
590508-32040-00 ...SPRING, TORSION...SPRING, TORSION
-
63D8-18175-00-00 ...SPACER...SPACER
-
73D8-18140-00-00 ...STOPPER LEVER ASSY...STOPPER LEVER ASSY
-
890201-177G4-00 ...WASHER, PLATE...WASHER, PLATE
-
999009-17400-00 ...CIRCLIP...CIRCLIP
-
1090201-127E1-00 WASHER, PLATEWASHER, PLATE
-
111TP-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
125VN-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
1390201-12688-00 WASHER, PLATEWASHER, PLATE
-
1499009-12400-00 CIRCLIPCIRCLIP
-
1590206-12074-00 WASHER, WAVEWASHER, WAVE
-
161TP-18112-00-00 ARM, SHIFTARM, SHIFT
-
171TP-18115-00-00 ROD, SHIFTROD, SHIFT
-
1890170-06024-00 NUTNUT
-
1995314-06600-00 NUTNUT
-
2091312-06020-00 BOLTBOLT
