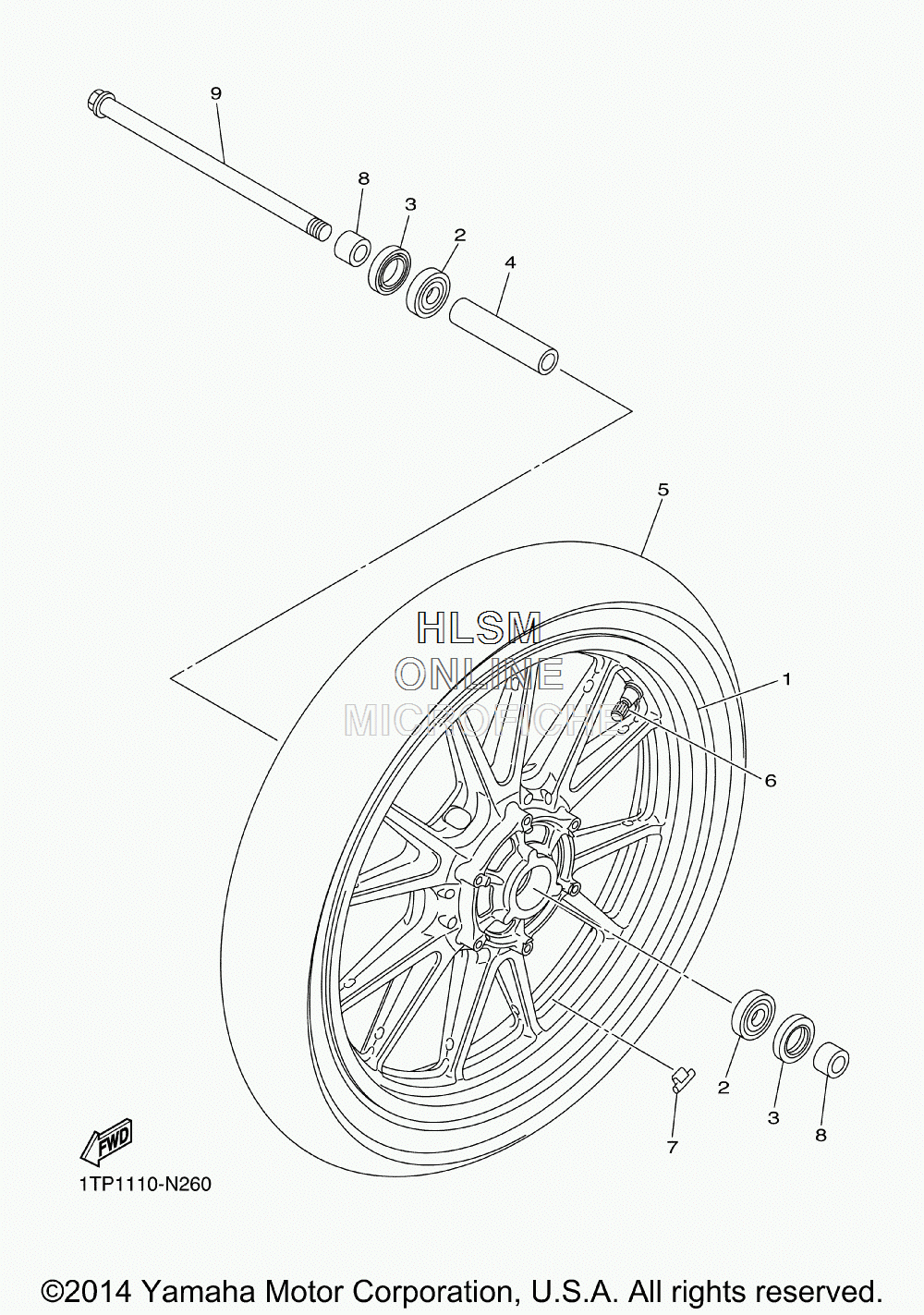

WHEEL - FRONT для Yamaha BOLT R SPEC - 2015 года выпуска`
-
№АртикулНазвание
-
11TP-25168-10-0X CAST WHEEL, FRONT (LGB/HTR - BLACK/RED)CAST WHEEL, FRONT (LGB/HTR - BLACK/RED)
-
11TP-25168-10-1X CAST WHEEL, FRONT (LGB/RW - BLACK/WHITE)CAST WHEEL, FRONT (LGB/RW - BLACK/WHITE)
-
293306-30317-00 BEARINGBEARING
-
393102-28022-00 OIL SEALOIL SEAL
-
490387-172A5-00 COLLARCOLLAR
-
594110-19025-00 TIRE (100/90-19 M/C 57H EXEDRA)TIRE (100/90-19 M/C 57H EXEDRA)
-
693900-00030-00 VALVE, RIM (TR412)VALVE, RIM (TR412)
-
75MT-25398-00-00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
75MT-25398-10-00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
75MT-25398-20-00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
890387-173R6-00 COLLARCOLLAR
-
93MA-25181-10-00 AXLE, WHEELAXLE, WHEEL
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- CAMSHAFT W/ CHAIN
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER
- CYLINDER HEAD
- ELECTRICAL
- ELECTRICAL 2
- EXHAUST
- FENDER - FRONT / REAR
- FLASHER LIGHT
- FRAME
- FUEL TANK
- GENERATOR
- HANDLEBAR W/ CABLES
- HANDLEBAR W/ SWITCHES - LEVERS
- HEADLIGHT
- INSTRUMENT PANEL
- MODEL INFO
- OIL CLEANER
- OIL PUMP
- SEAT
- SHIFT CAM W/ FORK
- SHIFT SHAFT
- SIDE COVER
- STAND W/ FOOTREST - BRAKE PEDAL
- STARTER
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR ARM
- TAILLIGHT
- THROTTLE BODY ASSY.
- TRANSMISSION
- VALVE
- • WHEEL - FRONT
- WHEEL - REAR
