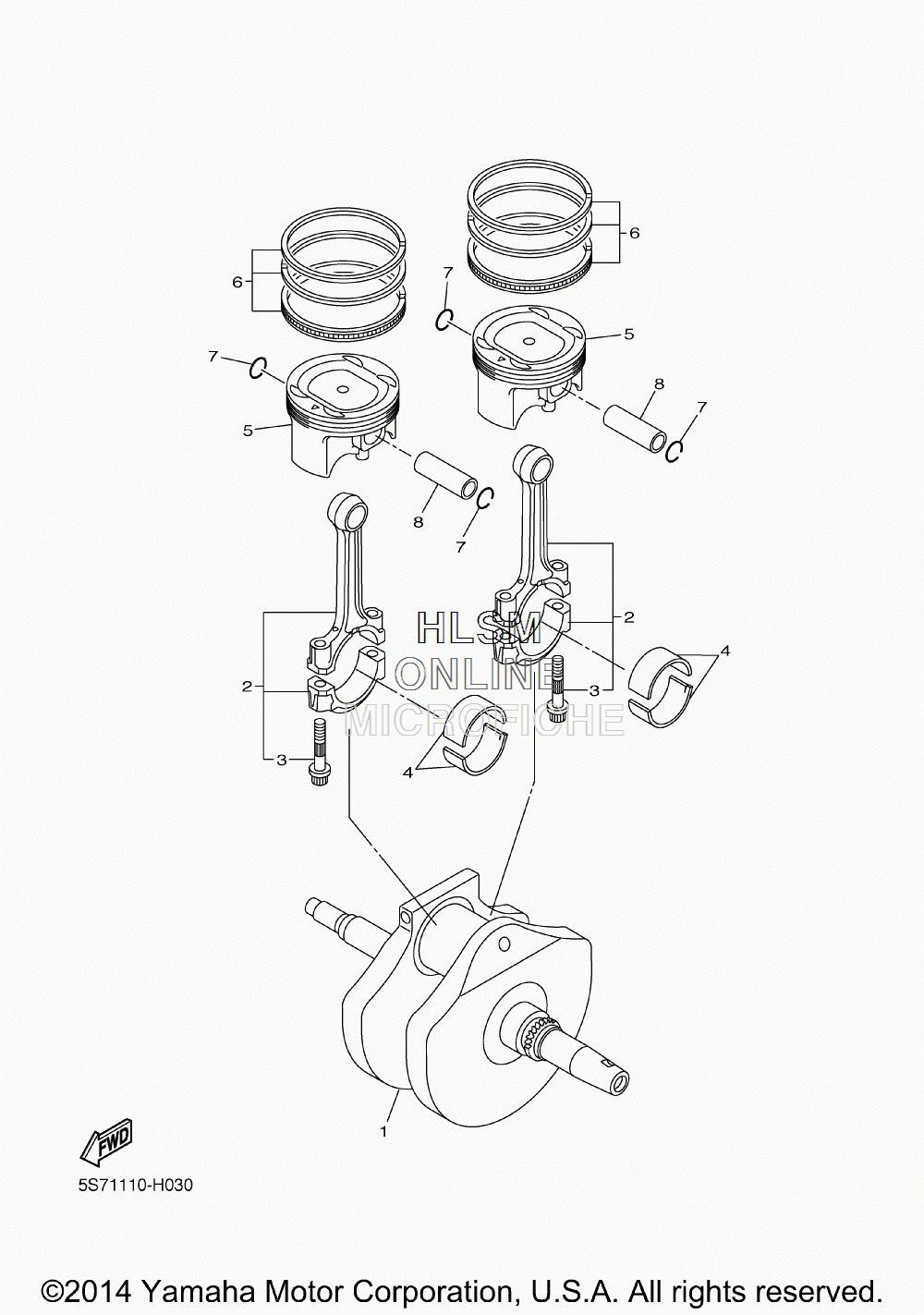

CRANKSHAFT - PISTON для Yamaha BOLT R SPEC - 2015 года выпуска`
-
№АртикулНазвание
-
15S7-11411-00-00 CRANKSHAFTCRANKSHAFT
-
25S7-11650-00-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
35YU-11654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
45YU-11656-10-00 PLANE BEARING, CONNECTING ROD (OPT) (BLACK)PLANE BEARING, CONNECTING ROD (OPT) (BLACK)
-
45YU-11656-20-00 PLANE BEARING, CONNECTING ROD (OPT) (BROWN)PLANE BEARING, CONNECTING ROD (OPT) (BROWN)
-
45YU-11656-30-00 PLANE BEARING, CONNECTING ROD (OPT) (GREEN)PLANE BEARING, CONNECTING ROD (OPT) (GREEN)
-
55S7-11631-01-00 PISTON (STD)PISTON (STD)
-
65S7-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
793450-22146-00 CIRCLIPCIRCLIP
-
85PS-11633-00-00 PIN, PISTONPIN, PISTON
