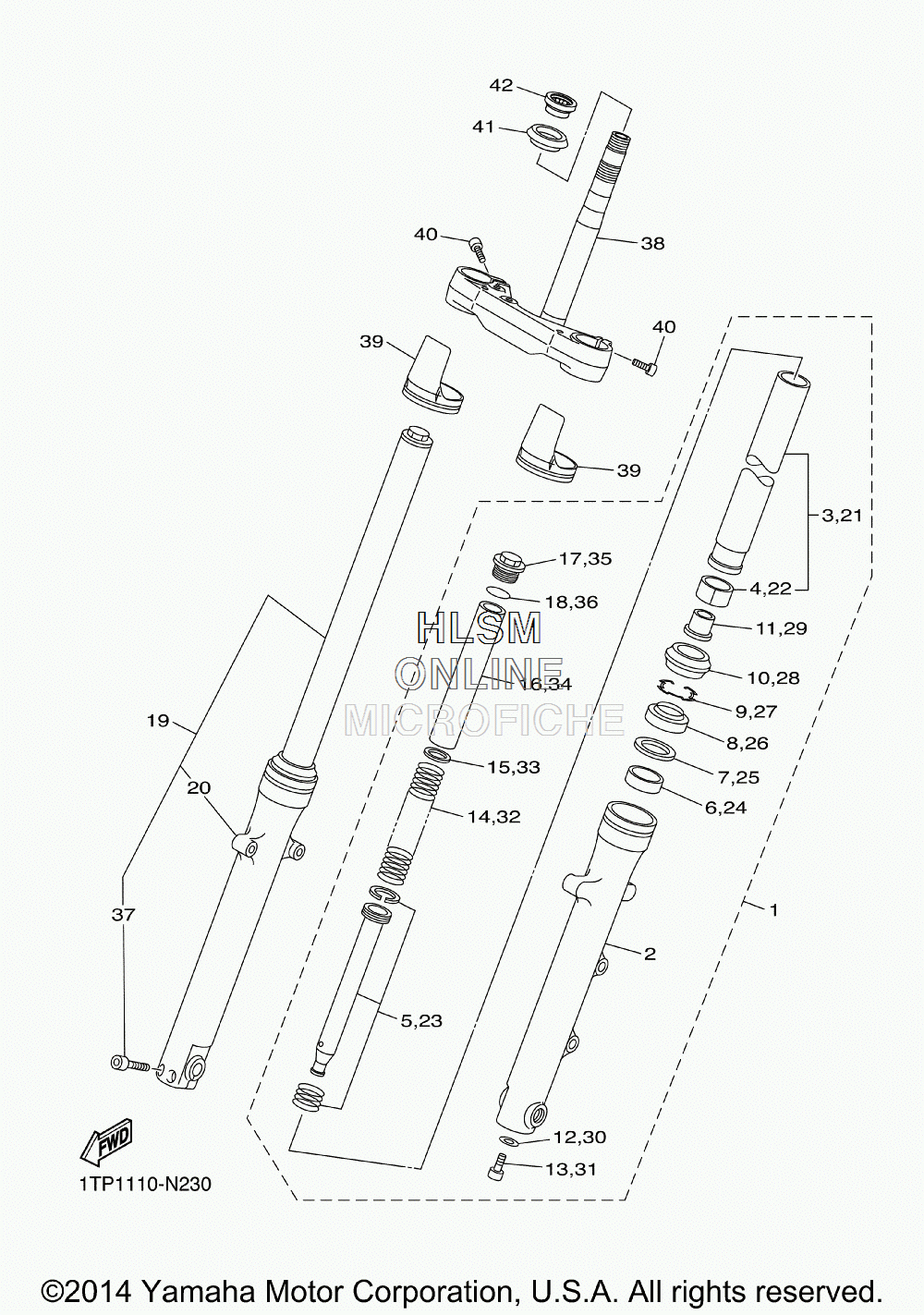

SUSPENSION - FRONT FORK для Yamaha BOLT R SPEC - 2015 года выпуска`
-
№АртикулНазвание
-
11TP-23102-00-00 FRONT FORK ASSY (LEFT HAD)FRONT FORK ASSY (LEFT HAD)
-
21TP-23126-00-00 ...TUBE, OUTER (LEFT HAD)...TUBE, OUTER (LEFT HAD)
-
31TP-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
44FM-23171-40-00 ......METAL, SLIDE......METAL, SLIDE
-
51TP-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
64FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
71TP-23146-00-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
84EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
91TP-23156-00-00 ...RING, SNAP...RING, SNAP
-
104EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
111TP-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
121TP-23158-00-00 ...GASKET...GASKET
-
131TP-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
141TP-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
151TP-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
161TP-23118-00-00 ...SPACER...SPACER
-
171TP-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
181TP-23188-00-00 ...O-RING...O-RING
-
191TP-23103-00-00 FRONT FORK ASSY (RIGHT HAND)FRONT FORK ASSY (RIGHT HAND)
-
201TP-23136-00-00 ...TUBE, OUTER (RIGHT HAND)...TUBE, OUTER (RIGHT HAND)
-
211TP-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
224FM-23171-40-00 ......METAL, SLIDE......METAL, SLIDE
-
231TP-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
244FM-23125-40-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
251TP-23146-00-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
264EB-23145-01-00 ...OIL SEAL...OIL SEAL
-
271TP-23156-00-00 ...RING, SNAP...RING, SNAP
-
284EB-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
291TP-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
301TP-23158-00-00 ...GASKET...GASKET
-
311TP-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
321TP-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
331TP-23149-00-00 ...WASHER, SPRING UPPER...WASHER, SPRING UPPER
-
341TP-23118-00-00 ...SPACER...SPACER
-
351TP-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
361TP-23188-00-00 ...O-RING...O-RING
-
371TP-2311H-00-00 ...FORK BOLT...FORK BOLT
-
381TP-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
394PU-2331G-00-00 COVERCOVER
-
4091314-10020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
413FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
4293399-99932-00 BEARINGBEARING
