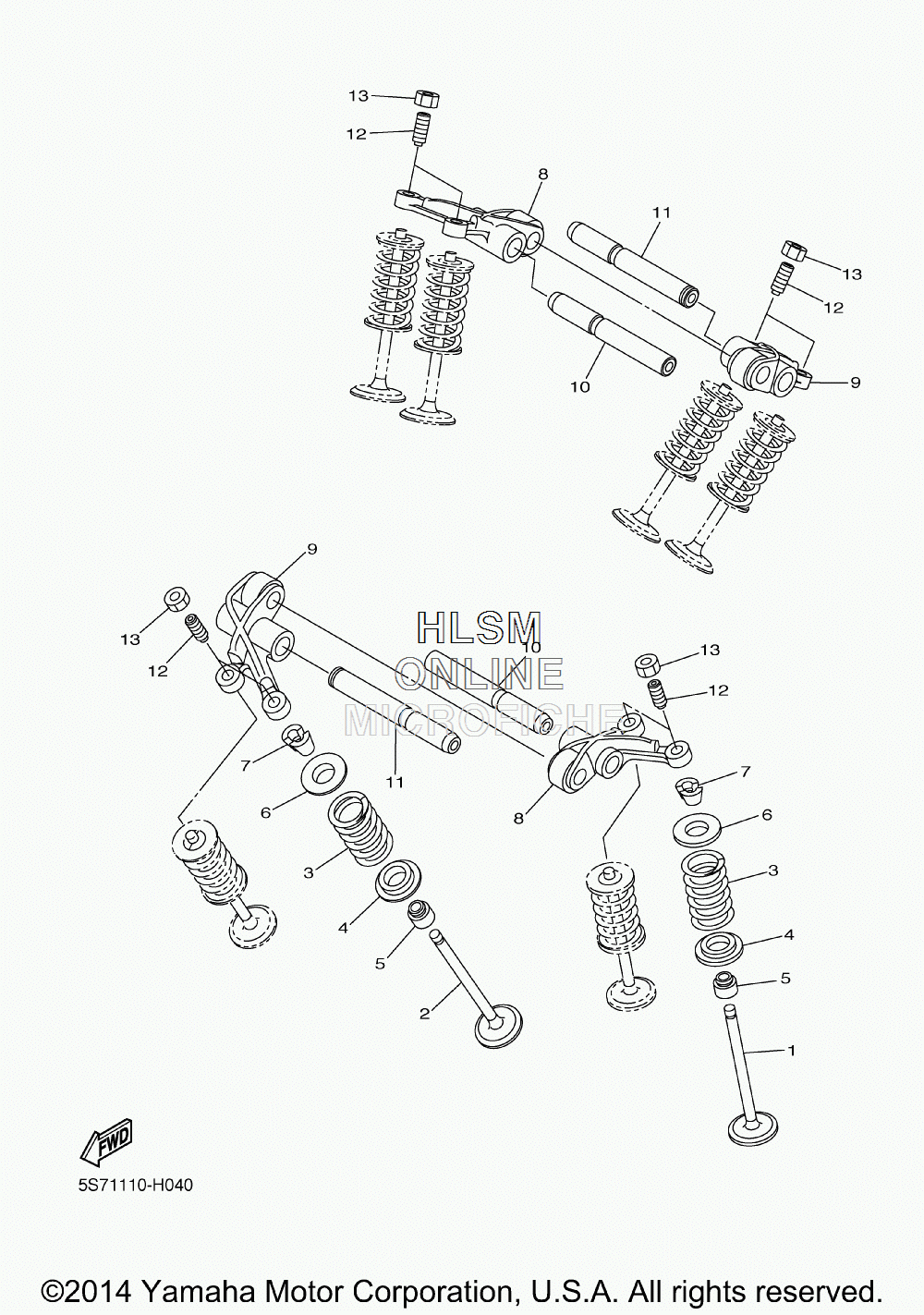

VALVE для Yamaha BOLT R SPEC - 2015 года выпуска`
-
№АртикулНазвание
-
15S7-12111-00-00 VALVE, INTAKEVALVE, INTAKE
-
25S7-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
35S7-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
43YF-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
55H0-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
63YF-12117-01-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
74G0-12118-00-00 COTTER, VALVECOTTER, VALVE
-
85S7-12151-00-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
95S7-12161-00-00 ARM, VALVE ROCKER 2ARM, VALVE ROCKER 2
-
105S7-12146-00-00 SHAFT, ROCKERSHAFT, ROCKER
-
115S7-12156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
124X7-12159-00-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
1390170-08173-00 NUTNUT
