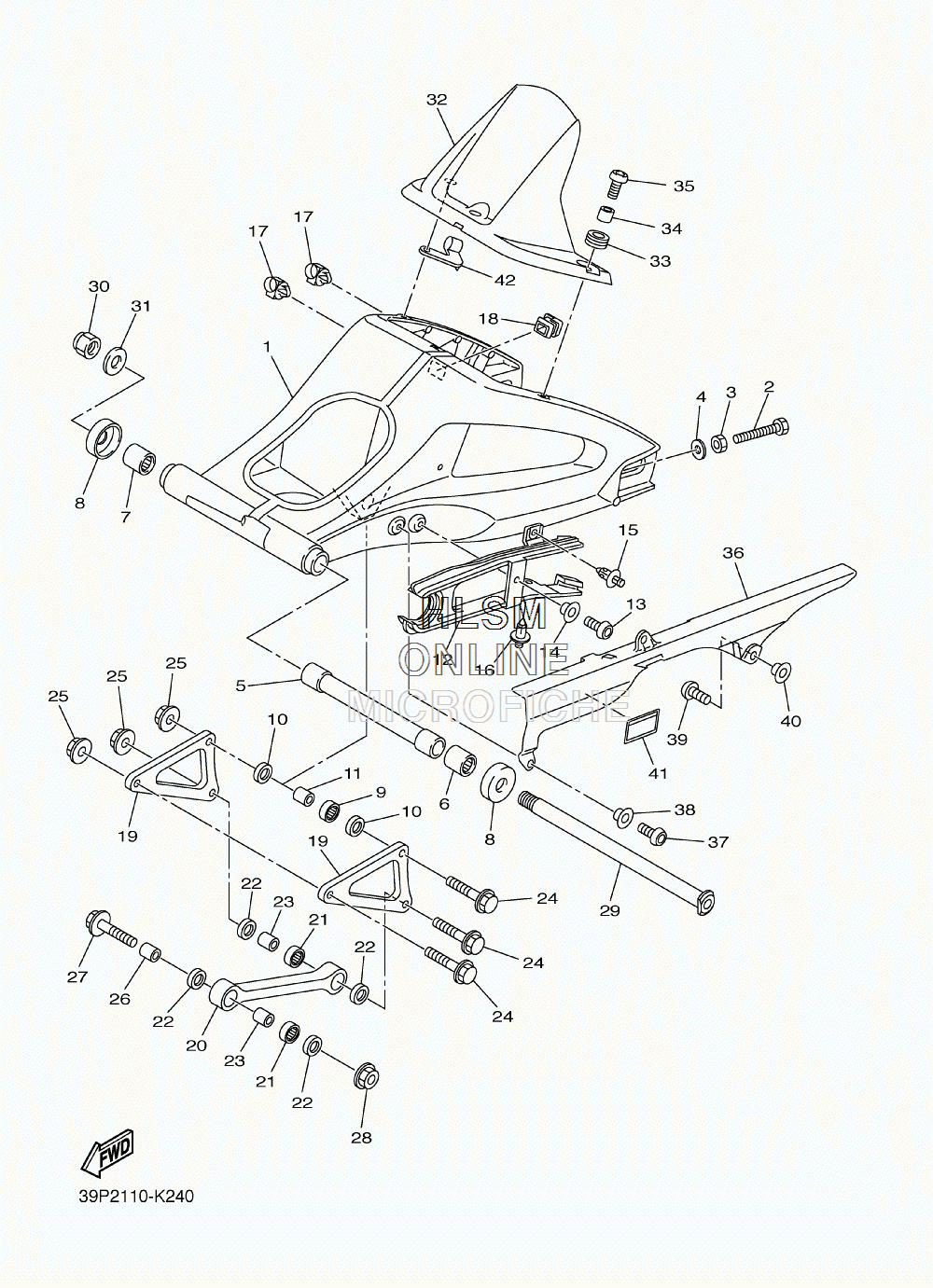

SUSPENSION - REAR ARM для Yamaha FZ 8 - 2013 года выпуска`
-
№АртикулНазвание
-
139P-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
290101-08013-00 BOLTBOLT
-
395302-08600-00 NUTNUT
-
490201-08057-00 WASHER, PLATEWASHER, PLATE
-
539P-22184-00-00 BUSHBUSH
-
693317-42599-00 BEARINGBEARING
-
793315-42536-00 BEARINGBEARING
-
85JJ-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
993315-41762-00 BEARINGBEARING
-
1093109-17071-00 OIL SEALOIL SEAL
-
1190387-1012A-00 COLLARCOLLAR
-
122D1-22151-00-00 SEAL, GUARDSEAL, GUARD
-
1392012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1490387-06130-00 COLLARCOLLAR
-
1590269-07007-00 RIVETRIVET
-
1690269-07008-00 RIVETRIVET
-
1790464-17003-00 CLAMPCLAMP
-
182D1-22117-00-00 CAPCAP
-
192D1-2217A-10-00 ARM, RELAYARM, RELAY
-
202D1-2217M-00-00 ARM 1ARM 1
-
2193315-31758-00 BEARINGBEARING
-
2293109-17071-00 OIL SEALOIL SEAL
-
2390387-1012A-00 COLLARCOLLAR
-
2490105-10283-00 BOLT, FLANGEBOLT, FLANGE
-
2595602-10200-00 NUT, U FLANGENUT, U FLANGE
-
2690387-10043-00 COLLARCOLLAR
-
2790105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
2895602-10200-00 NUT, U FLANGENUT, U FLANGE
-
2939P-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
3090185-18009-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3190201-18013-00 WASHER, PLATEWASHER, PLATE
-
322D1-21650-00-00 REAR FENDER COMP.REAR FENDER COMP.
-
3390480-12003-00 GROMMETGROMMET
-
3490387-06219-00 COLLARCOLLAR
-
3590149-06302-00 SCREWSCREW
-
365SL-22311-00-00 CASE, CHAINCASE, CHAIN
-
3792012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3890387-06130-00 COLLARCOLLAR
-
3990110-06102-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4090387-06009-00 COLLARCOLLAR
-
4114B-21668-00-00 LABEL, TIRELABEL, TIRE
-
422D1-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
