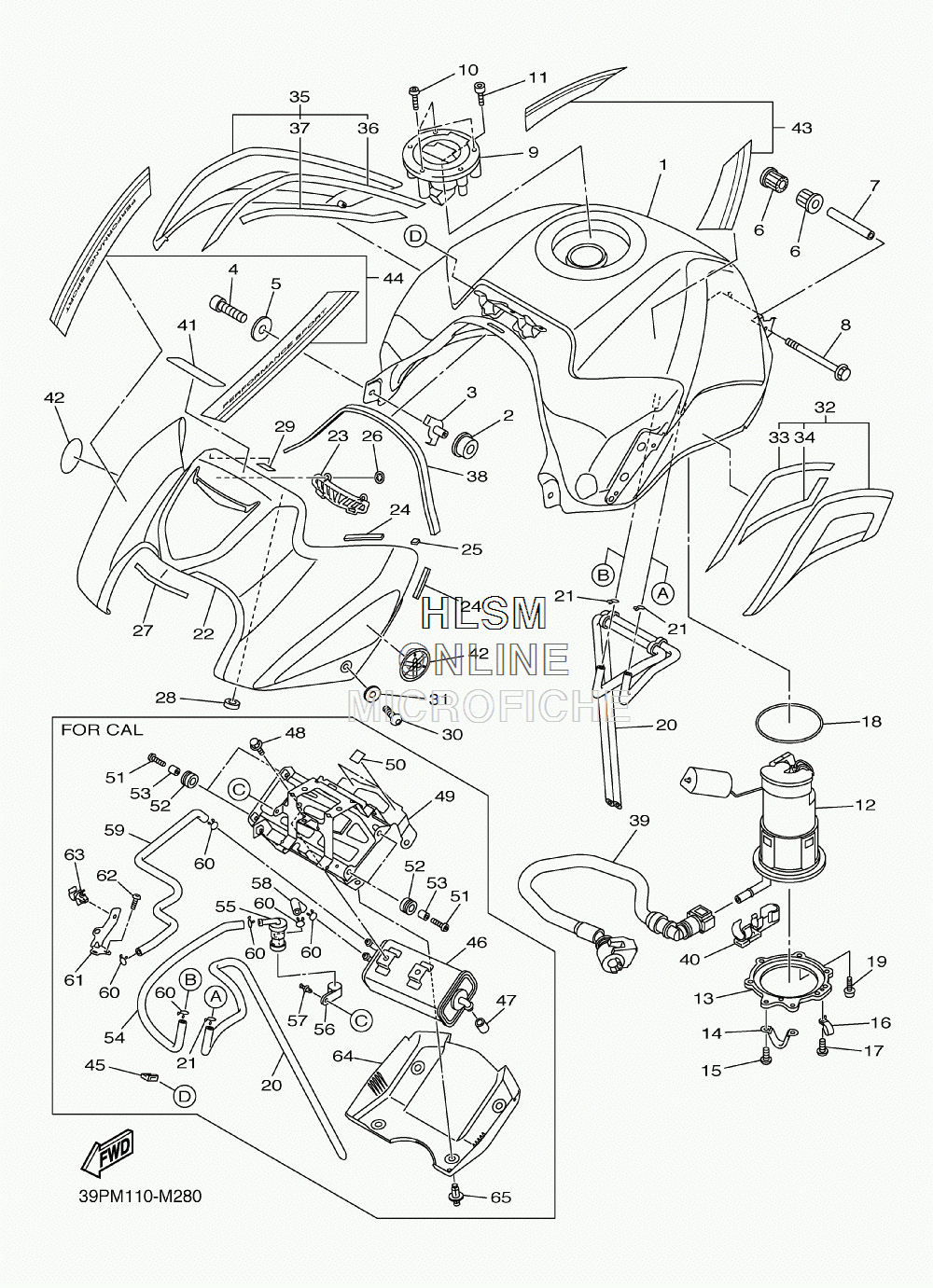

FUEL TANK для Yamaha FZ 8 - 2013 года выпуска
-
№АртикулНазвание
-
139P-24110-00-P4 FUEL TANK COMP. (MNM3 - MAT GRAY)FUEL TANK COMP. (MNM3 - MAT GRAY)
-
25VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
32D1-2412G-00-00 COLLARCOLLAR
-
491312-06016-00 BOLTBOLT
-
590201-06086-00 WASHER, PLATEWASHER, PLATE
-
65SL-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
790387-06055-00 COLLARCOLLAR
-
895022-06090-00 BOLT, FLANGEBOLT, FLANGE
-
939P-24602-10-00 CAP ASSYCAP ASSY
-
1090110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1191312-05010-00 BOLTBOLT
-
1239P-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
1339P-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
142D1-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
1598902-05008-00 SCREW, BINDSCREW, BIND
-
1690461-10010-00 CLAMPCLAMP
-
1790154-05035-00 SCREW, BINDINGSCREW, BINDING
-
1819B-24486-01-00 O-RINGO-RING
-
1990110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2039P-24317-00-00 PIPE 7PIPE 7
-
2039P-24315-00-00 PIPE 5 (CALIF ONLY)PIPE 5 (CALIF ONLY)
-
2190467-09006-00 CLIPCLIP
-
2239P-2171A-10-P5 COVER, TOP (MNM3 - MAT GRAY)COVER, TOP (MNM3 - MAT GRAY)
-
2339P-241B1-00-00 COVER, TANKCOVER, TANK
-
244XV-2834E-00-00 DAMPER 3DAMPER 3
-
2514B-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
2690183-05M02-00 NUT, SPRINGNUT, SPRING
-
2739P-28307-00-00 SEALSEAL
-
284FM-28372-00-00 DAMPERDAMPER
-
294RR-21485-00-00 DAMPER, RUBBER 1DAMPER, RUBBER 1
-
3090111-05019-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3190202-05224-00 WASHER, PLATEWASHER, PLATE
-
3239P-24106-00-00 TANK SIDE COVER ASSY 1TANK SIDE COVER ASSY 1
-
3339P-241A3-00-00 ...SEAL 3...SEAL 3
-
3439P-241A5-00-00 ...SEAL 5...SEAL 5
-
3539P-24108-00-00 TANK SIDE COVER ASSY 2TANK SIDE COVER ASSY 2
-
3639P-241A4-00-00 ...SEAL 4...SEAL 4
-
3739P-241A6-00-00 ...SEAL 6...SEAL 6
-
382D1-2414P-00-00 DAMPER, PLATE 5DAMPER, PLATE 5
-
3939P-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
4090464-16005-00 CLAMPCLAMP
-
415GK-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
-
425SL-2413B-00-00 EMBLEMEMBLEM
-
4339P-24240-20-00 GRAPHIC SETGRAPHIC SET
-
4442P-24230-00-00 GRAPHIC SET 1GRAPHIC SET 1
-
455PW-2411J-01-00 DAMPER, SIDE COVER (CALIF ONLY)DAMPER, SIDE COVER (CALIF ONLY)
-
4639P-24170-00-00 CANISTER ASSY (CALIF ONLY)CANISTER ASSY (CALIF ONLY)
-
4790445-11418-00 HOSE (L18) (CALIF ONLY)HOSE (L18) (CALIF ONLY)
-
4895802-06010-00 BOLT, FLANGE (CALIF ONLY)BOLT, FLANGE (CALIF ONLY)
-
4939P-2419F-00-00 BRACKET, CANISTOR (CALIF ONLY)BRACKET, CANISTOR (CALIF ONLY)
-
505YU-21639-00-00 DAMPER 2 (CALIF ONLY)DAMPER 2 (CALIF ONLY)
-
5192012-06020-00 BOLT, BUTTON HEAD (CALIF ONLY)BOLT, BUTTON HEAD (CALIF ONLY)
-
5290480-14030-00 GROMMET (CALIF ONLY)GROMMET (CALIF ONLY)
-
5390387-065L7-00 COLLAR (CALIF ONLY)COLLAR (CALIF ONLY)
-
5439P-24313-00-00 PIPE 3 (CALIF ONLY)PIPE 3 (CALIF ONLY)
-
552C0-24180-00-00 ROLL OVER VALVE ASSY (CALIF ONLY)ROLL OVER VALVE ASSY (CALIF ONLY)
-
5690461-15139-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
5790269-05005-00 RIVET (CALIF ONLY)RIVET (CALIF ONLY)
-
5839P-24314-00-00 PIPE 4 (CALIF ONLY)PIPE 4 (CALIF ONLY)
-
5939P-1444J-00-00 PIPE (CALIF ONLY)PIPE (CALIF ONLY)
-
6090467-09006-00 CLIP (CALIF ONLY)CLIP (CALIF ONLY)
-
6139P-24216-00-00 STAY (CALIF ONLY)STAY (CALIF ONLY)
-
6292012-06016-00 BOLT, BUTTON HEAD (CALIF ONLY)BOLT, BUTTON HEAD (CALIF ONLY)
-
6390464-10125-00 CLAMP (CALIF ONLY)CLAMP (CALIF ONLY)
-
645D0-2172W-00-00 COVER (CALIF ONLY)COVER (CALIF ONLY)
-
6590269-07077-00 RIVET (CALIF ONLY)RIVET (CALIF ONLY)
