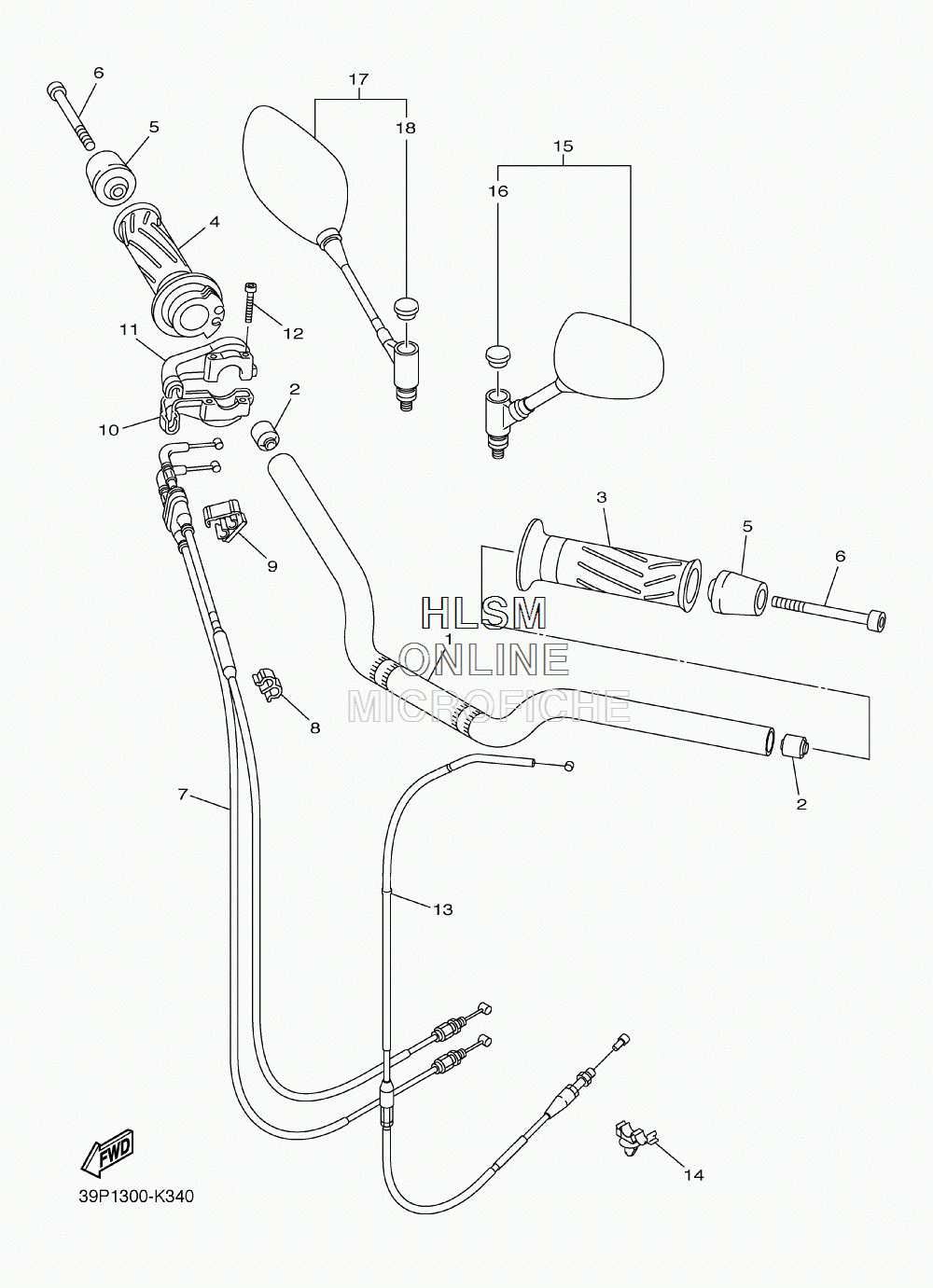

HANDLEBAR W/ CABLES для Yamaha FZ 8 - 2013 года выпуска`
-
№АртикулНазвание
-
139P-26111-00-00 HANDLEBARHANDLEBAR
-
24JH-23434-00-00 HOLDER, DAMPERHOLDER, DAMPER
-
34YR-26241-02-00 GRIP (LEFT)GRIP (LEFT)
-
44YR-26240-02-00 GRIP ASSYGRIP ASSY
-
539P-26246-00-00 END, GRIPEND, GRIP
-
691317-06050-00 BOLTBOLT
-
739P-26302-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
890468-15139-00 CLIPCLIP
-
939P-2627E-00-00 CLAMP, WIRECLAMP, WIRE
-
104KG-26281-00-00 CAP, GRIP UPPERCAP, GRIP UPPER
-
113XW-26282-01-00 CAP, GRIP UNDERCAP, GRIP UNDER
-
1291317-05035-00 BOLTBOLT
-
132D1-26335-00-00 CABLE, CLUTCHCABLE, CLUTCH
-
1490464-10008-00 CLAMPCLAMP
-
1520S-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
165PS-26133-20-00 ...CAP...CAP
-
1720S-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
185PS-26133-20-00 ...CAP...CAP
