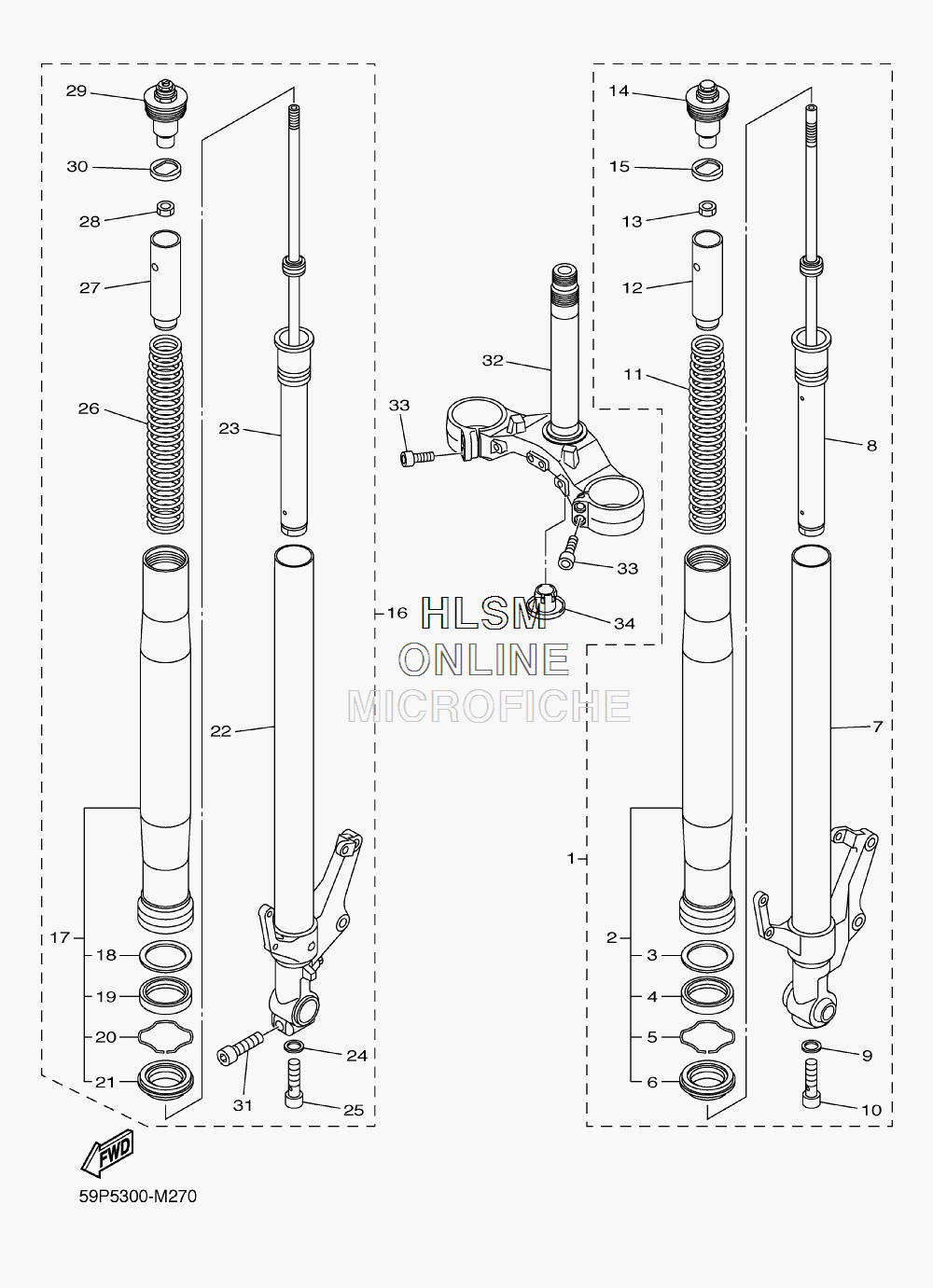

SUSPENSION - FRONT FORK для Yamaha FZ 8 - 2013 года выпуска`
-
№АртикулНазвание
-
139P-23102-10-00 FRONT FORK ASSY (LEFT)FRONT FORK ASSY (LEFT)
-
22D1-23136-00-00 ...TUBE, OUTER...TUBE, OUTER
-
34V4-23146-L0-00 ......WASHER, OIL SEAL......WASHER, OIL SEAL
-
44PU-23145-01-00 ......OIL SEAL......OIL SEAL
-
54V4-23153-L0-00 ......RING, SNAP......RING, SNAP
-
64PU-23144-00-00 ......SEAL, DUST......SEAL, DUST
-
739P-23110-00-00 ...INNER TUBE COMP.1...INNER TUBE COMP.1
-
839P-23170-20-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
9509-23158-L0-00 ...GASKET...GASKET
-
10278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
1139P-23141-10-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
125VY-23118-00-00 ...SPACER...SPACER
-
133LC-23357-00-00 ...NUT...NUT
-
1439P-23111-10-00 ...BOLT, CAP...BOLT, CAP
-
155VY-12277-00-00 ...WASHER...WASHER
-
1639P-23103-10-00 FRONT FORK ASSY (RIGHT)FRONT FORK ASSY (RIGHT)
-
172D1-23136-00-00 ...TUBE, OUTER...TUBE, OUTER
-
184V4-23146-L0-00 ......WASHER, OIL SEAL......WASHER, OIL SEAL
-
194PU-23145-01-00 ......OIL SEAL......OIL SEAL
-
204V4-23153-L0-00 ......RING, SNAP......RING, SNAP
-
214PU-23144-00-00 ......SEAL, DUST......SEAL, DUST
-
2239P-23120-10-00 ...INNER TUBE COMP.2...INNER TUBE COMP.2
-
2339P-23170-30-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
24509-23158-L0-00 ...GASKET...GASKET
-
255UX-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
2639P-23141-10-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
275VY-23118-00-00 ...SPACER...SPACER
-
283LC-23357-00-00 ...NUT...NUT
-
2939P-23111-20-00 ...BOLT, CAP...BOLT, CAP
-
305VY-12277-00-00 ...WASHER...WASHER
-
3191314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
3239P-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3391312-08030-00 BOLTBOLT
-
344KM-23123-01-00 COVER, UNDER 1COVER, UNDER 1
