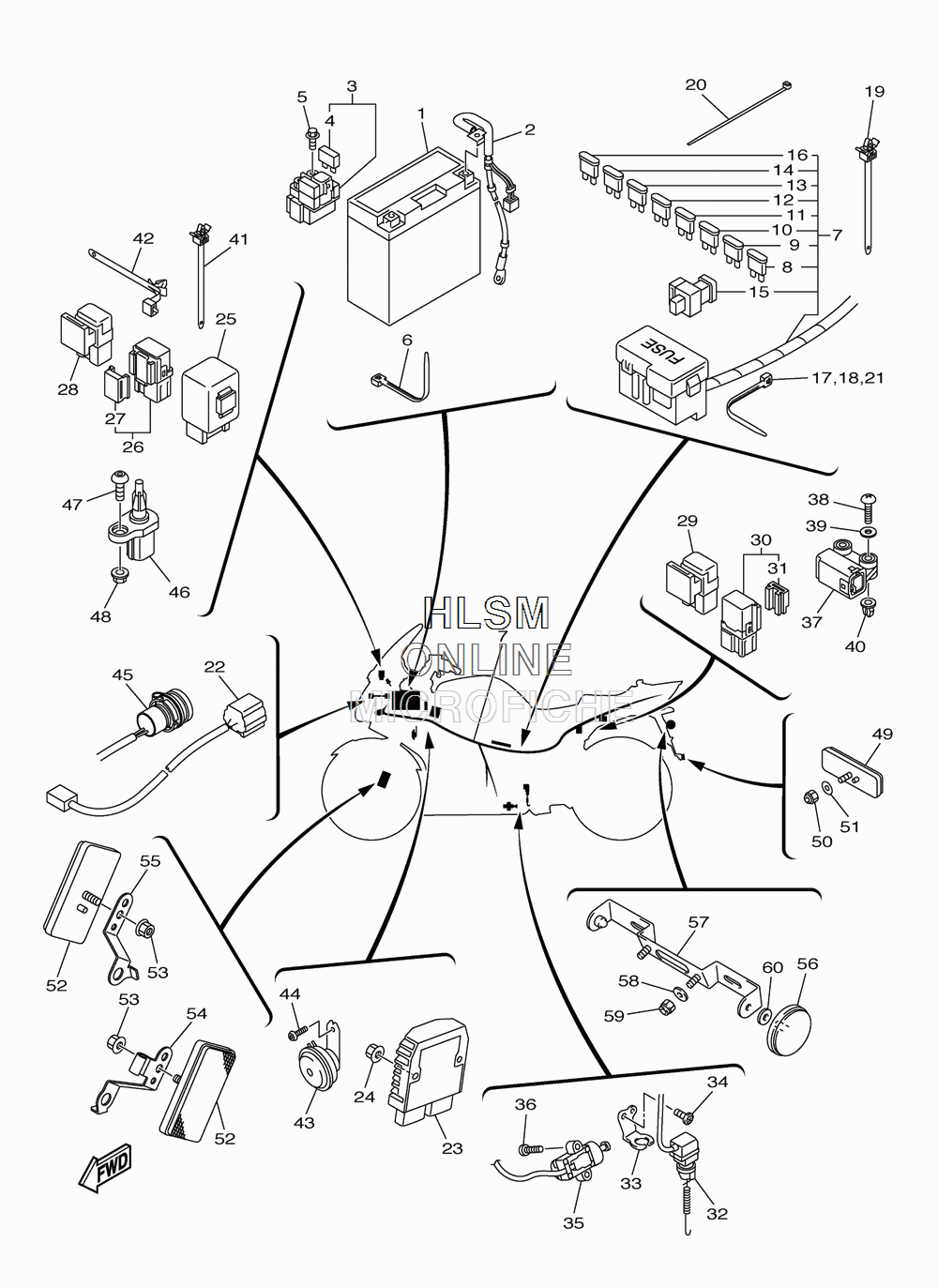

ELECTRICAL 2 для Yamaha FJR1300A - 2013 года выпуска`
-
№АртикулНазвание
-
15EA-82100-11-00 BATTERY ASSY (GS GT14B-4)BATTERY ASSY (GS GT14B-4)
-
21MC-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
33D7-81940-00-00 STARTER RELAY ASSY (RC19-076A)STARTER RELAY ASSY (RC19-076A)
-
41AE-82151-00-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
595022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
690465-10098-00 CLAMPCLAMP
-
71MC-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
81MC-82151-00-00 ...FUSE (1A-BL)...FUSE (1A-BL)
-
95JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
105JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
115JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
125JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
135JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
145JJ-82151-60-00 ...FUSE (30A-BL)...FUSE (30A-BL)
-
155JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
165JJ-82151-70-00 ...FUSE (25A-BL)...FUSE (25A-BL)
-
171UA-82591-00-00 BANDBAND
-
181UA-82591-00-00 BANDBAND
-
1990464-12036-00 CLAMPCLAMP
-
205Y9-12491-00-00 CLAMP 1CLAMP 1
-
2190464-13073-00 CLAMPCLAMP
-
221MC-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
231D7-81960-01-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
2495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
255VK-81950-30-00 RELAY ASSYRELAY ASSY
-
265JJ-81950-20-00 RELAY ASSYRELAY ASSY
-
275JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
285DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
295DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
305EA-81950-20-00 RELAY ASSY (5EA-02)RELAY ASSY (5EA-02)
-
315EA-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
321MC-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
331MC-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
3498902-05008-00 SCREW, BINDSCREW, BIND
-
351MC-82566-00-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
3690157-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
375PS-82576-01-00 EMERGENCY STOP SWITCHEMERGENCY STOP SWITCH
-
3897702-40025-00 SCREW, TAPPINGSCREW, TAPPING
-
3990201-04030-00 WASHER, PLATEWASHER, PLATE
-
404B4-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
4190464-12036-00 CLAMPCLAMP
-
4290464-20213-00 CLAMPCLAMP
-
431MC-83371-00-00 HORNHORN
-
4492012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
453P6-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
465YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
4792012-05014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4895702-05500-00 NUT, FLANGE (SILVER)NUT, FLANGE (SILVER)
-
493Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
5095602-05100-00 NUT, UNUT, U
-
5190201-05043-00 WASHER, PLATEWASHER, PLATE
-
5211H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
5395702-05500-00 NUT, FLANGE (SILVER)NUT, FLANGE (SILVER)
-
543P6-85112-10-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
553P6-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
56449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
575JW-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
5890201-06076-00 WASHER, PLATEWASHER, PLATE
-
5995602-06100-00 NUT, UNUT, U
-
6090201-05036-00 WASHER, PLATEWASHER, PLATE
