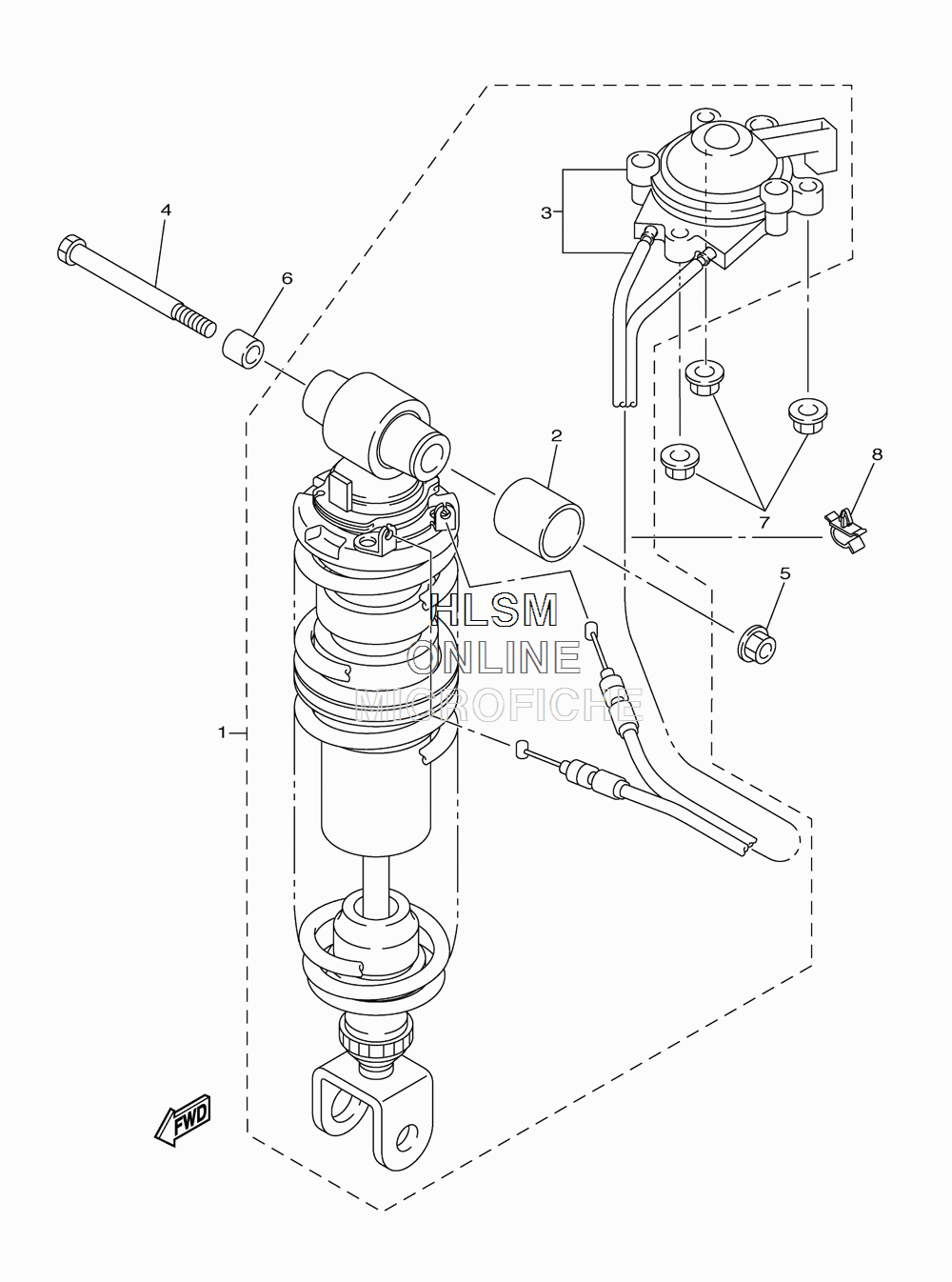

SUSPENSION - REAR SHOCK ABSORBER для Yamaha FJR1300A - 2013 года выпуска`
-
№АртикулНазвание
-
11MC-22210-10-00 SHOCK ABSORBER ASSY, REARSHOCK ABSORBER ASSY, REAR
-
25JW-22216-00-00 ...BUSH, REAR SHOCK ABSORBER...BUSH, REAR SHOCK ABSORBER
-
31MC-22460-00-00 ...CONTROL PANEL ASSY...CONTROL PANEL ASSY
-
490101-12044-00 BOLTBOLT
-
595602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
690387-12028-00 COLLARCOLLAR
-
795602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890464-14001-00 CLAMPCLAMP
