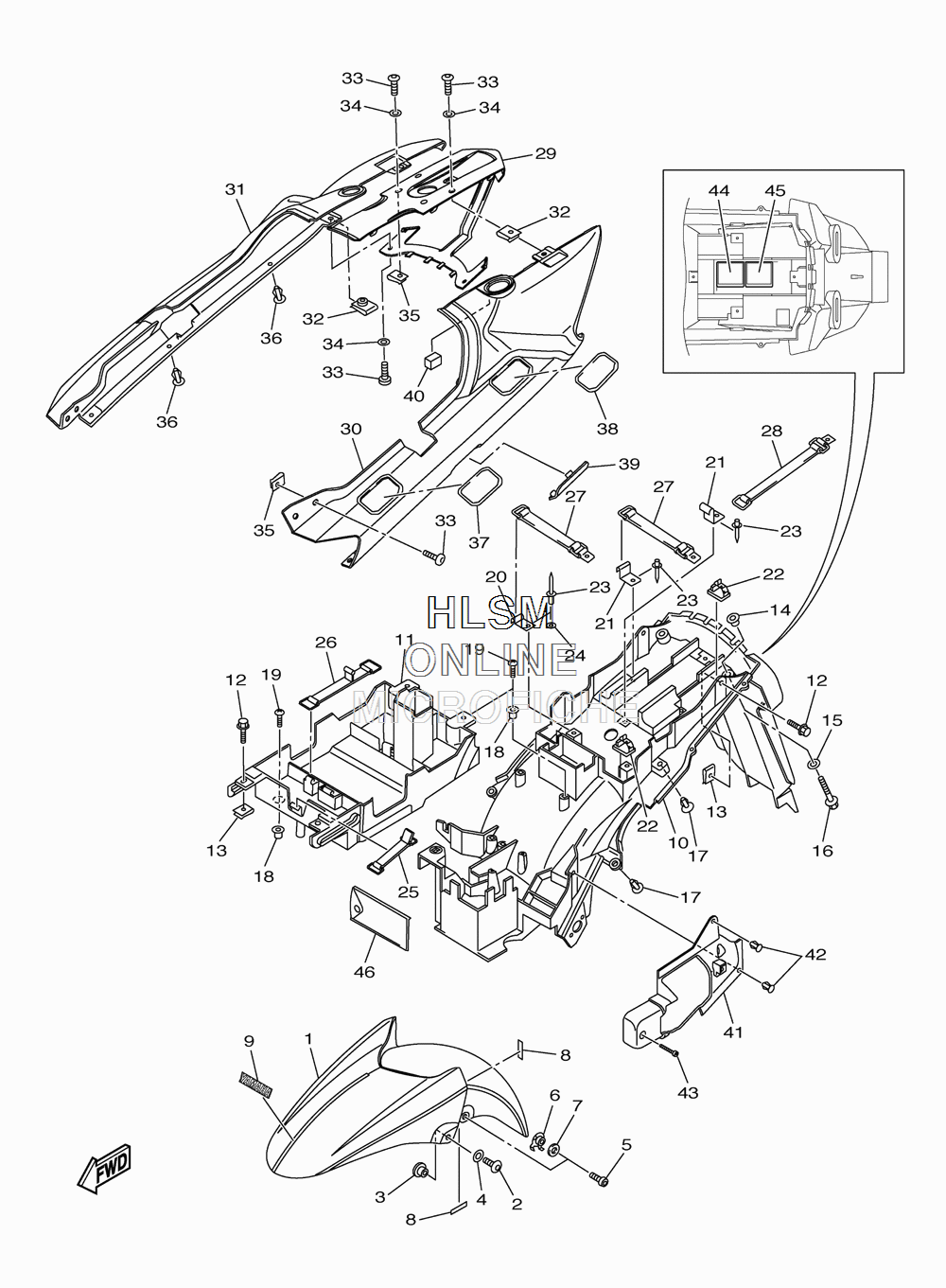

FENDER - FRONT / REAR для Yamaha FJR1300A - 2013 года выпуска`
-
№АртикулНазвание
-
13P6-21511-00-PB FENDER, FRONT (MDYNM3 - TECH BRONZE)FENDER, FRONT (MDYNM3 - TECH BRONZE)
-
290110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
390387-07006-00 COLLARCOLLAR
-
490202-06170-00 WASHER, PLATEWASHER, PLATE
-
592012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
63P6-21535-10-00 NUT 1NUT 1
-
73P6-21541-00-00 DAMPER 1DAMPER 1
-
85DM-28371-00-00 DAMPERDAMPER
-
94B5-2153E-20-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
103P6-21611-10-00 FENDER, REARFENDER, REAR
-
113P6-2160E-00-00 BOXBOX
-
1290119-06159-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1390183-060A7-00 NUT, SPRINGNUT, SPRING
-
1490387-06231-00 COLLARCOLLAR
-
1590201-07081-00 WASHER, PLATEWASHER, PLATE
-
1695802-06040-00 BOLT, FLANGEBOLT, FLANGE
-
1790269-06081-00 RIVETRIVET
-
1890338-08226-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
1997702-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
205PS-2162A-00-00 HOOKHOOK
-
214HM-2162A-00-00 HOOKHOOK
-
2290464-13185-00 CLAMPCLAMP
-
2390267-40076-00 RIVET, BLINDRIVET, BLIND
-
2492902-04200-00 WASHER, PLAINWASHER, PLAIN
-
2536X-2811G-00-00 BANDBAND
-
264J2-82131-01-00 BAND, BATTERYBAND, BATTERY
-
275JW-21647-01-00 BANDBAND
-
283P6-21647-00-00 BANDBAND
-
293P6-21651-00-P7 COVER, REAR FENDER (YNM5 - YELLOWISH GRAY)COVER, REAR FENDER (YNM5 - YELLOWISH GRAY)
-
303P6-2471K-00-P7 COVER, TAIL 1 (YNM5 - YELLOWISH GRAY)COVER, TAIL 1 (YNM5 - YELLOWISH GRAY)
-
313P6-2472K-00-P7 COVER, TAIL 2 (YNM5 - YELLOWISH GRAY)COVER, TAIL 2 (YNM5 - YELLOWISH GRAY)
-
3290183-051A0-00 NUT, SPRINGNUT, SPRING
-
3390111-05044-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3490202-05180-00 WASHER, PLATEWASHER, PLATE
-
3590183-050A0-00 NUT, SPRINGNUT, SPRING
-
3690269-06081-00 RIVETRIVET
-
373P6-2163E-00-P6 COVER, REAR FENDER 2 (YNM5 - YELLOWISH GRAY)COVER, REAR FENDER 2 (YNM5 - YELLOWISH GRAY)
-
383P6-2163E-10-P6 COVER, REAR FENDER 2 (YNM5 - YELLOWISH GRAY)COVER, REAR FENDER 2 (YNM5 - YELLOWISH GRAY)
-
393P6-2163F-00-P6 COVER, REAR FENDER 3 (YNM5 - YELLOWISH GRAY)COVER, REAR FENDER 3 (YNM5 - YELLOWISH GRAY)
-
403P6-21649-00-00 DAMPERDAMPER
-
411MC-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
4290269-06081-00 RIVETRIVET
-
4397702-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
4413S-21684-10-00 PLATE, ROUTING (CALIF. ONLY)PLATE, ROUTING (CALIF. ONLY)
-
451MC-21686-00-00 PLATE, ROUTING 2 (CALIF. ONLY)PLATE, ROUTING 2 (CALIF. ONLY)
-
461MC-28100-00-00 TOOL KITTOOL KIT
