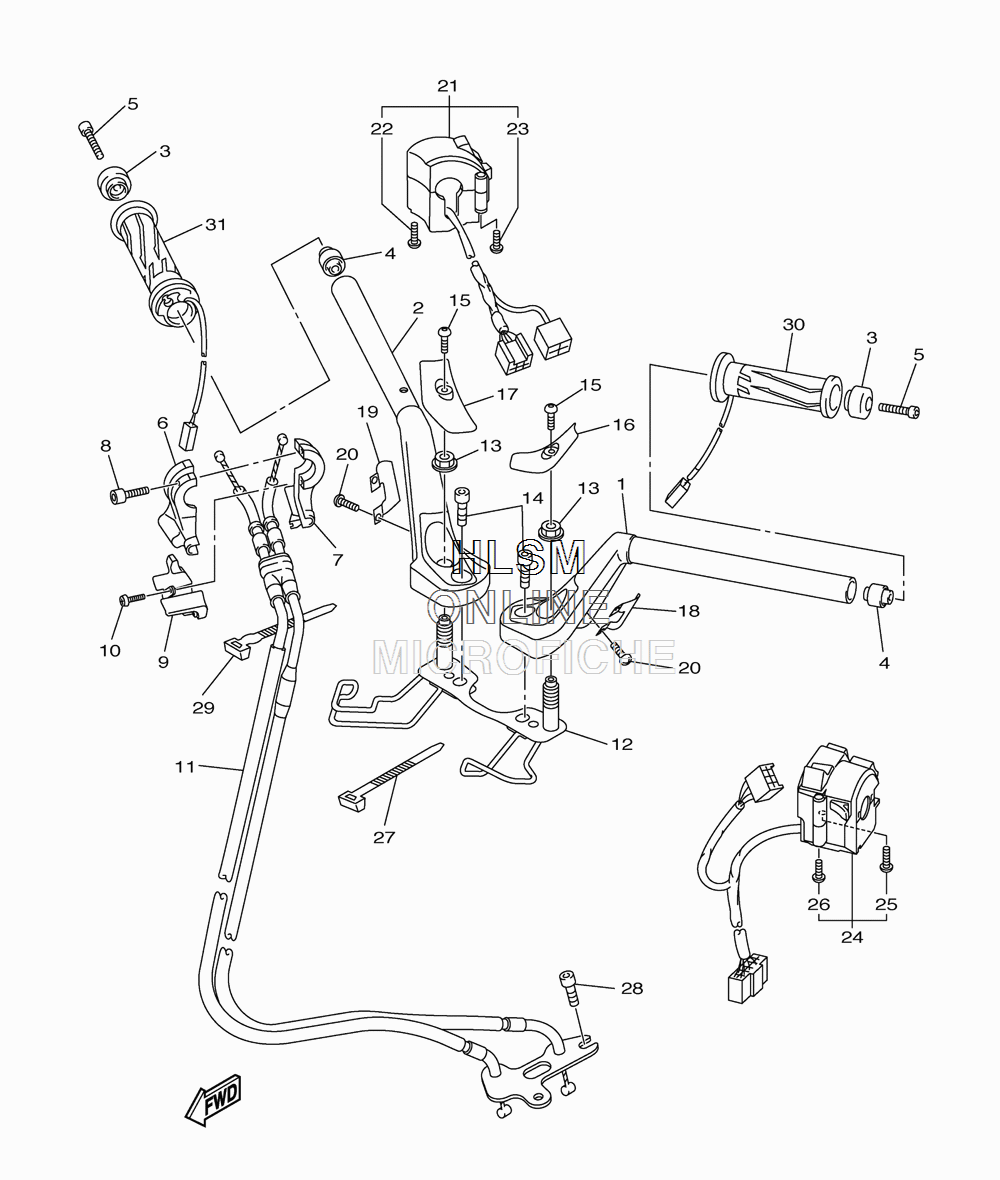

HANDLEBAR W/ CABLES для Yamaha FJR1300A - 2013 года выпуска`
-
№АртикулНазвание
-
11MC-26121-00-00 HANDLEBAR (LEFT)HANDLEBAR (LEFT)
-
21MC-26122-00-00 HANDLEBAR (RIGHT)HANDLEBAR (RIGHT)
-
34XV-26246-10-00 END, GRIPEND, GRIP
-
44XV-23434-00-00 HOLDER, DAMPERHOLDER, DAMPER
-
591317-06025-00 BOLTBOLT
-
62D2-26281-01-00 CAP, GRIP UPPERCAP, GRIP UPPER
-
72D2-26282-01-00 CAP, GRIP UNDERCAP, GRIP UNDER
-
891317-05035-00 BOLTBOLT
-
92D2-2622K-00-00 PROTECTOR 1PROTECTOR 1
-
1090154-03001-00 SCREW, BINDINGSCREW, BINDING
-
111MC-26302-00-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
121MC-26169-00-00 ADJUSTERADJUSTER
-
1395702-12500-00 NUT, FLANGENUT, FLANGE
-
1491312-08030-00 BOLTBOLT
-
1590111-04006-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
163P6-26143-10-00 COVER, HANDLE UPPER 1COVER, HANDLE UPPER 1
-
173P6-26145-10-00 COVER, HAND UPPER 2COVER, HAND UPPER 2
-
183P6-26144-10-00 COVER, HANDLEBAR LOWER 1COVER, HANDLEBAR LOWER 1
-
193P6-26146-10-00 COVER, HANDLEBAR LOWER 2COVER, HANDLEBAR LOWER 2
-
2098507-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
211MC-83963-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
2298507-05035-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2398507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
241MC-83954-00-00 SWITCH, HANDLE 7SWITCH, HANDLE 7
-
2598507-05055-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2698507-05040-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2790464-16061-00 CLAMPCLAMP
-
2890110-05032-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2990465-10098-00 CLAMPCLAMP
-
301MC-82963-00-00 GRIP, WARMER (LEFT)GRIP, WARMER (LEFT)
-
311MC-82960-00-00 GRIP, WARMER (RIGHT)GRIP, WARMER (RIGHT)
