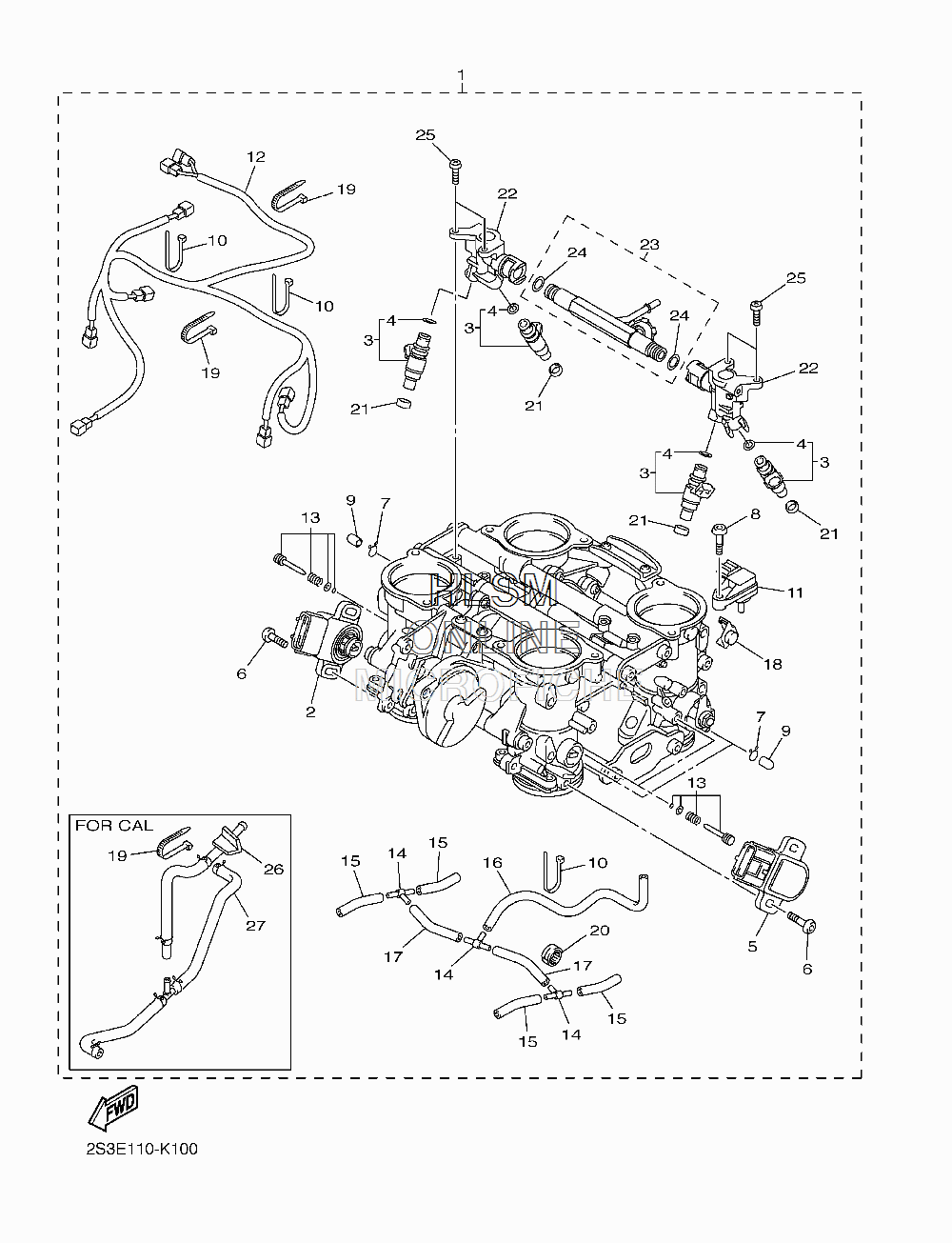

THROTTLE BODY ASSY. для Yamaha V MAX - 2012 года выпуска`
-
№АртикулНазвание
-
12S3-13750-00-00 THROTTLE BODY ASSY (EXCEPT CALIF)THROTTLE BODY ASSY (EXCEPT CALIF)
-
12S3-13750-10-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
213S-85884-00-00 ...ACCELERATOR SENSOR ASSY...ACCELERATOR SENSOR ASSY
-
32S3-13761-00-00 ...INJECTOR...INJECTOR
-
45PS-14147-00-00 ......O-RING......O-RING
-
52S3-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
68CC-14216-10-00 ...SCREW...SCREW
-
78A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
82C0-14216-00-00 ...SCREW...SCREW
-
9895-14169-00-00 ...CAP...CAP
-
104KM-14137-00-00 ...CLIP...CLIP
-
112C0-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
122S3-82509-00-00 ...WIRE, SUB LEAD...WIRE, SUB LEAD
-
132C0-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
1468V-24376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
-
155FL-14348-10-00 ...PIPE 1...PIPE 1
-
162S3-13542-00-00 ...HOSE, VACUUM SENSING 1...HOSE, VACUUM SENSING 1
-
172S3-13544-00-00 ...HOSE, VACUUM SENSING 2...HOSE, VACUUM SENSING 2
-
182S3-13947-00-00 ...CAP...CAP
-
19437-83936-01-00 ...BAND, SWITCH CORD...BAND, SWITCH CORD
-
2090464-13227-00 ...CLAMP...CLAMP
-
218FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
222S3-1393A-00-00 ...PIPE, INL....PIPE, INL.
-
232S3-13795-00-00 ...JOINT, THROTTLE BODY 1...JOINT, THROTTLE BODY 1
-
2439P-14147-00-00 ......O-RING......O-RING
-
2598502-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
262S3-1410E-10-00 ...HOSE (CALIF ONLY)...HOSE (CALIF ONLY)
-
272S3-1410E-00-00 ...HOSE (CALIF ONLY)...HOSE (CALIF ONLY)
