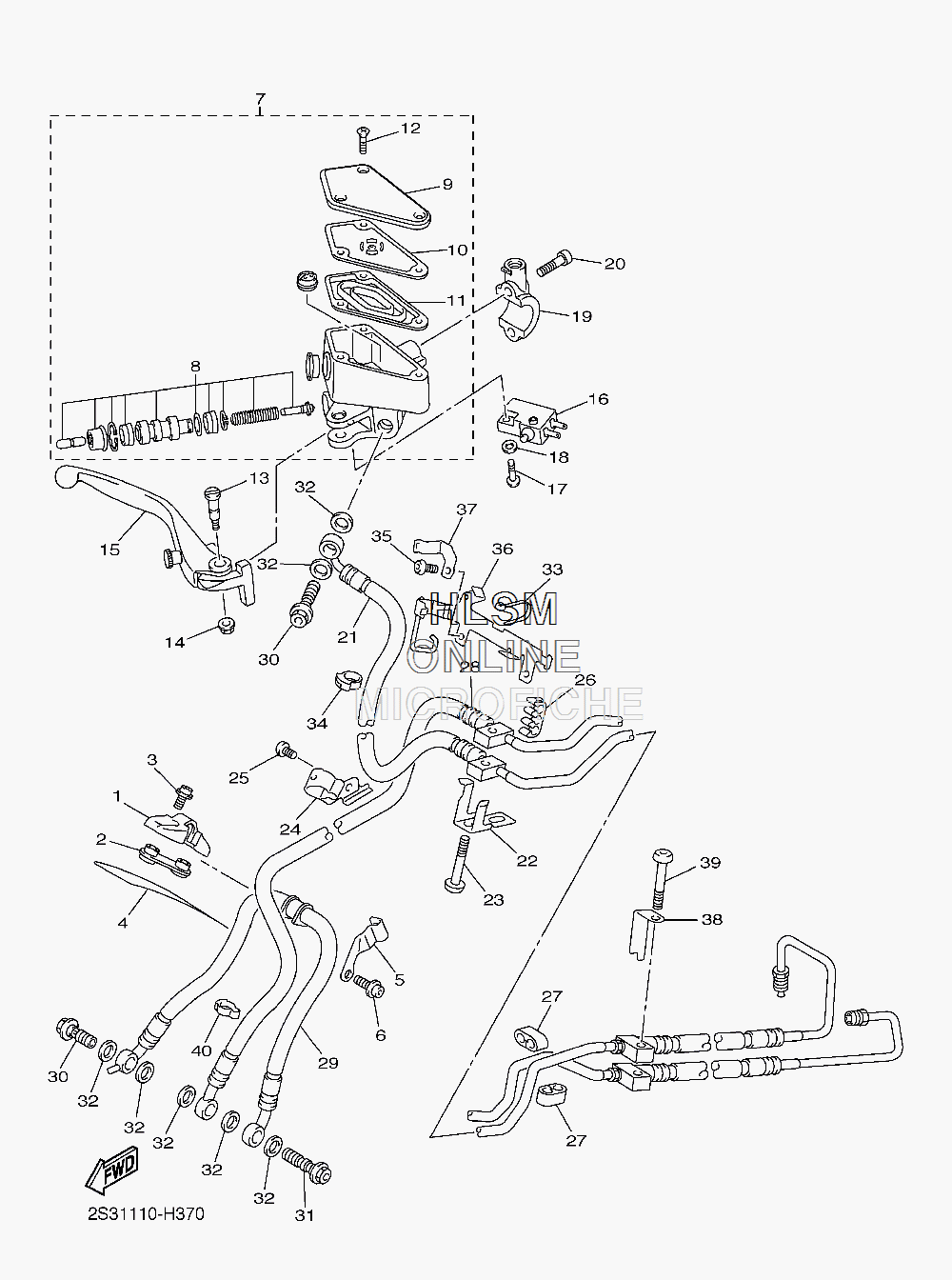

BRAKE - FRONT MASTER CYLINDER для Yamaha V MAX - 2012 года выпуска`
-
№АртикулНазвание
-
12S3-215A3-00-00 CLAMPCLAMP
-
22S3-21587-00-00 STAY 1STAY 1
-
390110-06302-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
44TP-21575-00-00 SEAL 1SEAL 1
-
52S3-21598-00-00 HOLDER, WIRE 2HOLDER, WIRE 2
-
691314-06010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
72S3-W2587-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
82S3-W0041-00-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
95YU-25852-10-00 ...CAP, RESERVOIR...CAP, RESERVOIR
-
105YU-25855-10-00 ...BUSH, DIAPHRAGM...BUSH, DIAPHRAGM
-
115YU-25854-10-00 ...DIAPHRAGM, RESERVOIR...DIAPHRAGM, RESERVOIR
-
125VS-2589H-00-00 ...SCREW...SCREW
-
135VY-2589F-01-00 BOLT, LEVERBOLT, LEVER
-
145VS-2586F-00-00 NUT, COVERNUT, COVER
-
152S3-83922-00-00 LEVER 2LEVER 2
-
165D3-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1798502-04014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1892902-04600-00 WASHER, PLATEWASHER, PLATE
-
195YU-2639F-00-00 HOLDER 2HOLDER 2
-
205VS-26332-00-00 BOLTBOLT
-
212S3-2584A-00-00 BRAKE HOSE ASSYBRAKE HOSE ASSY
-
222S3-2588F-00-00 HOLDER, BRAKE HOSE 5HOLDER, BRAKE HOSE 5
-
2392012-06045-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
242S3-2639F-00-00 HOLDER 2HOLDER 2
-
2590111-06085-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2690464-07M05-00 CLAMPCLAMP
-
272S3-26113-00-00 DAMPERDAMPER
-
282S3-2584B-00-00 HOSE, BRAKEHOSE, BRAKE
-
292S3-25873-00-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
3090401-10172-00 BOLT, UNIONBOLT, UNION
-
3190401-10042-00 BOLT, UNIONBOLT, UNION
-
3290430-10005-00 GASKETGASKET
-
3390464-32060-00 CLAMPCLAMP
-
3490464-16003-00 CLAMPCLAMP
-
3592012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
362S3-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
372S3-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
382S3-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
3992017-06040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4090464-12013-00 CLAMPCLAMP
