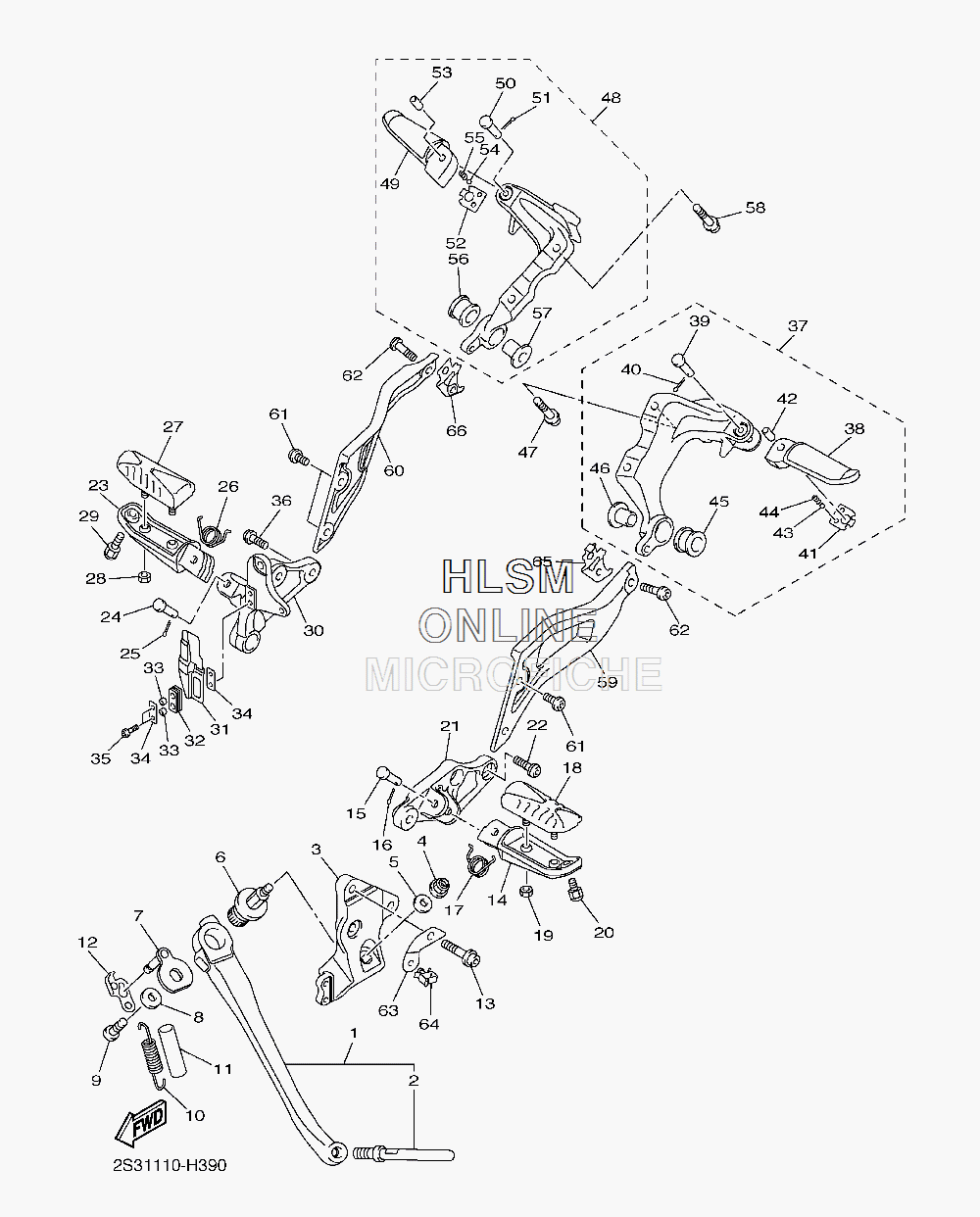

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha V MAX - 2012 года выпуска
-
№АртикулНазвание
-
12S3-27311-00-00 STAND, SIDESTAND, SIDE
-
22S3-27324-09-00 ...FOOT, BAR...FOOT, BAR
-
32S3-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
495604-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590201-101J1-00 WASHER, PLATEWASHER, PLATE
-
62S3-27351-00-00 GUIDE, SIDE STANDGUIDE, SIDE STAND
-
72S3-27352-00-00 HOOK, SIDE STANDHOOK, SIDE STAND
-
890201-081R9-00 WASHER, PLATEWASHER, PLATE
-
990111-08064-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
102S3-27116-00-00 SPRING, MAIN STANDSPRING, MAIN STAND
-
1190445-197J2-00 HOSE (L60)HOSE (L60)
-
122S3-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
1390110-08089-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
142S3-27451-00-00 FOOTRESTFOOTREST
-
1591701-08040-00 PINPIN
-
1691401-25015-00 PIN, COTTERPIN, COTTER
-
1790508-20572-00 SPRING, TORSIONSPRING, TORSION
-
182S3-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
1995604-05100-00 NUT, UNUT, U
-
202S3-27317-00-00 BOLTBOLT
-
212S3-27442-00-00 BRACKET 2BRACKET 2
-
2290109-085G6-00 BOLTBOLT
-
232S3-27461-00-00 FOOTRESTFOOTREST
-
2491701-08040-00 PINPIN
-
2591401-25015-00 PIN, COTTERPIN, COTTER
-
2690508-20572-00 SPRING, TORSIONSPRING, TORSION
-
272S3-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
2895604-05100-00 NUT, UNUT, U
-
292S3-27317-00-00 BOLTBOLT
-
302S3-27443-00-00 BRACKET 3BRACKET 3
-
312S3-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
322S3-28187-00-00 GROMMETGROMMET
-
3390387-05046-00 COLLARCOLLAR
-
342S3-27415-00-00 PLATE, FOOTRESTPLATE, FOOTREST
-
3590111-05036-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3690109-085G6-00 BOLTBOLT
-
372S3-27430-00-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
385JJ-27431-10-00 ...FOOTREST, REAR 1...FOOTREST, REAR 1
-
3991701-06032-00 ...PIN...PIN
-
4091401-20012-00 ...PIN, COTTER...PIN, COTTER
-
415JJ-27437-01-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
4290387-06697-00 ...COLLAR...COLLAR
-
4393501-04011-00 ...BALL 1/4...BALL 1/4
-
4490501-12743-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
454XV-27424-00-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
4690387-08005-00 ...COLLAR...COLLAR
-
4790110-08199-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
482S3-27440-00-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
495JJ-27441-10-00 ...FOOTREST, REAR 2...FOOTREST, REAR 2
-
5091701-06032-00 ...PIN...PIN
-
5191401-20012-00 ...PIN, COTTER...PIN, COTTER
-
525JJ-27437-01-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
5390387-06697-00 ...COLLAR...COLLAR
-
5493501-04011-00 ...BALL 1/4...BALL 1/4
-
5590501-12743-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
564XV-27424-00-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
5790387-08005-00 ...COLLAR...COLLAR
-
5890110-08199-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
592S3-27445-00-00 PLATE 1PLATE 1
-
602S3-27446-00-00 PLATE 2PLATE 2
-
6190149-06298-00 SCREWSCREW
-
6290149-06302-00 SCREWSCREW
-
632S3-2787A-00-00 BRACKET 1BRACKET 1
-
6490464-16021-00 CLAMPCLAMP
-
652S3-2172K-00-00 BRACKET 1BRACKET 1
-
662S3-2172L-00-00 BRACKET 2BRACKET 2
