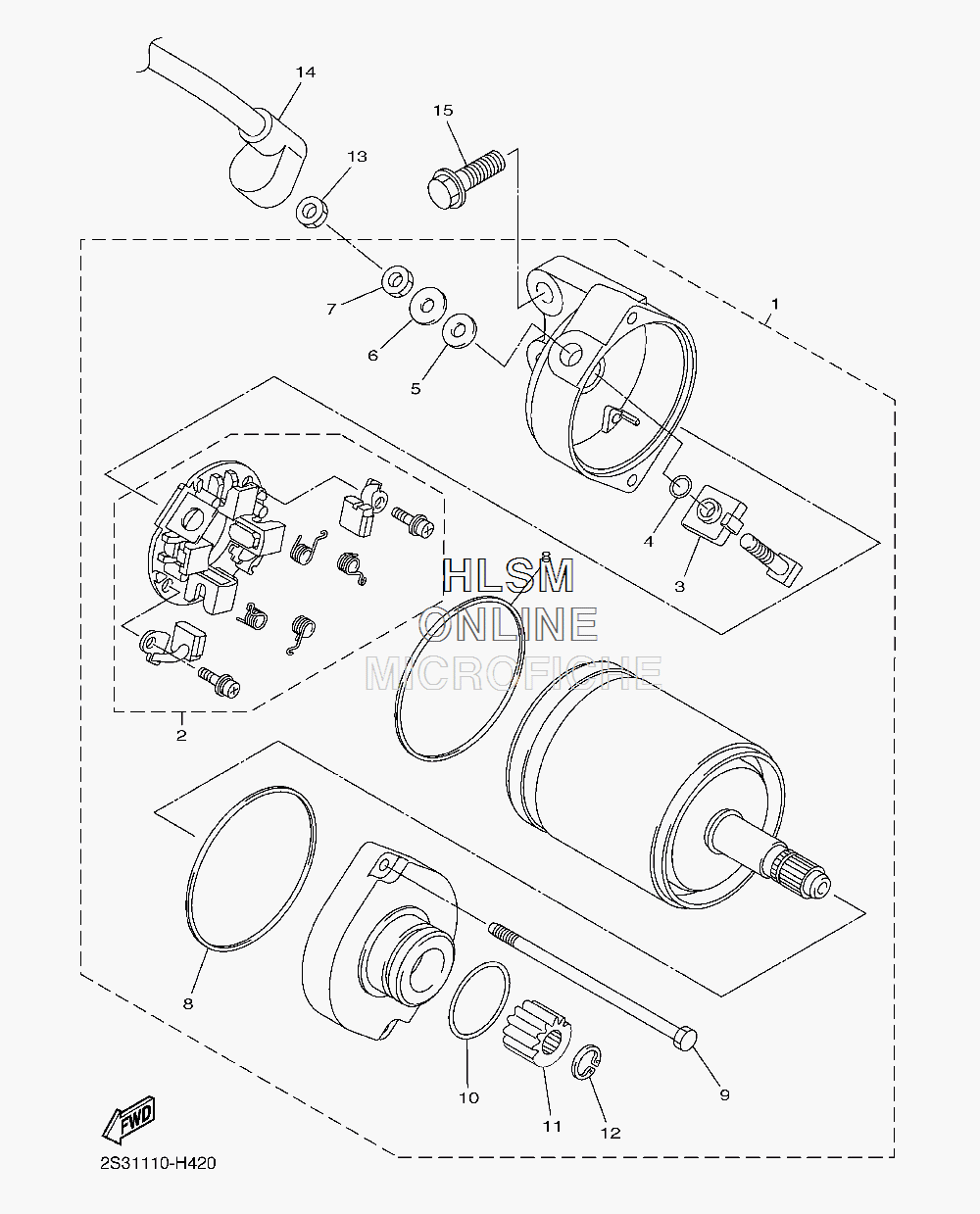

STARTING MOTOR для Yamaha V MAX - 2012 года выпуска`
-
№АртикулНазвание
-
12S3-81890-00-00 MOTOR ASSYMOTOR ASSY
-
22S3-81801-00-00 ...BRUSH SET...BRUSH SET
-
32S3-8182G-00-00 ...BUSH, TERMINAL...BUSH, TERMINAL
-
493210-06001-00 ...O-RING...O-RING
-
58FA-8181L-00-00 ...WASHER, PLAIN...WASHER, PLAIN
-
61D7-81835-00-00 ...WASHER...WASHER
-
795302-06700-00 ...NUT...NUT
-
85PX-81861-00-00 ...GASKET...GASKET
-
98FA-81846-01-00 ...SCREW...SCREW
-
1093210-25711-00 ...O-RING...O-RING
-
115PX-15511-00-00 ...GEAR, STARTING MOTOR...GEAR, STARTING MOTOR
-
1299009-10800-00 ...CIRCLIP...CIRCLIP
-
1395302-06700-00 NUTNUT
-
142S3-8183G-00-00 CORD COMP.CORD COMP.
-
1595022-08030-00 BOLT, FLANGEBOLT, FLANGE
