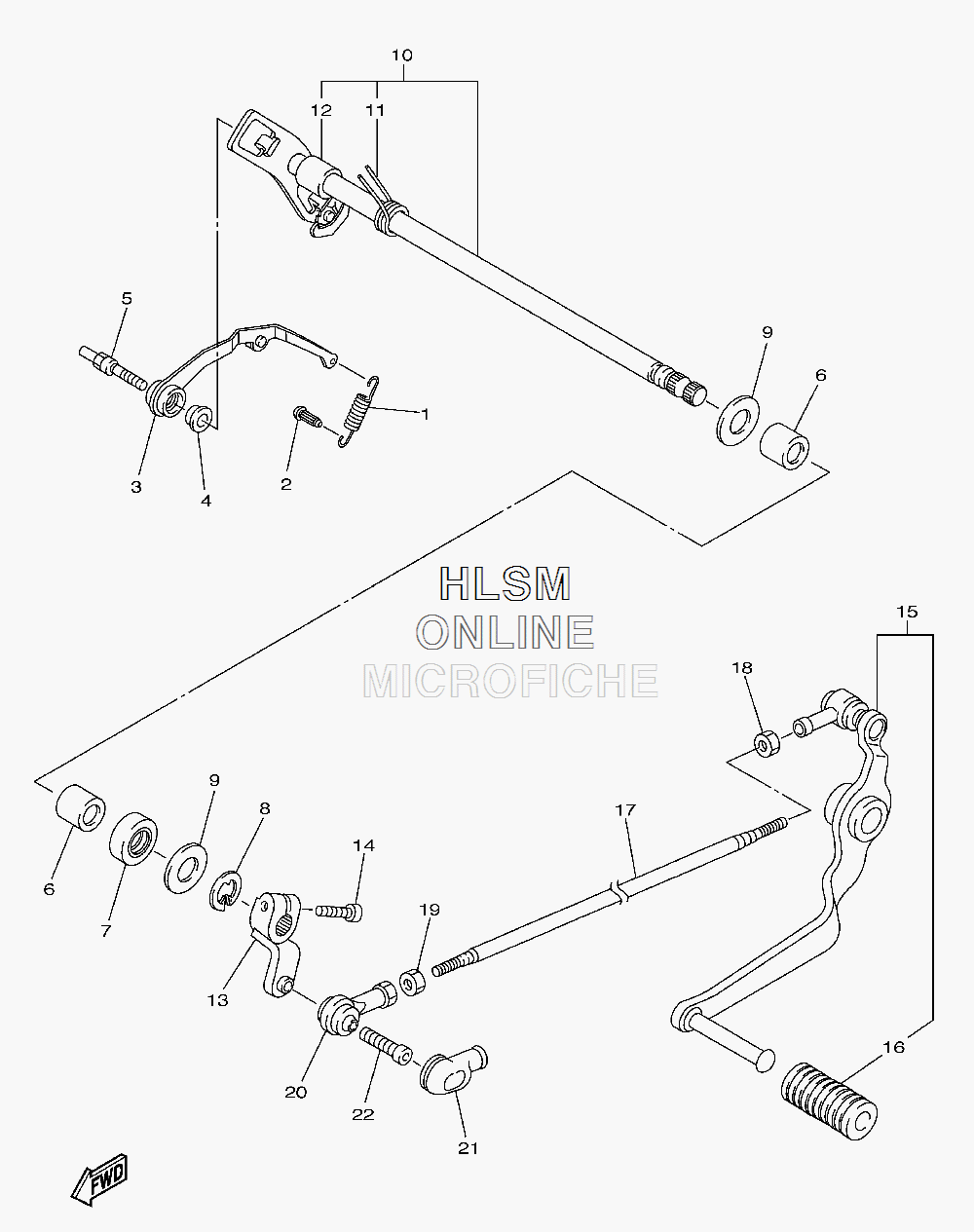

SHIFT SHAFT для Yamaha FZ8 - 2011 года выпуска`
-
№АртикулНазвание
-
15VY-18144-00-00 HANGER, SPRINGHANGER, SPRING
-
2132-16346-00-00 HOOK, SPRINGHOOK, SPRING
-
35VY-18140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
490387-0804S-00 COLLARCOLLAR
-
55VY-18127-10-00 STOPPER, SCREWSTOPPER, SCREW
-
693317-11295-00 BEARINGBEARING
-
793102-12106-00 OIL SEAL (SD 12-22-5 HS)OIL SEAL (SD 12-22-5 HS)
-
899002-10600-00 CLIPCLIP
-
990201-12575-00 WASHER, PLATEWASHER, PLATE
-
102D1-18101-00-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
1190508-32020-00 ...SPRING, TORSION...SPRING, TORSION
-
1290387-1211D-00 ...COLLAR...COLLAR
-
132D1-18112-00-00 ...ARM, SHIFT...ARM, SHIFT
-
1491312-06020-00 BOLTBOLT
-
1539P-18110-00-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
165EB-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
1739P-18115-00-00 ROD, SHIFTROD, SHIFT
-
1890170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
1995304-06700-00 NUTNUT
-
205VX-18116-00-00 JOINT, ROD 1JOINT, ROD 1
-
215VX-18154-00-00 COVER, DUSTCOVER, DUST
-
2290111-06098-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
