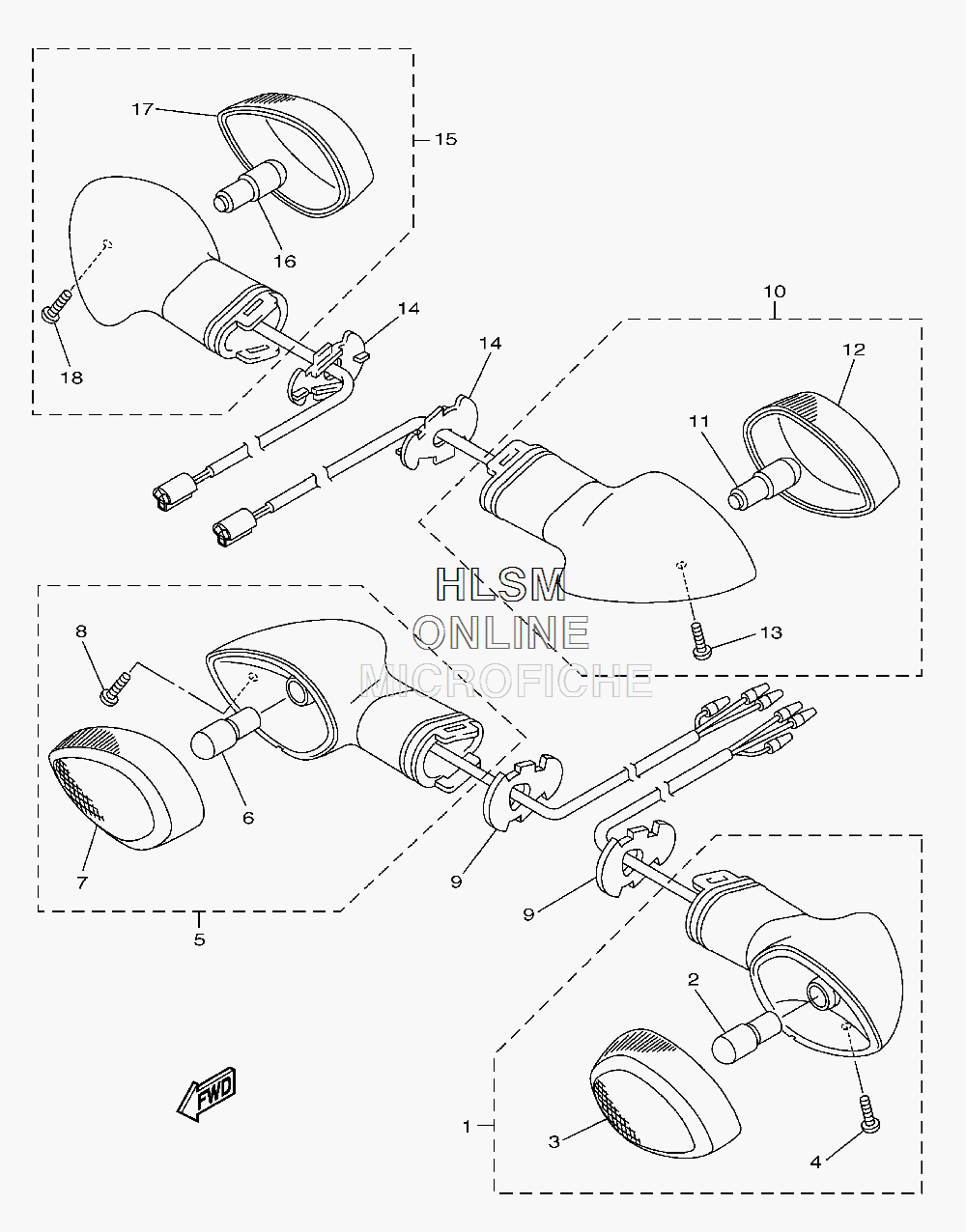

FLASHER LIGHT для Yamaha FZ8 - 2011 года выпуска`
-
№АртикулНазвание
-
139P-83310-10-00 FRONT FLASHER LIGHT ASSY 1FRONT FLASHER LIGHT ASSY 1
-
239P-83331-00-00 ...BULB, FLASHER (12V-21/5W)...BULB, FLASHER (12V-21/5W)
-
35PW-8333A-10-00 ...LENS COMP 1...LENS COMP 1
-
497707-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
539P-83320-10-00 FRONT FLASHER LIGHT ASSY 2FRONT FLASHER LIGHT ASSY 2
-
639P-83331-00-00 ...BULB, FLASHER (12V-21/5W)...BULB, FLASHER (12V-21/5W)
-
75PW-8334A-10-00 ...LENS COMP 2...LENS COMP 2
-
897707-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
93D7-83318-10-00 STAY, FLASHER 1STAY, FLASHER 1
-
103C3-83330-30-00 REAR FLASHER LIGHT ASSY 1REAR FLASHER LIGHT ASSY 1
-
115PW-83331-00-00 ...BULB (12V-21/5W T20)...BULB (12V-21/5W T20)
-
125PW-8334A-10-00 ...LENS COMP 2...LENS COMP 2
-
1397706-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
-
142D1-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
153C3-83340-30-00 REAR FLASHER LIGHT ASSY 2REAR FLASHER LIGHT ASSY 2
-
165PW-83331-00-00 ...BULB (12V-21/5W T20)...BULB (12V-21/5W T20)
-
175PW-8333A-10-00 ...LENS COMP 1...LENS COMP 1
-
1897706-04012-00 ...SCREW, TAPPING...SCREW, TAPPING
