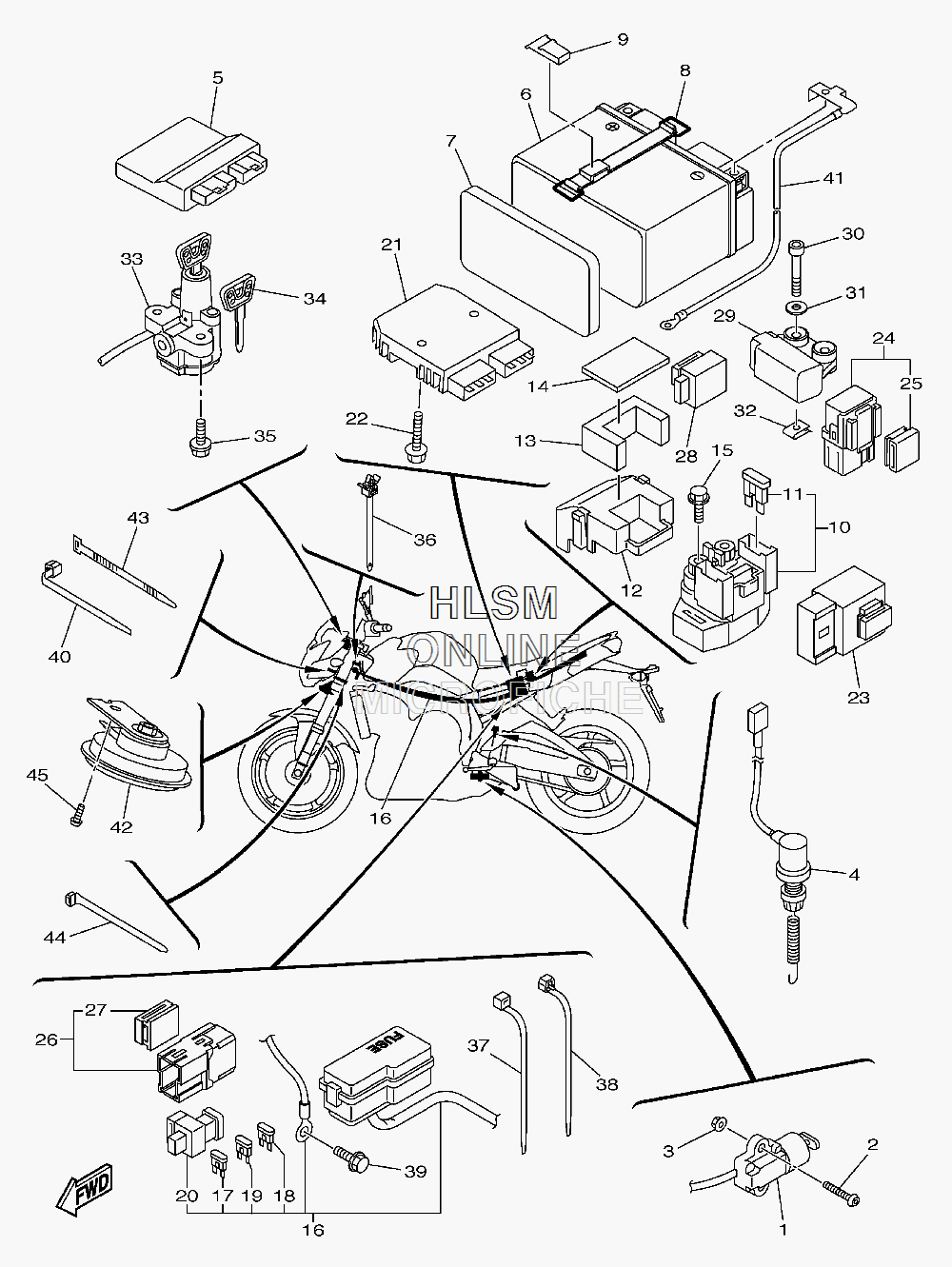

ELECTRICAL 2 для Yamaha FZ8 - 2011 года выпуска`
-
№АртикулНазвание
-
123P-82566-60-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
292012-05030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
395602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
439P-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
539P-8591A-10-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
65VY-82100-00-00 BATTERY ASSY (YUASA YTZ10S)BATTERY ASSY (YUASA YTZ10S)
-
739P-8246K-00-00 SPACERSPACER
-
82D1-82131-00-00 BAND, BATTERYBAND, BATTERY
-
95YU-2162A-00-00 HOOKHOOK
-
102C0-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1136Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
125SL-82119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
1339P-82176-00-00 DAMPERDAMPER
-
1439P-82157-00-00 DAMPERDAMPER
-
1595022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
1639P-82590-20-00 WIRE HARNESS ASSY (CALIF. ONLY)WIRE HARNESS ASSY (CALIF. ONLY)
-
1639P-82590-10-00 WIRE HARNESS ASSY (EXCEPT CALIF.)WIRE HARNESS ASSY (EXCEPT CALIF.)
-
175JJ-82151-10-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
185JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
195JJ-82151-00-00 ...FUSE (7.5A-BL)...FUSE (7.5A-BL)
-
205JW-82151-10-00 ...FUSE (50A)...FUSE (50A)
-
211D7-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
2295822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
235VK-81950-40-00 RELAY ASSYRELAY ASSY
-
245JJ-81950-20-00 RELAY ASSYRELAY ASSY
-
255JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
265JJ-81950-20-00 RELAY ASSYRELAY ASSY
-
275JJ-81952-00-00 ...HOLDER, RELAY...HOLDER, RELAY
-
284MY-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
295PS-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
3091312-04025-00 BOLTBOLT
-
3190201-04030-00 WASHER, PLATEWASHER, PLATE
-
3290183-04039-00 NUT, SPRINGNUT, SPRING
-
3339P-82501-10-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
344BH-82511-09-00 BLANK KEYBLANK KEY
-
3590109-08195-00 BOLTBOLT
-
3690464-12036-00 CLAMPCLAMP
-
3790464-13073-00 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
3890464-15195-00 CLAMP (CALIF. ONLY)CLAMP (CALIF. ONLY)
-
3991380-06010-00 BOLTBOLT
-
4090464-13077-00 CLAMPCLAMP
-
412D1-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
4239P-83371-00-00 HORNHORN
-
4390465-10098-00 CLAMPCLAMP
-
4490464-59001-00 CLAMPCLAMP
-
4592012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
