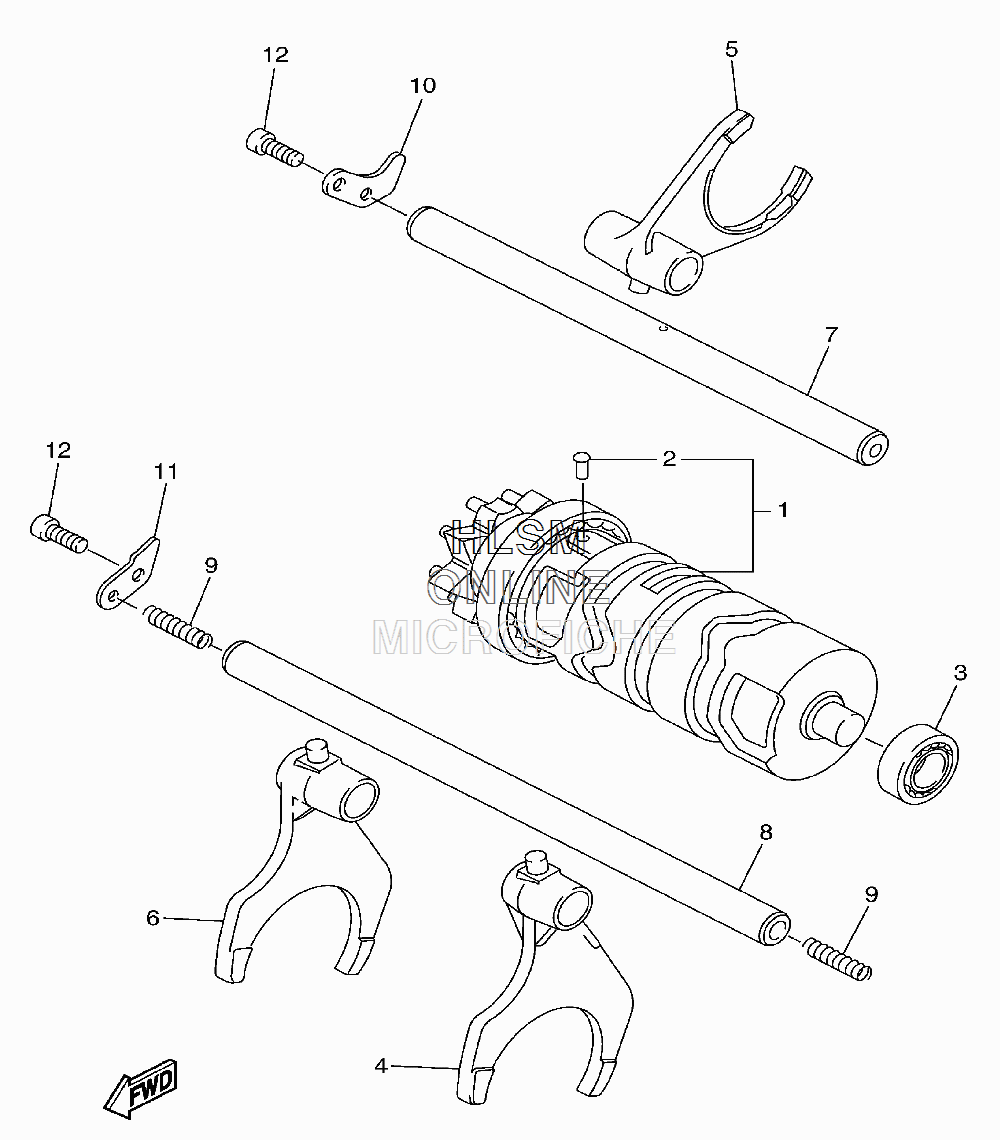

SHIFT CAM W/ FORK для Yamaha FZ8 - 2011 года выпуска`
-
№АртикулНазвание
-
15VY-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
2136-18542-00-00 ...POINT, NEUTRAL...POINT, NEUTRAL
-
393306-00106-00 BEARINGBEARING
-
42D1-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
539P-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
65VY-18513-01-00 FORK, SHIFT 3FORK, SHIFT 3
-
75VY-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
85VY-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
-
990501-064L1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
105VY-18536-00-00 STOPPER, SHIFT BARSTOPPER, SHIFT BAR
-
115VY-18562-00-00 PLATE, STOPPER 2PLATE, STOPPER 2
-
1290110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
