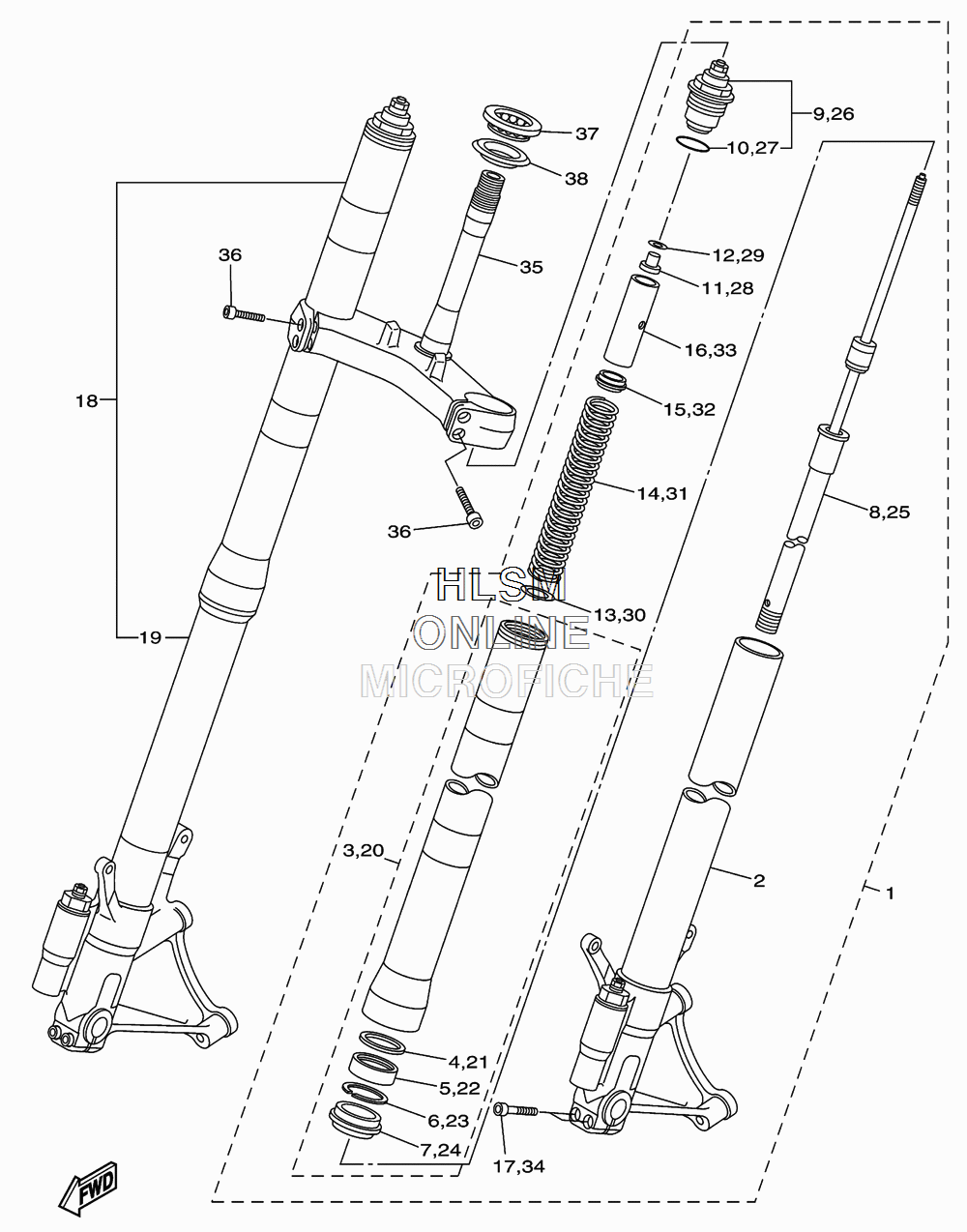

SUSPENSION - FRONT FORK для Yamaha YZF-R6 - 2010 года выпуска`
-
№АртикулНазвание
-
113S-23102-02-00 FRONT FORK ASSY (L.H) FOR DPBMCFRONT FORK ASSY (L.H) FOR DPBMC
-
113S-23102-12-00 FRONT FORK ASSY (L.H) FOR BWC1 & SMXFRONT FORK ASSY (L.H) FOR BWC1 & SMX
-
213S-23110-02-00 INNER TUBE COMP.1INNER TUBE COMP.1
-
313S-23106-00-00 OUTER TUBE COMP. FOR DPBMCOUTER TUBE COMP. FOR DPBMC
-
313S-23106-10-00 OUTER TUBE COMP. FOR BWC1 & SMXOUTER TUBE COMP. FOR BWC1 & SMX
-
43VD-23115-00-00 GUIDE, COVER UPPERGUIDE, COVER UPPER
-
55VU-23145-00-00 OIL SEALOIL SEAL
-
63VD-23156-00-00 RING, SNAPRING, SNAP
-
73VD-23144-00-00 SEAL, DUSTSEAL, DUST
-
813S-23170-00-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
913S-23111-00-00 BOLT, CAPBOLT, CAP
-
1093210-41N50-00 O-RINGO-RING
-
1113S-23393-00-00 NUT, SPECIALNUT, SPECIAL
-
1213S-2332N-00-00 PLATE, VALVE 2PLATE, VALVE 2
-
132C0-23143-00-00 SEAT, SPRING LOWERSEAT, SPRING LOWER
-
1413S-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
1513S-23142-00-00 SEAT, SPRING UPPERSEAT, SPRING UPPER
-
1613S-23118-00-00 SPACERSPACER
-
1791314-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1813S-23103-02-00 FRONT FORK ASSY (R.H) FOR DPBMCFRONT FORK ASSY (R.H) FOR DPBMC
-
1813S-23103-12-00 FRONT FORK ASSY (R.H) FOR BWC1 & SMXFRONT FORK ASSY (R.H) FOR BWC1 & SMX
-
1913S-23120-02-00 INNER TUBE COMP.2INNER TUBE COMP.2
-
2013S-23106-00-00 OUTER TUBE COMP. FOR DPBMCOUTER TUBE COMP. FOR DPBMC
-
2013S-23106-10-00 OUTER TUBE COMP. FOR BWC1 & SMXOUTER TUBE COMP. FOR BWC1 & SMX
-
213VD-23115-00-00 GUIDE, COVER UPPERGUIDE, COVER UPPER
-
225VU-23145-00-00 OIL SEALOIL SEAL
-
233VD-23156-00-00 RING, SNAPRING, SNAP
-
243VD-23144-00-00 SEAL, DUSTSEAL, DUST
-
2513S-23170-00-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
2613S-23111-00-00 BOLT, CAPBOLT, CAP
-
2793210-41N50-00 O-RINGO-RING
-
2813S-23393-00-00 NUT, SPECIALNUT, SPECIAL
-
2913S-2332N-00-00 PLATE, VALVE 2PLATE, VALVE 2
-
302C0-23143-00-00 SEAT, SPRING LOWERSEAT, SPRING LOWER
-
3113S-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
3213S-23142-00-00 SEAT, SPRING UPPERSEAT, SPRING UPPER
-
3313S-23118-00-00 SPACERSPACER
-
3491314-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3513S-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3691314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3793399-99957-00 BEARINGBEARING
-
383FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
