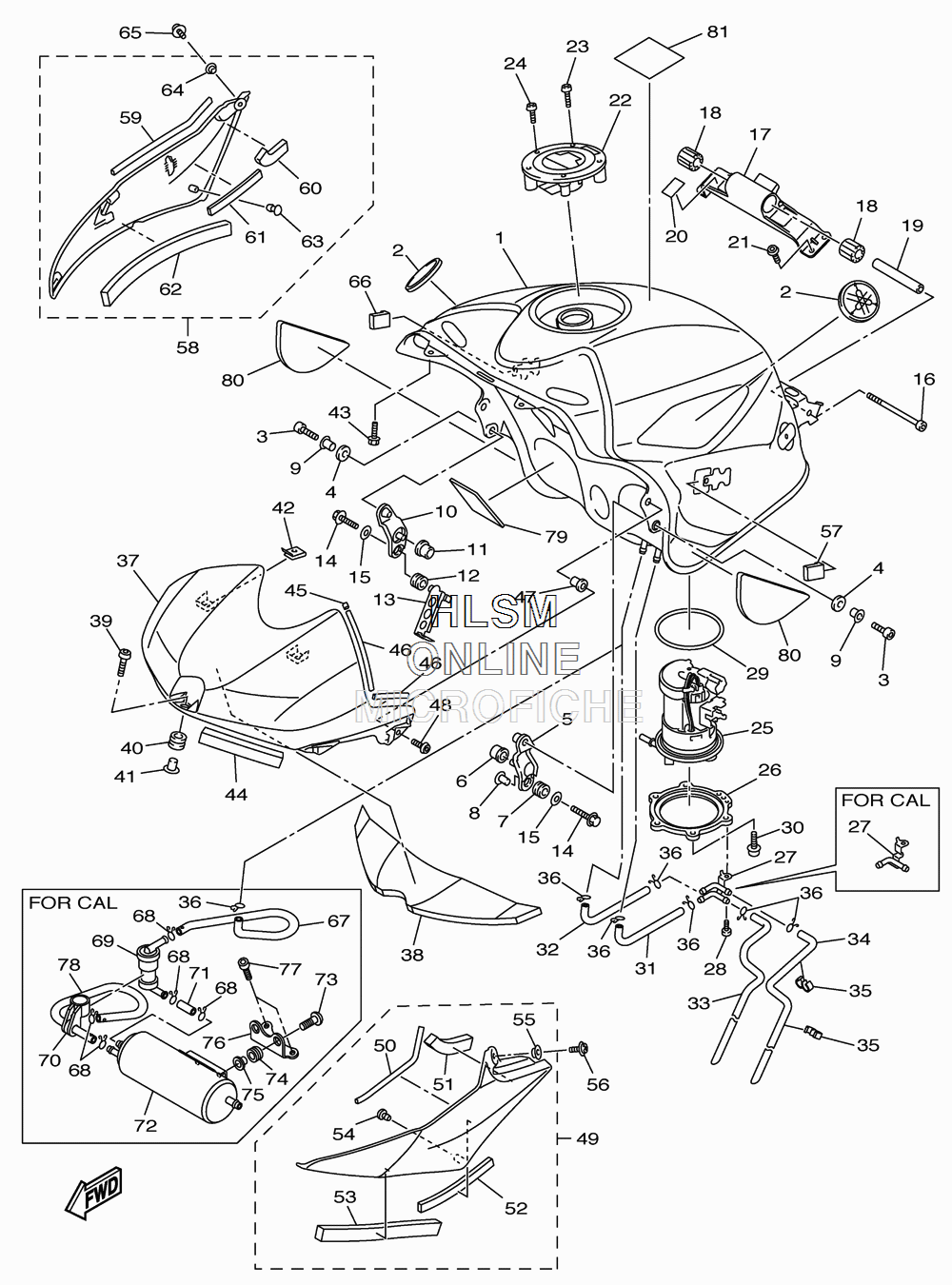

FUEL TANK для Yamaha YZF-R6 - 2010 года выпуска
-
№АртикулНазвание
-
113S-YK241-00-P0 FUEL TANK COMP. FOR DPBMCFUEL TANK COMP. FOR DPBMC
-
113S-YK241-00-P3 FUEL TANK COMP. FOR SMXFUEL TANK COMP. FOR SMX
-
113S-YK241-00-P1 FUEL TANK COMP. FOR BWC1FUEL TANK COMP. FOR BWC1
-
25SL-2413B-00-00 EMBLEMEMBLEM
-
391312-06016-00 BOLTBOLT
-
45VY-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
55VY-24191-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
65VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
790480-10542-00 GROMMETGROMMET
-
890387-066Y6-00 COLLARCOLLAR
-
990387-06143-00 COLLARCOLLAR
-
105VY-24192-00-00 BRACKET, FUEL TANK 2BRACKET, FUEL TANK 2
-
115VY-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
1290480-10542-00 GROMMETGROMMET
-
132C0-21339-00-00 GUIDE, WIREGUIDE, WIRE
-
1495022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1590201-06063-00 WASHER, PLATEWASHER, PLATE
-
1691312-06090-00 BOLTBOLT
-
172C0-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
185SL-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
1990387-06055-00 COLLARCOLLAR
-
202C0-21566-00-00 TAPE, 1TAPE, 1
-
2190111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
225JJ-24602-00-00 CAP ASSYCAP ASSY
-
2390110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2491312-05010-00 BOLTBOLT
-
254C8-13907-01-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
2613S-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
2713S-24135-00-00 CLAMP 1CLAMP 1
-
2713S-24135-10-00 CLAMP 1 (CALIF. ONLY)CLAMP 1 (CALIF. ONLY)
-
2890154-05012-00 SCREW, BINDINGSCREW, BINDING
-
295JW-24486-00-00 O-RINGO-RING
-
3090110-05028-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3113S-24315-00-00 PIPE 5PIPE 5
-
3213S-24316-00-00 PIPE 6PIPE 6
-
3313S-24317-00-00 PIPE 7 (EXCEPT CALIF)PIPE 7 (EXCEPT CALIF)
-
3313S-24317-10-00 PIPE 7 (CALIF. ONLY)PIPE 7 (CALIF. ONLY)
-
3413S-24313-00-00 PIPE 3PIPE 3
-
3590464-09M31-00 CLAMPCLAMP
-
3690467-09006-00 CLIP, SCISSOR (CALIF. ONLY)CLIP, SCISSOR (CALIF. ONLY)
-
3713S-2171A-00-P0 COVER, TOP FOR DPBMCCOVER, TOP FOR DPBMC
-
3713S-2171A-00-P7 COVER, TOP FOR SMXCOVER, TOP FOR SMX
-
3713S-2171A-00-P1 COVER, TOP FOR BWC1COVER, TOP FOR BWC1
-
3813S-24854-00-00 DAMPERDAMPER
-
3990110-06233-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4090480-12023-00 GROMMETGROMMET
-
4190387-06203-00 COLLARCOLLAR
-
4290183-05074-00 NUT, SPRINGNUT, SPRING
-
4390105-05014-00 BOLT, FLANGEBOLT, FLANGE
-
442C0-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
4513S-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
462C0-2414N-00-00 DAMPER, PLATE 4DAMPER, PLATE 4
-
4790179-05523-00 NUTNUT
-
4898902-05014-00 SCREW, BINDSCREW, BIND
-
4913S-24106-00-00 TANK SIDE COVER ASSY 1TANK SIDE COVER ASSY 1
-
504C8-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
512C0-2414P-00-00 DAMPER, PLATE 5DAMPER, PLATE 5
-
524C8-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
532C0-24184-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
5490338-06018-00 PLUGPLUG
-
5590387-05035-00 COLLARCOLLAR
-
5698902-05008-00 SCREW, BINDSCREW, BIND
-
575PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
5813S-24108-00-00 TANK SIDE COVER ASSY 2TANK SIDE COVER ASSY 2
-
594C8-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
602C0-2414P-00-00 DAMPER, PLATE 5DAMPER, PLATE 5
-
614C8-2414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
622C0-24184-00-00 DAMPER, LOCATING 4DAMPER, LOCATING 4
-
6390338-06018-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
6490387-05035-00 COLLARCOLLAR
-
6598902-05008-00 SCREW, BINDSCREW, BIND
-
665PW-2411J-01-00 DAMPER, SIDE COVER (CALIF. ONLY)DAMPER, SIDE COVER (CALIF. ONLY)
-
6713S-24314-00-00 PIPE 4 (CALIF. ONLY)PIPE 4 (CALIF. ONLY)
-
6890467-09006-00 CLIP (CALIF. ONLY)CLIP (CALIF. ONLY)
-
692C0-24180-00-00 ROLL OVER VALVE ASSY (CALIF. ONLY)ROLL OVER VALVE ASSY (CALIF. ONLY)
-
702C0-24398-00-00 BAND 1 (CALIF. ONLY)BAND 1 (CALIF. ONLY)
-
7190445-11065-00 HOSE (L30) (CALIF. ONLY)HOSE (L30) (CALIF. ONLY)
-
725EL-24170-00-00 CANISTER ASSY (CALIF. ONLY)CANISTER ASSY (CALIF. ONLY)
-
7390111-06091-00 BOLT,HEX. SOCKET BUTTON (CALIF. ONLY)BOLT,HEX. SOCKET BUTTON (CALIF. ONLY)
-
7490480-13018-00 GROMMET (CALIF. ONLY)GROMMET (CALIF. ONLY)
-
7590387-062L2-00 COLLAR (CALIF. ONLY)COLLAR (CALIF. ONLY)
-
762C0-2419F-00-00 BRACKET, CANISTOR (CALIF. ONLY)BRACKET, CANISTOR (CALIF. ONLY)
-
7790110-06175-00 BOLT, HEXAGON SOCKET HEAD (CALIF. ONLY)BOLT, HEXAGON SOCKET HEAD (CALIF. ONLY)
-
782C0-1443J-01-00 PIPE (CALIF. ONLY)PIPE (CALIF. ONLY)
-
7913S-24145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
802C0-24145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
814C8-2118K-00-00 LABEL, CAUTIONLABEL, CAUTION
