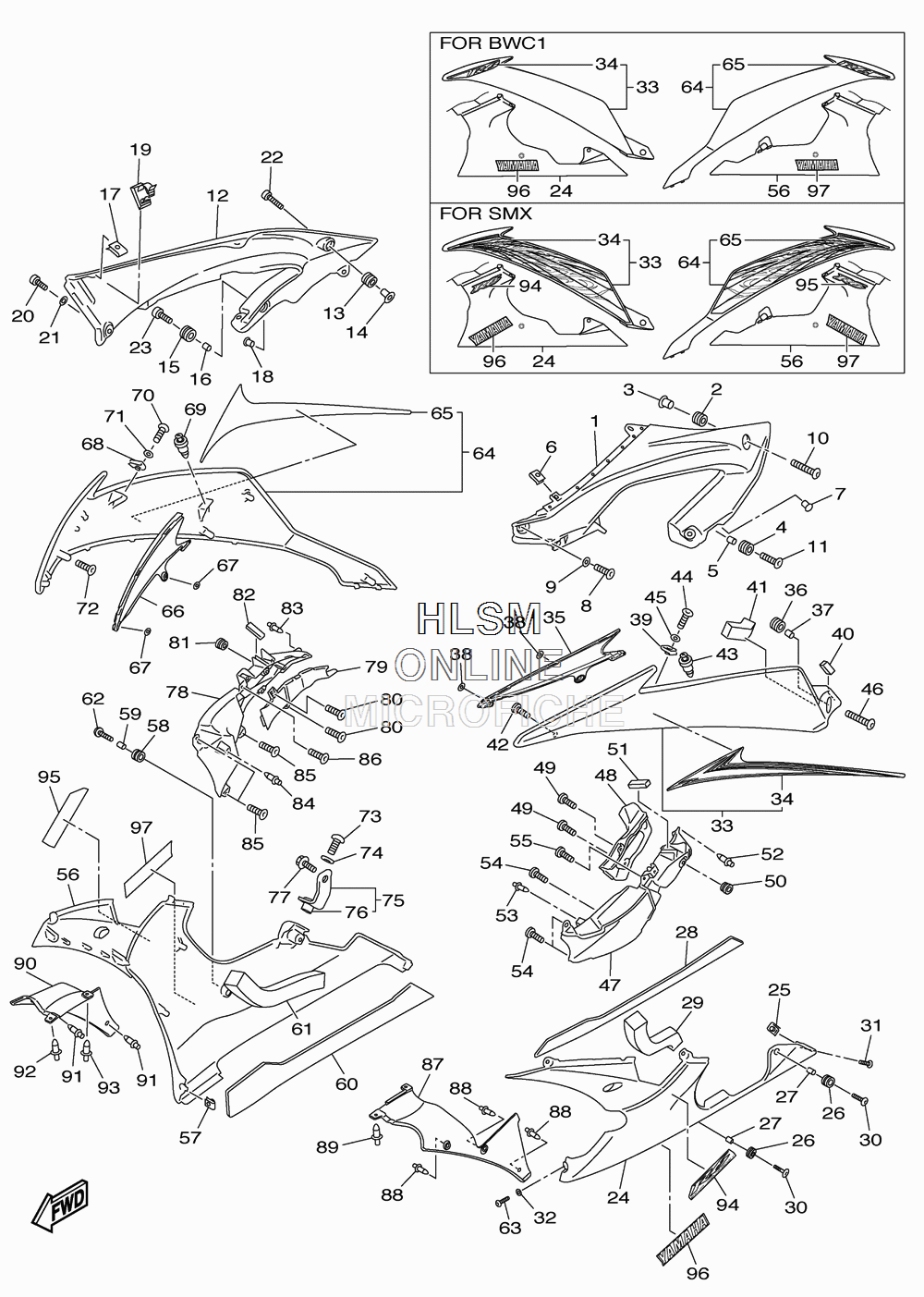

COWLING 2 для Yamaha YZF-R6 - 2010 года выпуска
-
№АртикулНазвание
-
113S-2117V-00-P0 COVER 7 FOR DPBMCCOVER 7 FOR DPBMC
-
113S-2117V-00-P3 COVER 7 FOR SMXCOVER 7 FOR SMX
-
113S-2117V-00-P1 COVER 7 FOR BWC1COVER 7 FOR BWC1
-
290480-12613-00 GROMMETGROMMET
-
390387-067K8-00 COLLARCOLLAR
-
490480-14003-00 GROMMETGROMMET
-
590387-06057-00 COLLARCOLLAR
-
690183-05076-00 NUT, SPRINGNUT, SPRING
-
790338-06134-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
890111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
990202-05180-00 WASHER, PLATEWASHER, PLATE
-
1090111-06063-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1190111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1213S-2117W-00-P1 COVER 8 FOR BWC1COVER 8 FOR BWC1
-
1213S-2117W-00-P0 COVER 8 FOR DPBMCCOVER 8 FOR DPBMC
-
1213S-2117W-00-P3 COVER 8 FOR SMXCOVER 8 FOR SMX
-
1390480-12613-00 GROMMETGROMMET
-
1490387-067K8-00 COLLARCOLLAR
-
1590480-14003-00 GROMMETGROMMET
-
1690387-06057-00 COLLARCOLLAR
-
1790183-05076-00 NUT, SPRINGNUT, SPRING
-
1890338-06134-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
1990464-20014-00 CLAMPCLAMP
-
2090111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2190202-05180-00 WASHER, PLATEWASHER, PLATE
-
2290111-06063-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2390111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2413S-28385-00-P1 COVER, UNDER FOR SMXCOVER, UNDER FOR SMX
-
2413S-28385-00-P3 COVER, UNDER FOR BWC1COVER, UNDER FOR BWC1
-
2590183-05076-00 NUT, SPRINGNUT, SPRING
-
2690480-14003-00 GROMMETGROMMET
-
2790387-06057-00 COLLARCOLLAR
-
2813S-2838G-00-00 SEAT 1SEAT 1
-
2913S-2836U-00-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
3090111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3190111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3290202-05180-00 WASHER, PLATEWASHER, PLATE
-
3313S-W283U-14-P0 GRAPHIC SET PANEL 1 FOR DPBMCGRAPHIC SET PANEL 1 FOR DPBMC
-
3313S-W283U-10-P1 GRAPHIC SET PANEL 1 FOR BWC1GRAPHIC SET PANEL 1 FOR BWC1
-
3313S-W283U-00-P9 GRAPHIC SET PANEL 1 FOR FOR SMXGRAPHIC SET PANEL 1 FOR FOR SMX
-
3413S-28391-D0-00 GRAPHIC, 1 FOR SMXGRAPHIC, 1 FOR SMX
-
3413S-28391-B0-00 GRAPHIC, 1 BWC1GRAPHIC, 1 BWC1
-
3413S-28391-C0-00 GRAPHIC, 1 FOR DPBMCGRAPHIC, 1 FOR DPBMC
-
3513S-28219-00-00 COVER 1COVER 1
-
3690480-14003-00 GROMMETGROMMET
-
3790387-06057-00 COLLARCOLLAR
-
3890183-05M02-00 NUT, SPRINGNUT, SPRING
-
3990183-05076-00 NUT, SPRINGNUT, SPRING
-
4013S-28415-00-00 DAMPER 1DAMPER 1
-
4113S-24183-00-00 DAMPER, LOCATING 3DAMPER, LOCATING 3
-
4297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
4390269-07007-00 RIVETRIVET
-
4490111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4590202-05180-00 WASHER, PLATEWASHER, PLATE
-
4690111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
4713S-2137U-00-00 GUIDE, AIR 1GUIDE, AIR 1
-
4813S-2137K-00-00 GUIDE, AIR 3GUIDE, AIR 3
-
4997702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
5090480-01558-00 GROMMETGROMMET
-
5113S-28217-00-00 DAMPER 1DAMPER 1
-
5290269-06008-00 RIVETRIVET
-
5390269-06081-00 RIVETRIVET
-
5497707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
5597702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
5613S-28395-00-P1 COVER, UNDER 2 FOR SMXCOVER, UNDER 2 FOR SMX
-
5613S-28395-00-P3 COVER, UNDER 2 FOR BWC1COVER, UNDER 2 FOR BWC1
-
5790183-05076-00 NUT, SPRINGNUT, SPRING
-
5890480-14003-00 GROMMETGROMMET
-
5990387-06057-00 COLLARCOLLAR
-
6013S-2848K-00-00 SEAT 2SEAT 2
-
6113S-2847R-00-00 DAMPER 10DAMPER 10
-
6290111-06040-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6390111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
6413S-W283V-10-P1 GRAPHIC SET PANEL 2 FOR BWC1GRAPHIC SET PANEL 2 FOR BWC1
-
6413S-W283V-14-P0 GRAPHIC SET PANEL 2 FOR DPBMCGRAPHIC SET PANEL 2 FOR DPBMC
-
6413S-W283V-00-P9 GRAPHIC SET PANEL 2 FOR SMXGRAPHIC SET PANEL 2 FOR SMX
-
6513S-28392-C0-00 GRAPHIC, 2 FOR DPBMCGRAPHIC, 2 FOR DPBMC
-
6513S-28392-B0-00 GRAPHIC, 2 FOR BWC1GRAPHIC, 2 FOR BWC1
-
6513S-28392-D0-00 GRAPHIC, 2 FOR SMXGRAPHIC, 2 FOR SMX
-
6613S-28229-00-00 COVER 2COVER 2
-
6790183-05M02-00 NUT, SPRINGNUT, SPRING
-
6890183-05076-00 NUT, SPRINGNUT, SPRING
-
6990269-07007-00 RIVETRIVET
-
7090111-05003-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
7190202-05180-00 WASHER, PLATEWASHER, PLATE
-
7297707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
7390109-06207-00 BOLTBOLT
-
7490202-10024-00 WASHER, PLATEWASHER, PLATE
-
7513S-2836G-00-00 BRACKET 4BRACKET 4
-
7690179-06059-00 NUTNUT
-
7790105-06020-00 BOLT, FLANGEBOLT, FLANGE
-
7813S-2137V-00-00 GUIDE, AIR 2GUIDE, AIR 2
-
7913S-2137L-00-00 GUIDE, AIR 4GUIDE, AIR 4
-
8097702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
8190480-01558-00 GROMMETGROMMET
-
8213S-28217-00-00 DAMPER 1DAMPER 1
-
8390269-06008-00 RIVETRIVET
-
8490269-06081-00 RIVETRIVET
-
8597707-50016-00 SCREW, TRUSS HEAD TAPPINGSCREW, TRUSS HEAD TAPPING
-
8697702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
8713S-2836L-00-00 PANEL, INNER 2PANEL, INNER 2
-
8890269-06008-00 RIVETRIVET
-
8990269-06002-00 RIVETRIVET
-
9013S-2836M-00-00 PANEL, INNER 3PANEL, INNER 3
-
9190269-06008-00 RIVETRIVET
-
9290269-06002-00 RIVETRIVET
-
9390269-06008-00 RIVETRIVET
-
9413S-28328-C0-00 EMBLEM FOR DPBMCEMBLEM FOR DPBMC
-
9413S-2839B-00-00 EMBLEM 3D FOR SMXEMBLEM 3D FOR SMX
-
9513S-2839B-00-00 EMBLEM 3D FOR SMXEMBLEM 3D FOR SMX
-
9513S-28338-C0-00 EMBLEM FOR DPBMCEMBLEM FOR DPBMC
-
964C8-2153E-10-00 EMBLEM, YAMAHA FOR SMXEMBLEM, YAMAHA FOR SMX
-
9613S-2153A-40-00 EMBLEM, YAMAHA FOR DPBMCEMBLEM, YAMAHA FOR DPBMC
-
9613S-2153E-60-00 EMBLEM, YAMAHA FOR BWC1EMBLEM, YAMAHA FOR BWC1
-
974C8-2153E-10-00 EMBLEM, YAMAHA FOR SMXEMBLEM, YAMAHA FOR SMX
-
9713S-2153A-40-00 EMBLEM, YAMAHA FOR DPBMCEMBLEM, YAMAHA FOR DPBMC
-
9713S-2153E-60-00 EMBLEM, YAMAHA FOR BWC1EMBLEM, YAMAHA FOR BWC1
