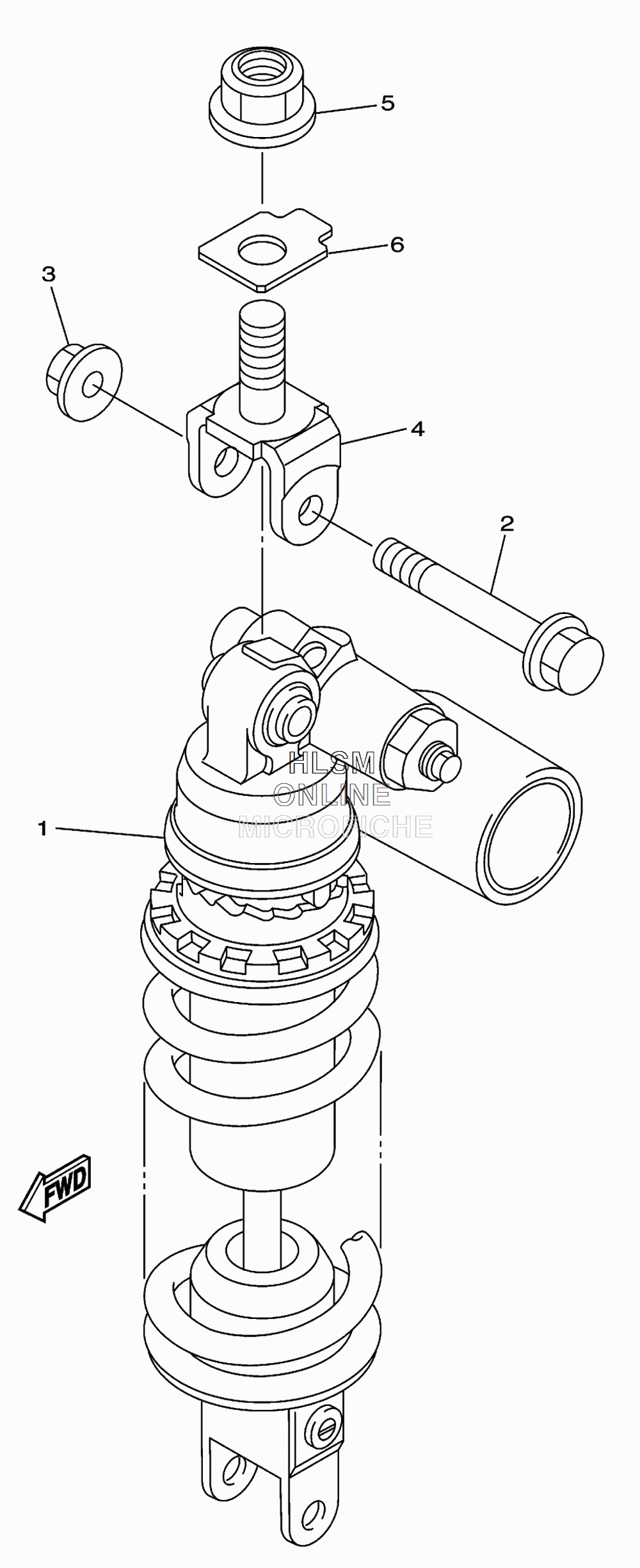

SUSPENSION - REAR SHOCK ABSORBER для Yamaha YZF-R6 - 2010 года выпуска`
-
№АртикулНазвание
-
113S-22210-A2-00 SHOCK ABSORBER ASSY, REAR FOR DPBMC & SMXSHOCK ABSORBER ASSY, REAR FOR DPBMC & SMX
-
113S-22210-82-00 SHOCK ABSORBER ASSY, REAR FOR BWC1SHOCK ABSORBER ASSY, REAR FOR BWC1
-
290105-10017-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
395602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
413S-22219-00-00 BRACKET, UPPERBRACKET, UPPER
-
595602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
613S-22243-00-00 WASHER 1WASHER 1
