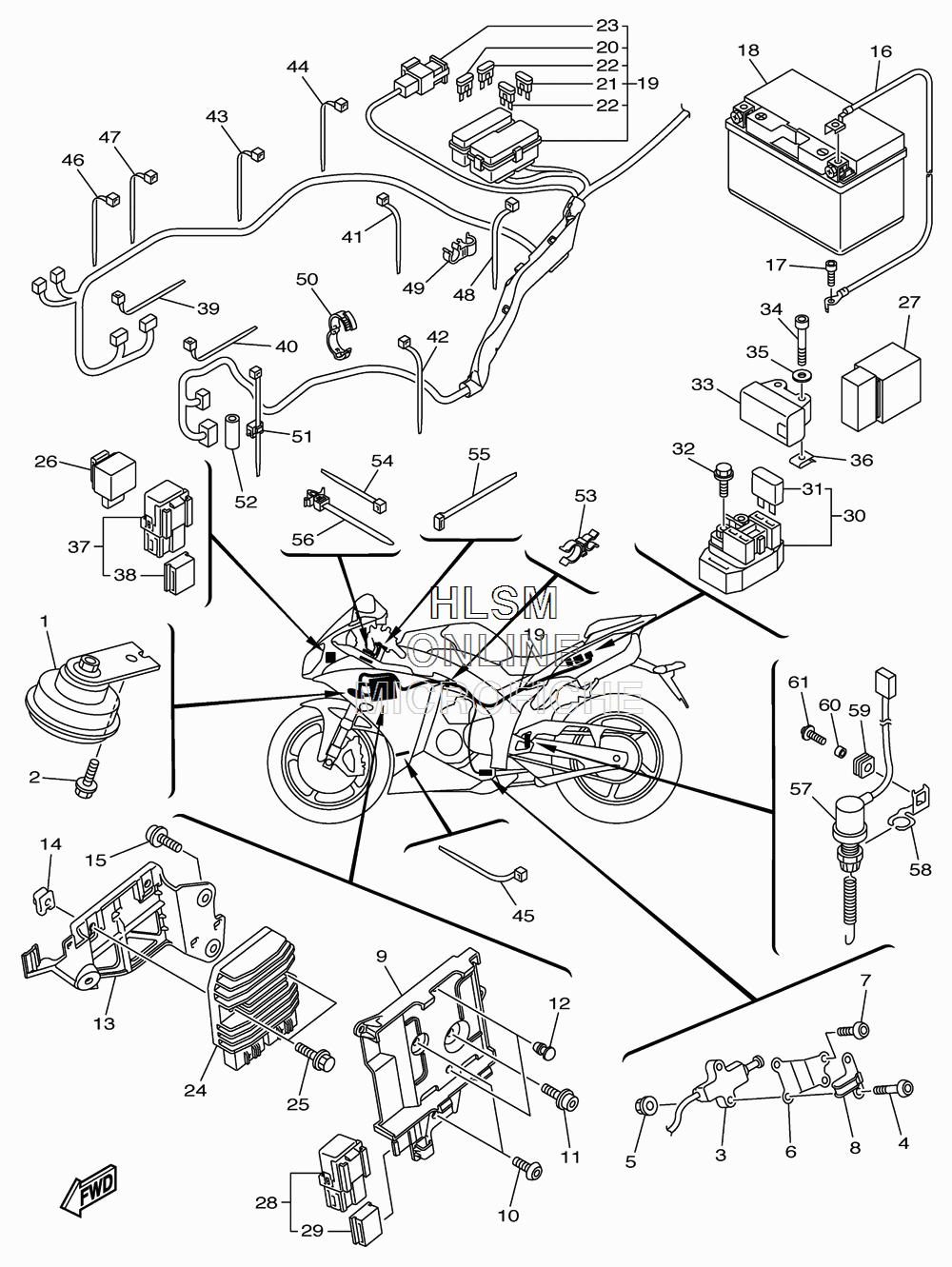

ELECTRICAL 2 для Yamaha YZF-R1 - 2010 года выпуска`
-
№АртикулНазвание
-
114B-83371-00-00 HORNHORN
-
295807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
313S-82566-50-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
492017-05025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
595607-05200-00 NUT, U FLANGENUT, U FLANGE
-
614B-27961-00-00 BRACKET, SENSOR 1BRACKET, SENSOR 1
-
792017-05016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
814B-27911-00-00 HOLDERHOLDER
-
914B-2836H-00-00 BRACKET 5BRACKET 5
-
1090111-06119-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1190110-06245-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290338-07180-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
1314B-2836J-00-00 BRACKET 6BRACKET 6
-
1490183-06069-00 NUT, SPRINGNUT, SPRING
-
1590110-06245-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1614B-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
1791312-06012-00 BOLTBOLT
-
18BTY-YTZ10-S0-00 BATTERY ASSY (YUASA YTZ10S)BATTERY ASSY (YUASA YTZ10S)
-
1914B-82590-12-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
205JJ-82151-20-00 FUSE (20A-BL)FUSE (20A-BL)
-
215JJ-82151-10-00 FUSE (15A-BL)FUSE (15A-BL)
-
225JJ-82151-00-00 FUSE (7.5A-BL)FUSE (7.5A-BL)
-
235JW-82151-10-00 FUSE (50A)FUSE (50A)
-
241D7-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
2590105-06148-00 BOLT, FLANGEBOLT, FLANGE
-
264MY-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
275VK-81950-40-00 RELAY ASSYRELAY ASSY
-
285JJ-81950-20-00 RELAY ASSYRELAY ASSY
-
295JJ-81952-00-00 HOLDER, RELAYHOLDER, RELAY
-
305JW-81940-02-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
3136Y-82151-00-00 FUSE (15A-BL)FUSE (15A-BL)
-
3295022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
335VU-82576-01-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
3491312-04025-00 BOLTBOLT
-
3590201-047A2-00 WASHER, PLATEWASHER, PLATE
-
3690183-04039-00 NUT, SPRINGNUT, SPRING
-
375JJ-81950-20-00 RELAY ASSYRELAY ASSY
-
385JJ-81952-00-00 HOLDER, RELAYHOLDER, RELAY
-
3990464-13073-00 CLAMPCLAMP
-
4090464-13073-00 CLAMPCLAMP
-
4190465-13M11-00 CLAMPCLAMP
-
4290464-16061-00 BANDBAND
-
4390464-16061-00 BANDBAND
-
4490464-13077-00 CLAMPCLAMP
-
4590464-13073-00 CLAMPCLAMP
-
4690464-13073-00 CLAMPCLAMP
-
4790464-13077-00 CLAMPCLAMP
-
4890464-13077-00 CLAMPCLAMP
-
4990464-12009-00 CLAMPCLAMP
-
5090464-16001-00 CLAMPCLAMP
-
5190464-36004-00 CLAMPCLAMP
-
5290445-107A5-00 HOSE (L30)HOSE (L30)
-
5390464-21256-00 CLAMPCLAMP
-
5490464-16061-00 BANDBAND
-
5590464-59001-00 CLAMPCLAMP
-
5690464-12089-00 CLAMPCLAMP
-
5714B-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
5814B-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
5990480-12607-00 GROMMETGROMMET
-
6090387-06M16-00 COLLARCOLLAR
-
6190159-06150-00 SCREW, WITH WASHERSCREW, WITH WASHER
