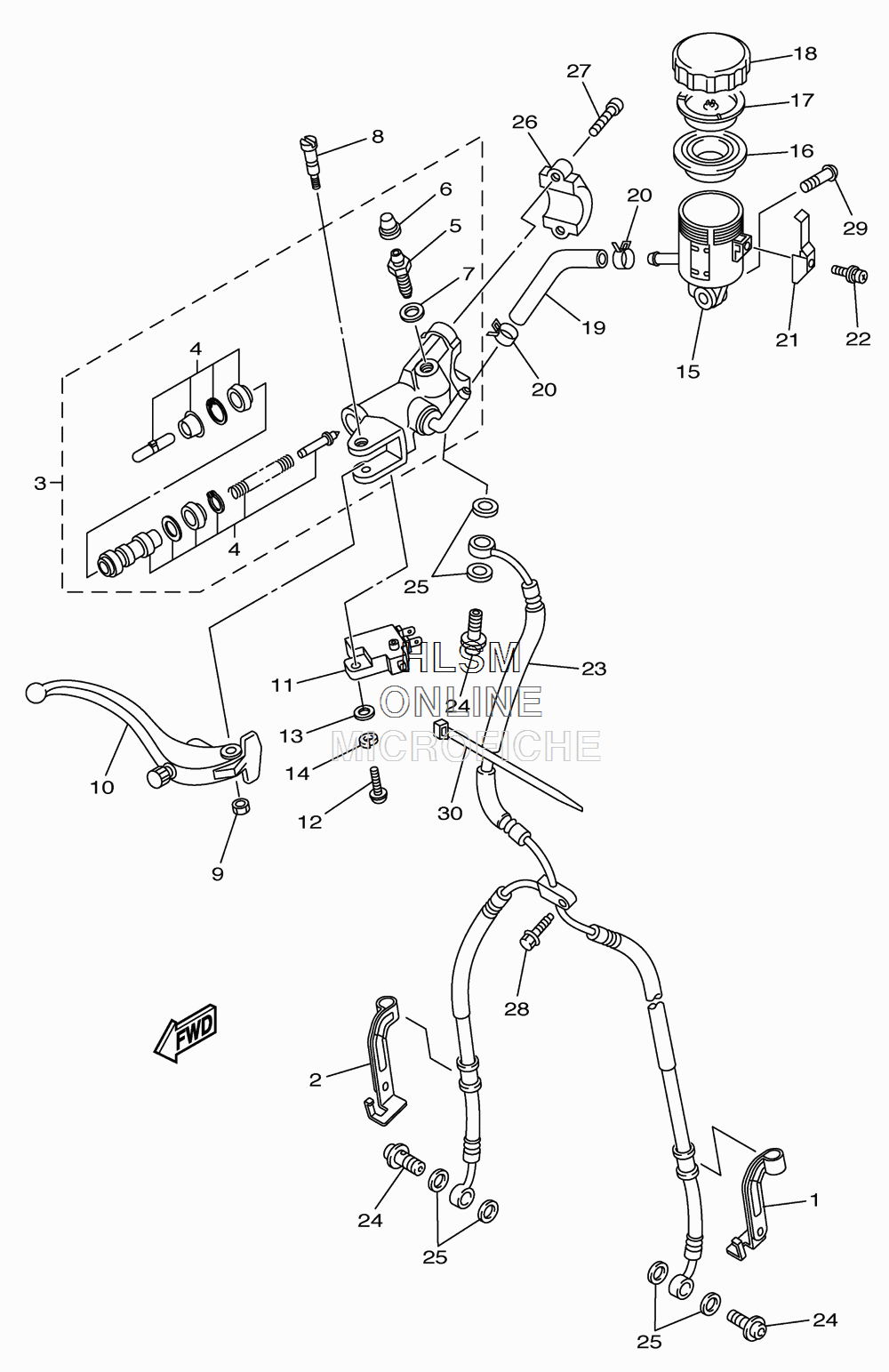

BRAKE - FRONT MASTER CYLINDER для Yamaha YZF-R1 - 2010 года выпуска`
-
№АртикулНазвание
-
114B-25875-00-00 HOLDER, BRAKE HOSE 1HOLDER, BRAKE HOSE 1
-
214B-25876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
314B-W2587-00-00 MASTER CYLINDER SUB ASSYMASTER CYLINDER SUB ASSY
-
42S3-W0041-00-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
53YK-25824-00-00 SCREW, BLEEDSCREW, BLEED
-
63YK-25825-00-00 CAPCAP
-
75VY-25975-00-00 SEAL 1SEAL 1
-
85VY-2589F-01-00 BOLT, LEVERBOLT, LEVER
-
995617-06100-00 NUT, UNUT, U
-
1014B-83922-00-00 LEVER 2LEVER 2
-
114HM-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
1298502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1392902-04100-00 WASHER, SPRINGWASHER, SPRING
-
1492902-04600-00 WASHER, PLATEWASHER, PLATE
-
155SL-25894-20-00 TANK, RESERVOIRTANK, RESERVOIR
-
165VY-25854-00-00 GASKET, DIAPHRAGMGASKET, DIAPHRAGM
-
175VY-25855-00-00 BUSH,DIAPHRAGMBUSH,DIAPHRAGM
-
185VY-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
195VY-25895-10-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
2090467-120A3-00 CLIPCLIP
-
215VY-2589G-00-00 HOLDERHOLDER
-
225VY-2589H-00-00 SCREWSCREW
-
2314B-25872-00-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
2490401-10172-00 BOLT, UNIONBOLT, UNION
-
2590430-10005-00 GASKETGASKET
-
265VS-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
275VS-26332-00-00 BOLTBOLT
-
2890105-06041-00 BOLT, FLANGEBOLT, FLANGE
-
2990111-05026-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3090464-59001-00 CLAMPCLAMP
