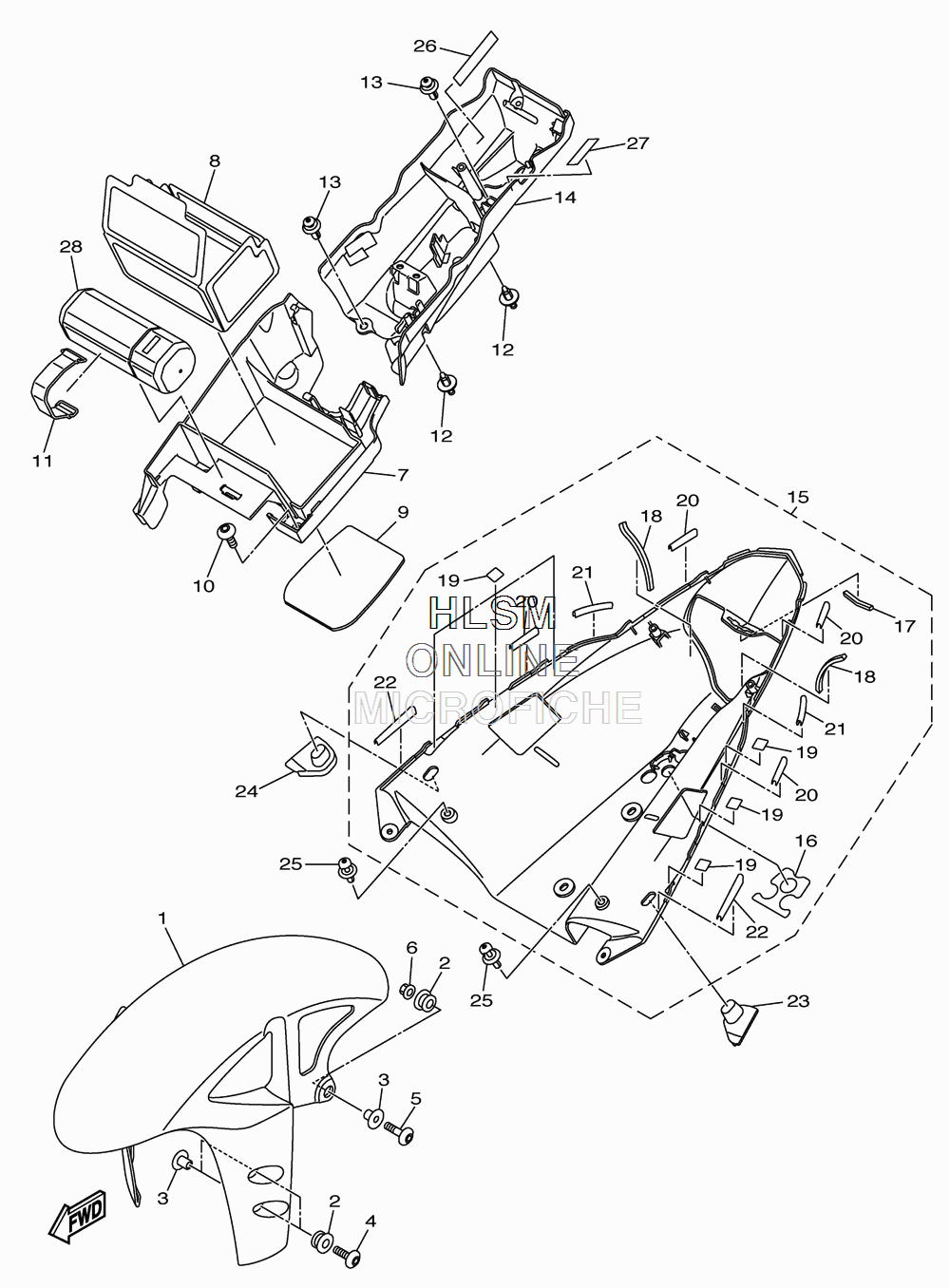

FENDER - FRONT / REAR для Yamaha YZF-R1 - 2010 года выпуска`
-
№АртикулНазвание
-
114B-21511-00-P0 FENDER, FRONT FOR SMXFENDER, FRONT FOR SMX
-
114B-21511-00-P1 FENDER, FRONT FOR BWC1FENDER, FRONT FOR BWC1
-
114B-21511-00-P2 FENDER, FRONT FOR DPBMCFENDER, FRONT FOR DPBMC
-
290480-12072-00 GROMMETGROMMET
-
390387-06159-00 COLLARCOLLAR
-
490111-06043-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
590111-06030-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
695702-06500-00 NUT, FLANGENUT, FLANGE
-
714B-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
814B-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
914B-82176-00-00 DAMPERDAMPER
-
1090149-06302-00 SCREW, SPEC'L SHAPESCREW, SPEC'L SHAPE
-
115JJ-82131-00-00 BAND, BATTERYBAND, BATTERY
-
1290269-07077-00 RIVETRIVET
-
1390269-07012-00 RIVETRIVET
-
1414B-8212C-00-00 BOX, BATTERY 2BOX, BATTERY 2
-
1514B-21600-00-P0 REAR FENDER ASSY. FOR SMXREAR FENDER ASSY. FOR SMX
-
1514B-21600-00-P0 REAR FENDER ASSY. FOR BWC1REAR FENDER ASSY. FOR BWC1
-
1514B-21600-00-P0 REAR FENDER ASSY. FOR DPBMCREAR FENDER ASSY. FOR DPBMC
-
1614B-21669-00-00 SEALSEAL
-
174GY-2174X-00-00 DAMPERDAMPER
-
183CV-28372-00-00 DAMPERDAMPER
-
194C8-21735-00-00 SEAL 2SEAL 2
-
205VY-21732-00-00 SEAL 1SEAL 1
-
215PW-21732-00-00 SEAL 1SEAL 1
-
2214B-21732-00-00 SEAL 1SEAL 1
-
2314B-21639-00-00 DAMPER 2DAMPER 2
-
2414B-21649-00-00 DAMPERDAMPER
-
2590269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
263JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
274BR-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
2814B-28100-00-00 TOOL KITTOOL KIT
