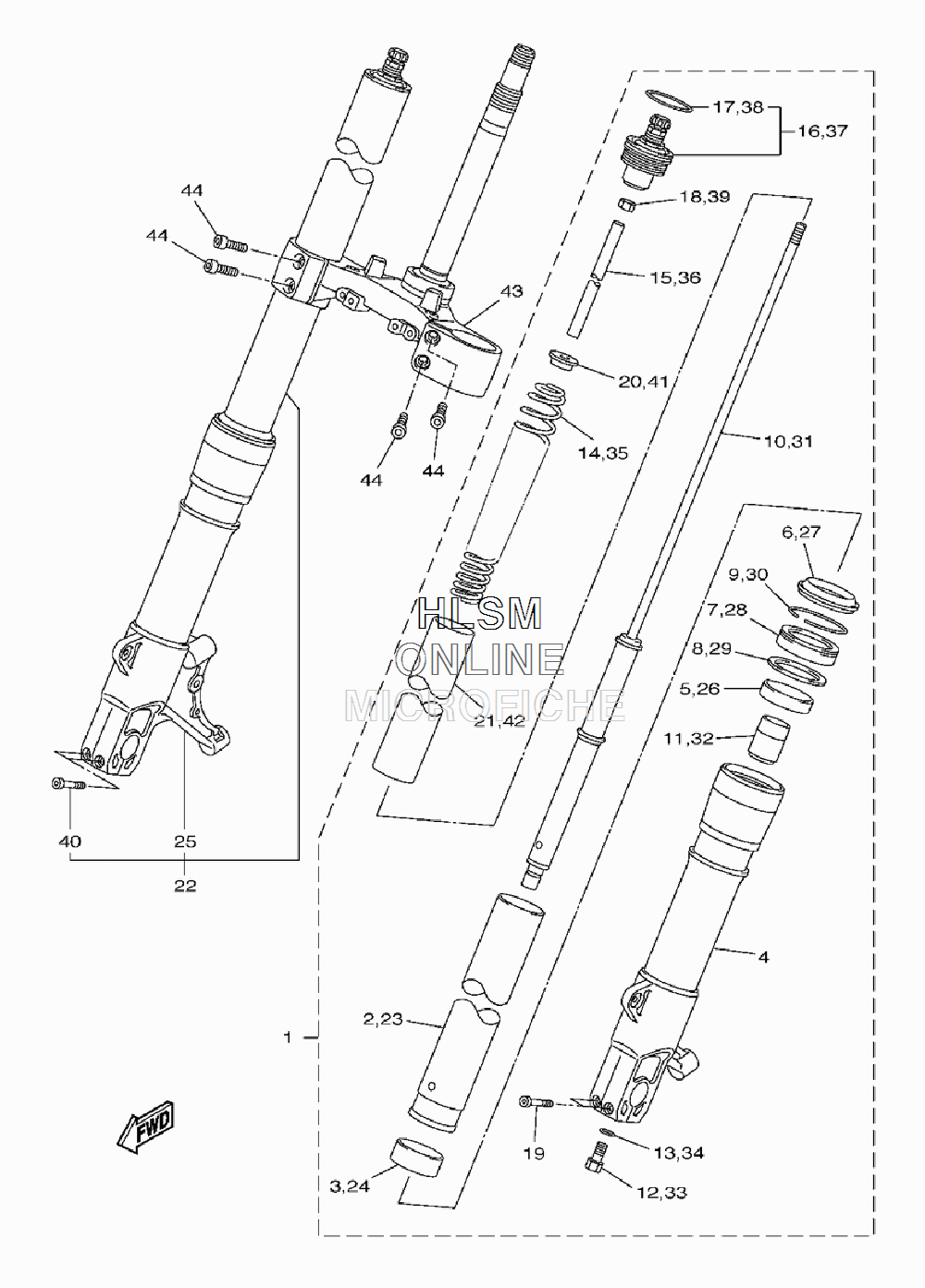

SUSPENSION - FRONT FORK для Yamaha VMAX - 2009 года выпуска`
-
№АртикулНазвание
-
12S3-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
22S3-23110-00-00 INNER TUBE COMP. 1INNER TUBE COMP. 1
-
32S3-23135-00-00 METAL, SLIDE 2METAL, SLIDE 2
-
42S3-23106-00-00 OUTER TUBE COMP. (L.H)OUTER TUBE COMP. (L.H)
-
52S3-23125-00-00 METAL, SLIDE 1METAL, SLIDE 1
-
62S3-23144-00-00 SEAL, DUSTSEAL, DUST
-
72S3-23145-00-00 OIL SEALOIL SEAL
-
82S3-23115-00-00 SEAT 1SEAT 1
-
92S3-23156-00-00 RING, SNAPRING, SNAP
-
102S3-23170-00-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
112S3-23173-00-00 SPINDLE, TAPERSPINDLE, TAPER
-
122S3-23394-00-00 BOLT, SPECIALBOLT, SPECIAL
-
1390430-10171-00 GASKETGASKET
-
142S3-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
152S3-23118-00-00 SPACERSPACER
-
162S3-23111-00-00 BOLT, CAPBOLT, CAP
-
17CS4-43862-40-00 O-RINGO-RING
-
1895302-10600-00 NUTNUT
-
1991314-08045-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
205YU-23142-00-00 SEAT, SPRING UPPERSEAT, SPRING UPPER
-
212S3-23104-00-00 REINF. COMP.REINF. COMP.
-
222S3-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
232S3-23110-00-00 INNER TUBE COMP. 1INNER TUBE COMP. 1
-
242S3-23135-00-00 METAL, SLIDE 2METAL, SLIDE 2
-
252S3-23107-00-00 OUTER TUBE COMP. (R.H)OUTER TUBE COMP. (R.H)
-
262S3-23125-00-00 METAL, SLIDE 1METAL, SLIDE 1
-
272S3-23144-00-00 SEAL, DUSTSEAL, DUST
-
282S3-23145-00-00 OIL SEALOIL SEAL
-
292S3-23115-00-00 SEAT 1SEAT 1
-
302S3-23156-00-00 RING, SNAPRING, SNAP
-
312S3-23170-00-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
322S3-23173-00-00 SPINDLE, TAPERSPINDLE, TAPER
-
332S3-23394-00-00 BOLT, SPECIALBOLT, SPECIAL
-
3490430-10171-00 GASKETGASKET
-
352S3-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
362S3-23118-00-00 SPACERSPACER
-
372S3-23111-00-00 BOLT, CAPBOLT, CAP
-
38CS4-43862-40-00 O-RINGO-RING
-
3995302-10600-00 NUTNUT
-
4091314-08045-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
415YU-23142-00-00 SEAT, SPRING UPPERSEAT, SPRING UPPER
-
422S3-23104-00-00 REINF. COMP.REINF. COMP.
-
432S3-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4491314-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
