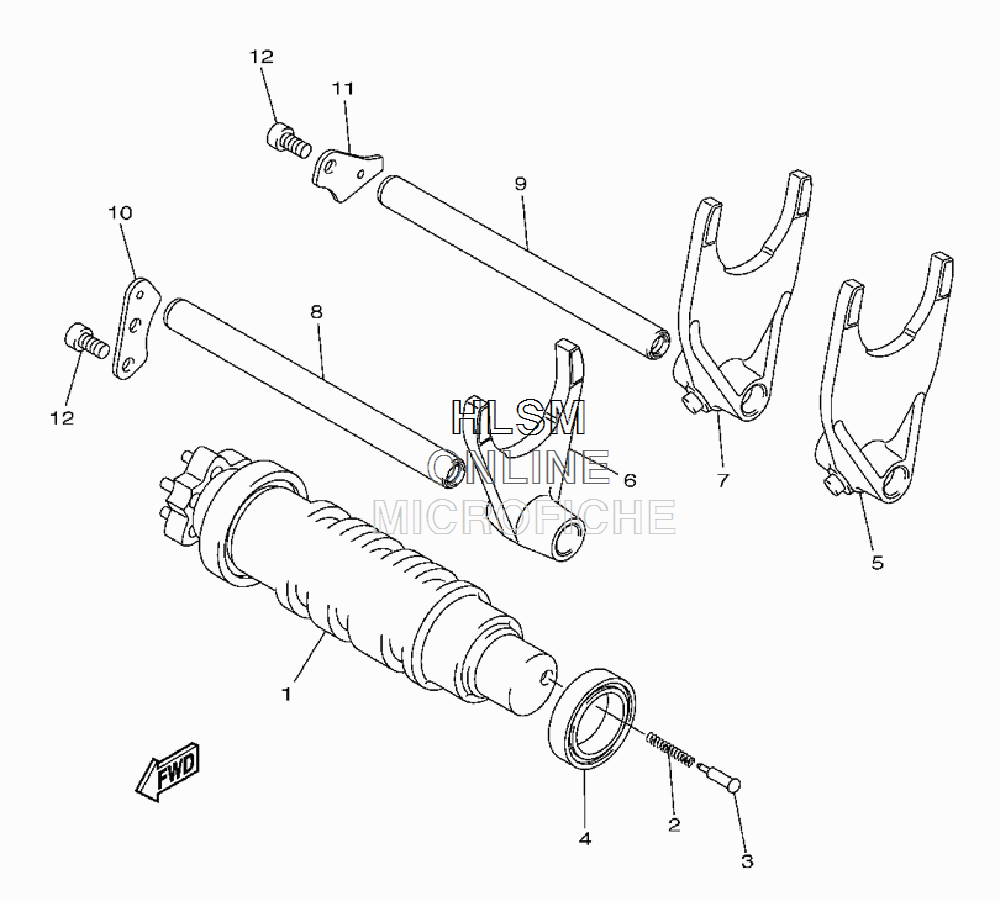

SHIFT CAM W/ FORK для Yamaha VMAX - 2009 года выпуска`
-
№АртикулНазвание
-
12S3-18540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
290501-06022-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
33D7-18542-00-00 POINT, NEUTRALPOINT, NEUTRAL
-
493306-80501-00 BEARINGBEARING
-
52S3-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
62S3-18512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
72S3-18513-00-00 FORK, SHIFT 3FORK, SHIFT 3
-
82S3-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
92S3-18535-00-00 BAR, SHIFT FORK GUIDE 2BAR, SHIFT FORK GUIDE 2
-
102S3-18536-00-00 STOPPER, SHIFT BARSTOPPER, SHIFT BAR
-
112S3-18562-00-00 PLATE, STOPPER 2PLATE, STOPPER 2
-
1290110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
