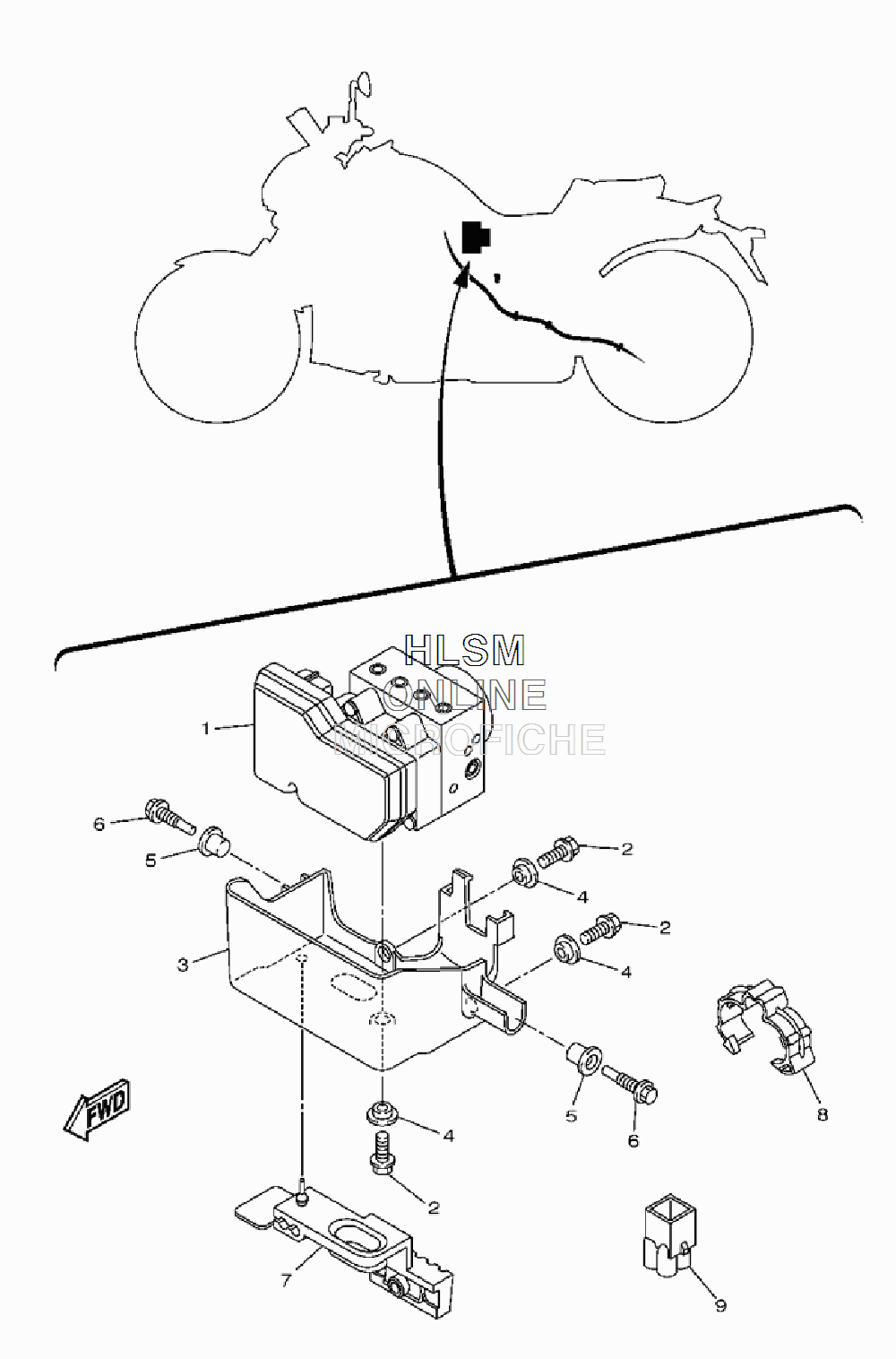

ELECTRICAL 3 для Yamaha VMAX - 2009 года выпуска`
-
№АртикулНазвание
-
12S3-85930-09-00 HYDRAULIC UNIT ASSYHYDRAULIC UNIT ASSY
-
295802-06012-00 BOLT, FLANGEBOLT, FLANGE
-
32S3-2160E-00-00 BOXBOX
-
490387-06130-00 COLLARCOLLAR
-
52S3-82176-00-00 DAMPERDAMPER
-
690109-08197-00 BOLTBOLT
-
72S3-85823-00-00 DAMPERDAMPER
-
890464-12013-00 CLAMPCLAMP
-
93YA-82378-00-00 CONNECTORCONNECTOR
