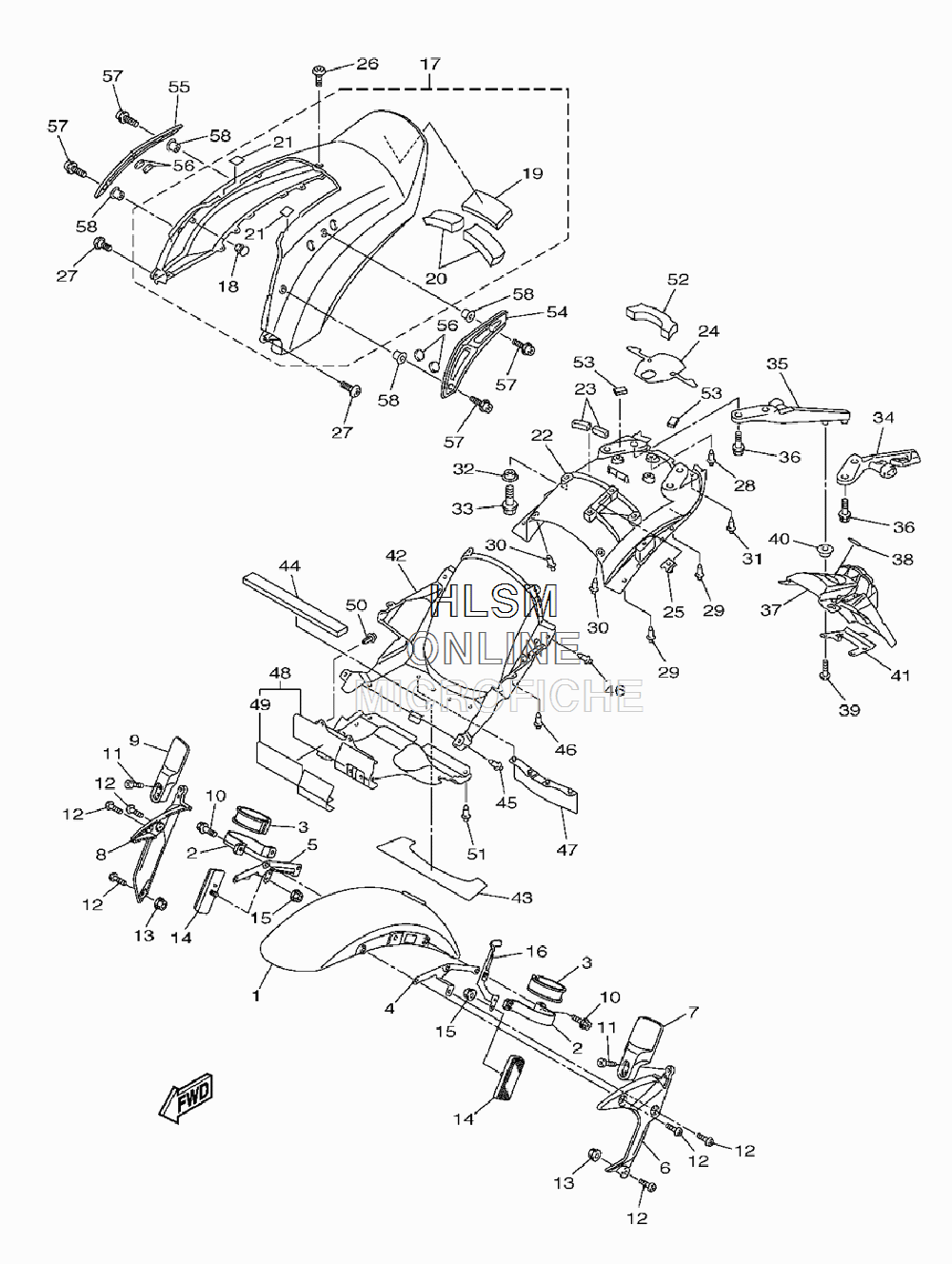

FENDER - FRONT / REAR для Yamaha VMAX - 2009 года выпуска
-
№АртикулНазвание
-
12S3-21511-00-P0 FENDER, FRONT (SMM)FENDER, FRONT (SMM)
-
22S3-21513-00-00 STAY, FENDER 1STAY, FENDER 1
-
32S3-21541-00-00 DAMPER 1DAMPER 1
-
42S3-21512-00-00 BRACKET, FENDERBRACKET, FENDER
-
52S3-21586-00-00 BRACKETBRACKET
-
62S3-23361-00-P0 ARM 1 FOR S8ARM 1 FOR S8
-
72S3-2110M-00-P1 COVER ASSY 1 FOR MBL2COVER ASSY 1 FOR MBL2
-
82S3-23371-00-P0 ARM 2 FOR S8ARM 2 FOR S8
-
92S3-2110N-00-P1 COVER ASSY 2 FOR MBL2COVER ASSY 2 FOR MBL2
-
1090110-06342-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1191314-06014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1290111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1395702-06500-00 NUT, FLANGENUT, FLANGE
-
1411H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
1595604-05200-00 NUT, U FLANGENUT, U FLANGE
-
162S3-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
172S3-21600-00-P0 REAR FENDER ASSY. (SMM)REAR FENDER ASSY. (SMM)
-
1890338-06018-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
192S3-84553-00-00 DAMPERDAMPER
-
202S3-2112D-00-00 DAMPER 3DAMPER 3
-
211UF-15379-00-00 SEALSEAL
-
222S3-2162R-00-00 FENDER 2FENDER 2
-
232S3-28347-00-00 MOLE 3MOLE 3
-
242S3-21669-00-00 SEALSEAL
-
2590183-06069-00 NUT, SPRINGNUT, SPRING
-
2690110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2790110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2890269-06008-00 RIVETRIVET
-
2990269-06008-00 RIVETRIVET
-
3090269-06008-00 RIVETRIVET
-
3190269-06008-00 RIVETRIVET
-
3290387-07027-00 COLLARCOLLAR
-
3395022-06014-00 BOLT, FLANGEBOLT, FLANGE
-
342S3-21689-00-00 BRACKET, REAR STAY 2BRACKET, REAR STAY 2
-
352S3-2161A-00-00 BRACKET 3BRACKET 3
-
3695814-06020-00 BOLT, FLANGEBOLT, FLANGE
-
372S3-21629-00-00 GUARD, MUDGUARD, MUD
-
384KN-2836B-10-00 TUNING FORK MARKTUNING FORK MARK
-
3992014-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4090387-06242-00 COLLARCOLLAR
-
412S3-2164F-00-00 STAY 1STAY 1
-
422S3-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
432S3-2172P-00-00 SEATSEAT
-
442S3-2414N-00-00 DAMPER, PLATE 4DAMPER, PLATE 4
-
4590269-06008-00 RIVETRIVET
-
4690269-06008-00 RIVETRIVET
-
472S3-21621-00-00 FLAPFLAP
-
482S3-2476U-00-00 PROTECTOR,1PROTECTOR,1
-
492S3-24193-00-00 SEAT, TANK PROTECTORSEAT, TANK PROTECTOR
-
5090269-07010-00 RIVETRIVET
-
5190269-06008-00 RIVETRIVET
-
522S3-2112C-00-00 DAMPER 2DAMPER 2
-
532S3-2112J-00-00 DAMPER 4DAMPER 4
-
542S3-2171E-00-00 COVER, SIDE 5COVER, SIDE 5
-
552S3-2171X-00-00 COVER, SIDE 6COVER, SIDE 6
-
562S3-21747-00-00 DAMPERDAMPER
-
5790110-05057-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
5890179-05523-00 NUTNUT
