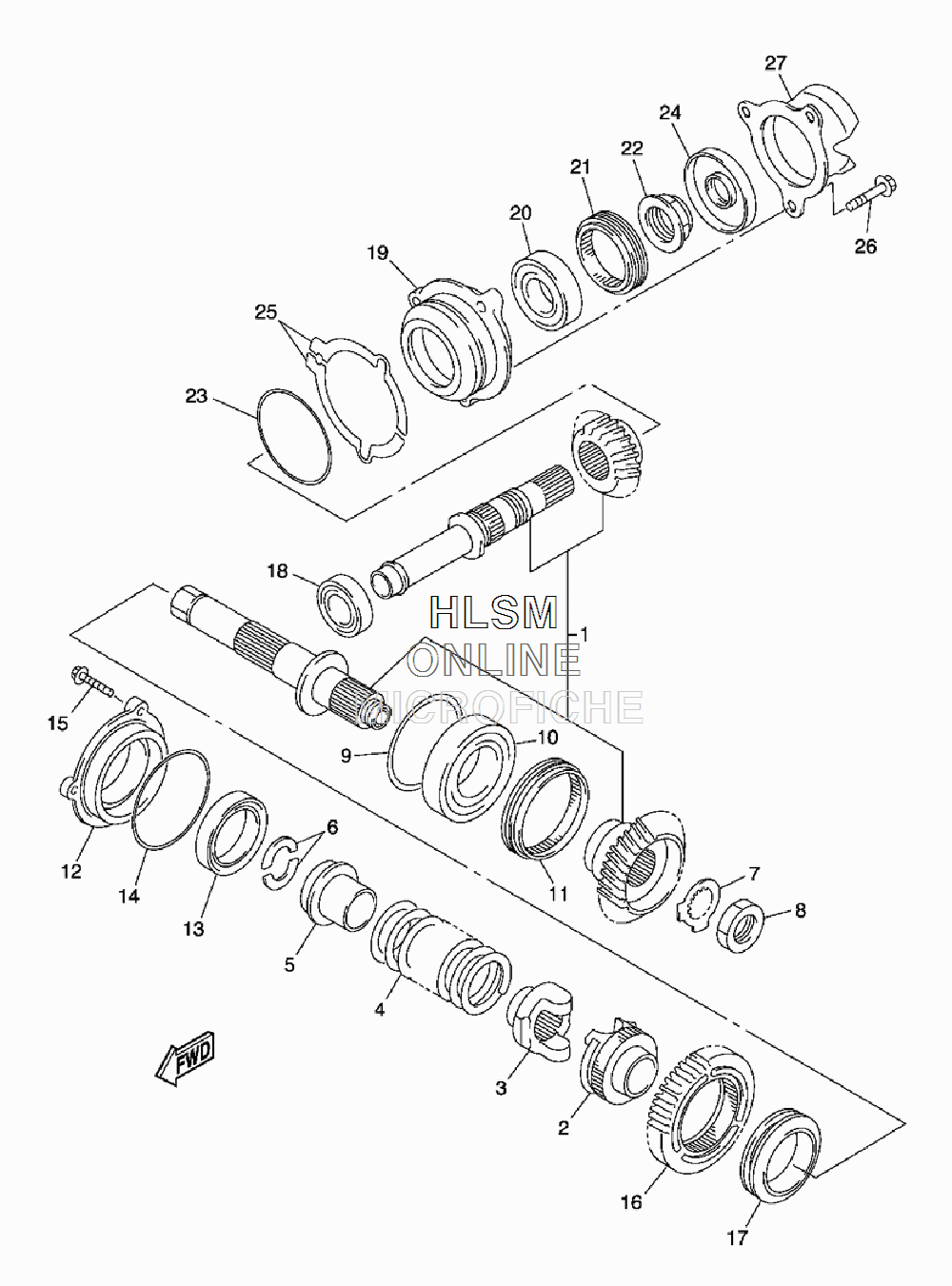

MIDDLE DRIVE GEAR для Yamaha FJR1300AE ABS - 2009 года выпуска`
-
№АртикулНазвание
-
15JW-W1751-00-00 MIDDLE GEAR COMP.MIDDLE GEAR COMP.
-
25JW-17526-00-00 CAM, DRIVECAM, DRIVE
-
35JW-17527-00-00 CAM, DRIVENCAM, DRIVEN
-
43P6-17493-00-00 SPRING, TRANSMISSION SHIFTSPRING, TRANSMISSION SHIFT
-
55JW-17524-00-00 HOLDERHOLDER
-
690209-21281-00 WASHER,SPEC'L SHAPEWASHER,SPEC'L SHAPE
-
790215-27003-00 WASHER, LOCKWASHER, LOCK
-
890179-22002-00 NUTNUT
-
94X7-17531-00-15 SHIM, PINION (0.15T)SHIM, PINION (0.15T)
-
94X7-17531-00-40 SHIM, PINION (0.40T)SHIM, PINION (0.40T)
-
94X7-17531-00-50 SHIM, PINION (0.50T)SHIM, PINION (0.50T)
-
94X7-17531-00-30 SHIM, PINION (0.30T)SHIM, PINION (0.30T)
-
1093306-20901-00 BEARINGBEARING
-
1190179-88336-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
125JW-17521-00-00 HOUSING, BEARINGHOUSING, BEARING
-
1393306-90901-00 BEARINGBEARING
-
1493210-84724-00 O-RINGO-RING
-
1590110-06326-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
163P6-17583-00-00 GEAR, MIDDLE DRIVEN (35T)GEAR, MIDDLE DRIVEN (35T)
-
1790387-53001-00 COLLARCOLLAR
-
1893306-00519-00 BEARINGBEARING
-
195JW-17551-00-00 HOUSING, BEARINGHOUSING, BEARING
-
2093306-20636-00 BEARINGBEARING
-
2190179-68001-00 NUTNUT
-
2290179-28005-00 NUTNUT
-
2393210-76546-00 O-RINGO-RING
-
2493102-25004-00 OIL SEALOIL SEAL
-
255JW-17531-00-00 SHIM, PINION (0.10T)SHIM, PINION (0.10T)
-
255JW-17531-10-00 SHIM, PINION (0.15T)SHIM, PINION (0.15T)
-
255JW-17531-20-00 SHIM, PINION (0.20T)SHIM, PINION (0.20T)
-
255JW-17531-30-00 SHIM, PINION (0.30T)SHIM, PINION (0.30T)
-
255JW-17531-40-00 SHIM, PINION (0.40T)SHIM, PINION (0.40T)
-
255JW-17531-50-00 SHIM, PINION (0.50T)SHIM, PINION (0.50T)
-
2690105-08108-00 BOLT, FLANGEBOLT, FLANGE
-
275JW-17538-00-00 CAP, HOUSINGCAP, HOUSING
