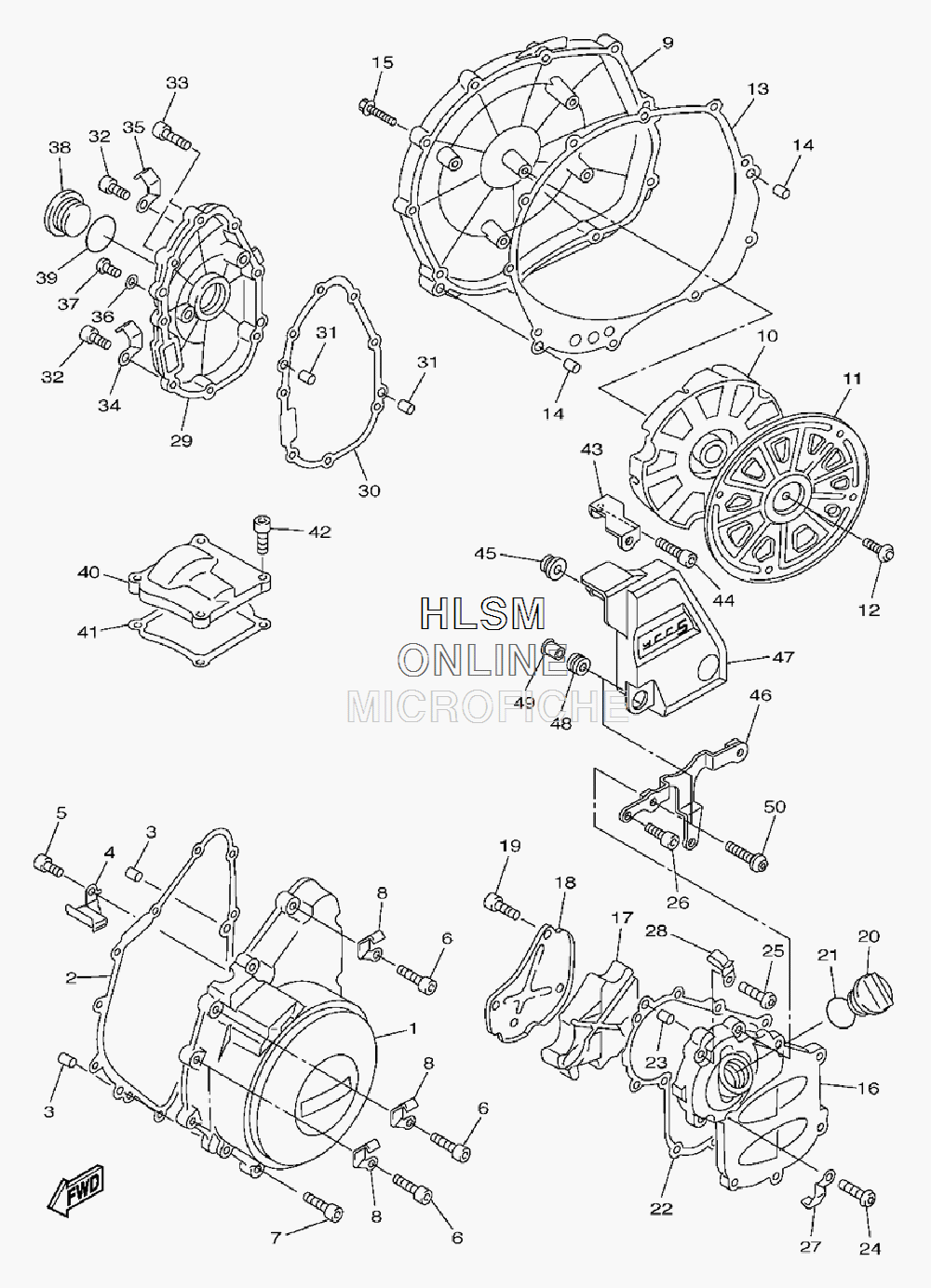

CRANKCASE COVER для Yamaha FJR1300AE ABS - 2009 года выпуска`
-
№АртикулНазвание
-
13P6-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
25JW-15451-11-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
399530-08012-00 PIN, DOWELPIN, DOWEL
-
45JW-15484-01-00 CLAMP 2CLAMP 2
-
598502-06010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
691314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
791314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
890462-08045-00 CLAMPCLAMP
-
95JW-15421-00-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
105JW-15326-00-00 DAMPER 2DAMPER 2
-
115JW-15492-00-00 COVERCOVER
-
1290111-06064-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
135JW-15461-11-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1493608-21002-00 PIN, DOWELPIN, DOWEL
-
1590110-06323-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
165JW-15431-10-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
175JW-15316-00-00 DAMPER 1DAMPER 1
-
185JW-15414-00-00 COVER, AIR CLEANERCOVER, AIR CLEANER
-
1990110-06182-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
203F9-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2193210-27194-00 O-RINGO-RING
-
225JW-15462-11-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
2399530-08012-00 PIN, DOWELPIN, DOWEL
-
2490149-06149-00 SCREWSCREW
-
2590149-06147-00 SCREWSCREW
-
2690149-06080-00 SCREWSCREW
-
2790462-08045-00 CLAMPCLAMP
-
2890465-08122-00 CLAMPCLAMP
-
295JW-15416-00-00 COVER, OIL PUMPCOVER, OIL PUMP
-
305JW-15456-11-00 GASKET, OIL PUMP COVER 1GASKET, OIL PUMP COVER 1
-
3199530-08012-00 PIN, DOWELPIN, DOWEL
-
3291314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3391314-06025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3490462-08045-00 CLAMPCLAMP
-
3590465-08050-00 CLAMPCLAMP
-
3690430-08143-00 GASKETGASKET
-
3792014-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3890340-32116-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
3993210-32172-00 O-RINGO-RING
-
405JW-15425-00-00 COVER, GENERATOR 2COVER, GENERATOR 2
-
415JW-15463-01-00 GASKET, COVER PINION 2GASKET, COVER PINION 2
-
4291312-06020-00 BOLTBOLT
-
432D2-1541A-00-00 STAY, CRANKCASECOVER 1STAY, CRANKCASECOVER 1
-
4490110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
4590480-10007-00 GROMMETGROMMET
-
462D2-1541E-00-00 STAY, COVERSTAY, COVER
-
472D2-15419-00-00 COVER, SHIFTER 1COVER, SHIFTER 1
-
4890480-13018-00 GROMMETGROMMET
-
4990387-066Y6-00 COLLARCOLLAR
-
5090149-06105-00 SCREWSCREW
