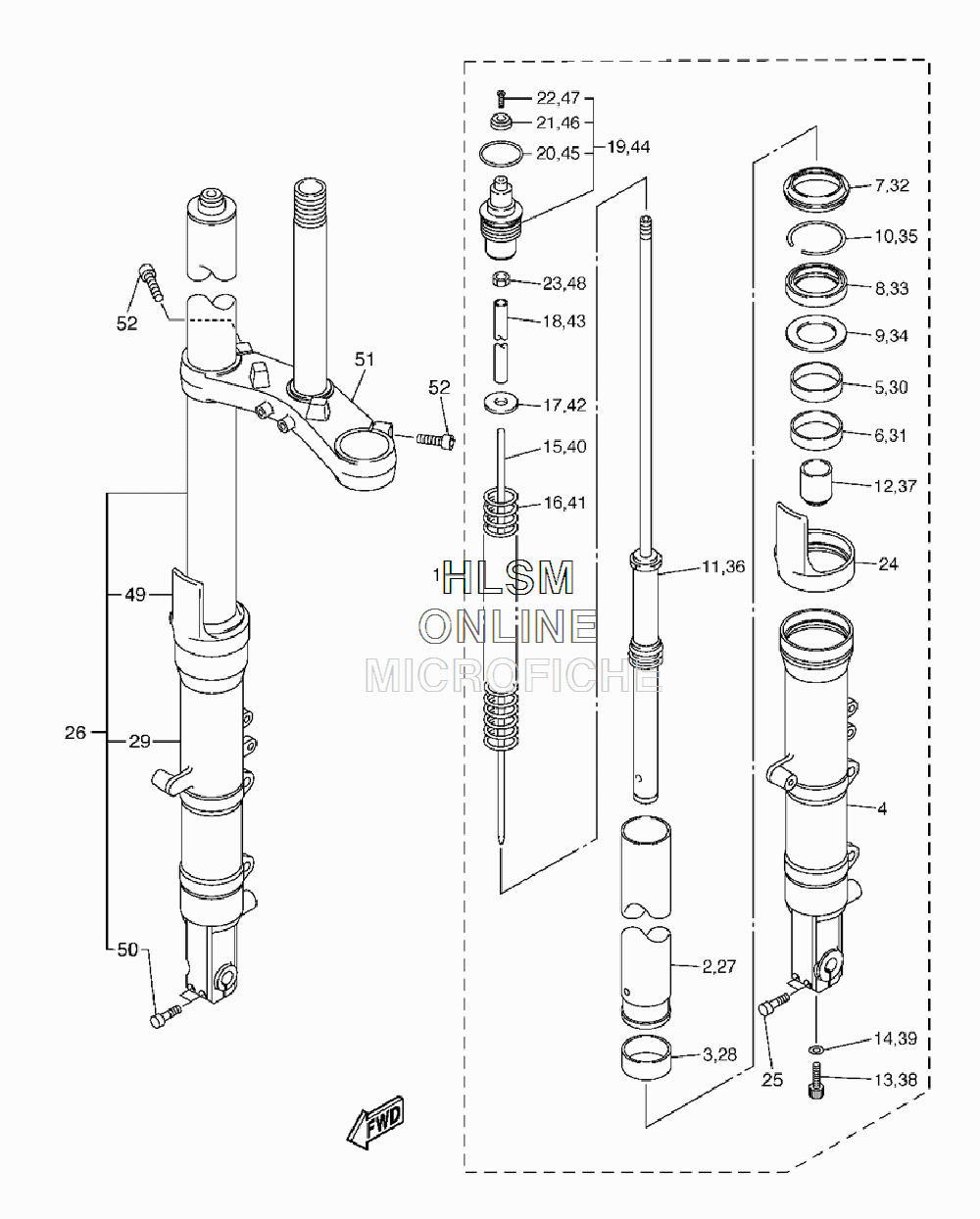

SUSPENSION - FRONT FORK для Yamaha FJR1300AE ABS - 2009 года выпуска`
-
№АртикулНазвание
-
13P6-23102-01-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
23P6-23110-00-00 INNER TUBE COMP. 1INNER TUBE COMP. 1
-
34SV-23135-10-00 METAL, SLIDE 2METAL, SLIDE 2
-
43P6-23106-01-00 OUTER TUBE COMP. (L.H)OUTER TUBE COMP. (L.H)
-
54SV-23125-10-00 METAL, SLIDE 1METAL, SLIDE 1
-
63P6-23135-00-00 METAL, SLIDE 2METAL, SLIDE 2
-
74SV-23144-00-00 SEAL, DUSTSEAL, DUST
-
84SV-23145-01-00 OIL SEALOIL SEAL
-
94SV-23115-00-00 GUIDE, COVER UPPERGUIDE, COVER UPPER
-
104SV-23156-00-00 RING, SNAPRING, SNAP
-
113P6-23170-00-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
125LV-23173-00-00 SPINDLE, TAPERSPINDLE, TAPER
-
1390110-10N52-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490430-10171-00 GASKETGASKET
-
155JW-2318Y-00-00 PLUNGERPLUNGER
-
163P6-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
1790201-10321-00 WASHER, PLATEWASHER, PLATE
-
185JW-23118-00-00 SPACERSPACER
-
195JW-23111-01-00 BOLT, CAPBOLT, CAP
-
2093210-40N50-00 O-RINGO-RING
-
215JW-2319W-00-00 CAPCAP
-
2290142-03N01-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
2395302-10600-00 NUTNUT
-
244SV-2331G-00-00 COVERCOVER
-
2591314-08045-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
263P6-23103-01-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
273P6-23110-00-00 INNER TUBE COMP. 1INNER TUBE COMP. 1
-
284SV-23135-10-00 METAL, SLIDE 2METAL, SLIDE 2
-
293P6-23107-01-00 OUTER TUBE COMP. (R.H)OUTER TUBE COMP. (R.H)
-
304SV-23125-10-00 METAL, SLIDE 1METAL, SLIDE 1
-
313P6-23135-00-00 METAL, SLIDE 2METAL, SLIDE 2
-
324SV-23144-00-00 SEAL, DUSTSEAL, DUST
-
334SV-23145-01-00 OIL SEALOIL SEAL
-
344SV-23115-00-00 GUIDE, COVER UPPERGUIDE, COVER UPPER
-
354SV-23156-00-00 RING, SNAPRING, SNAP
-
363P6-23170-00-00 CYLINDER COMP., FRONT FORKCYLINDER COMP., FRONT FORK
-
375LV-23173-00-00 SPINDLE, TAPERSPINDLE, TAPER
-
3890110-10N52-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3990430-10171-00 GASKETGASKET
-
405JW-2318Y-00-00 PLUNGERPLUNGER
-
413P6-23141-00-00 SPRING, FRONT FORKSPRING, FRONT FORK
-
4290201-10321-00 WASHER, PLATEWASHER, PLATE
-
435JW-23118-00-00 SPACERSPACER
-
445JW-23111-01-00 BOLT, CAPBOLT, CAP
-
4593210-40N50-00 O-RINGO-RING
-
465JW-2319W-00-00 CAPCAP
-
4790142-03N01-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
4895302-10600-00 NUTNUT
-
494SV-2331G-00-00 COVERCOVER
-
5091314-08045-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
513P6-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
5291312-08025-00 BOLTBOLT
