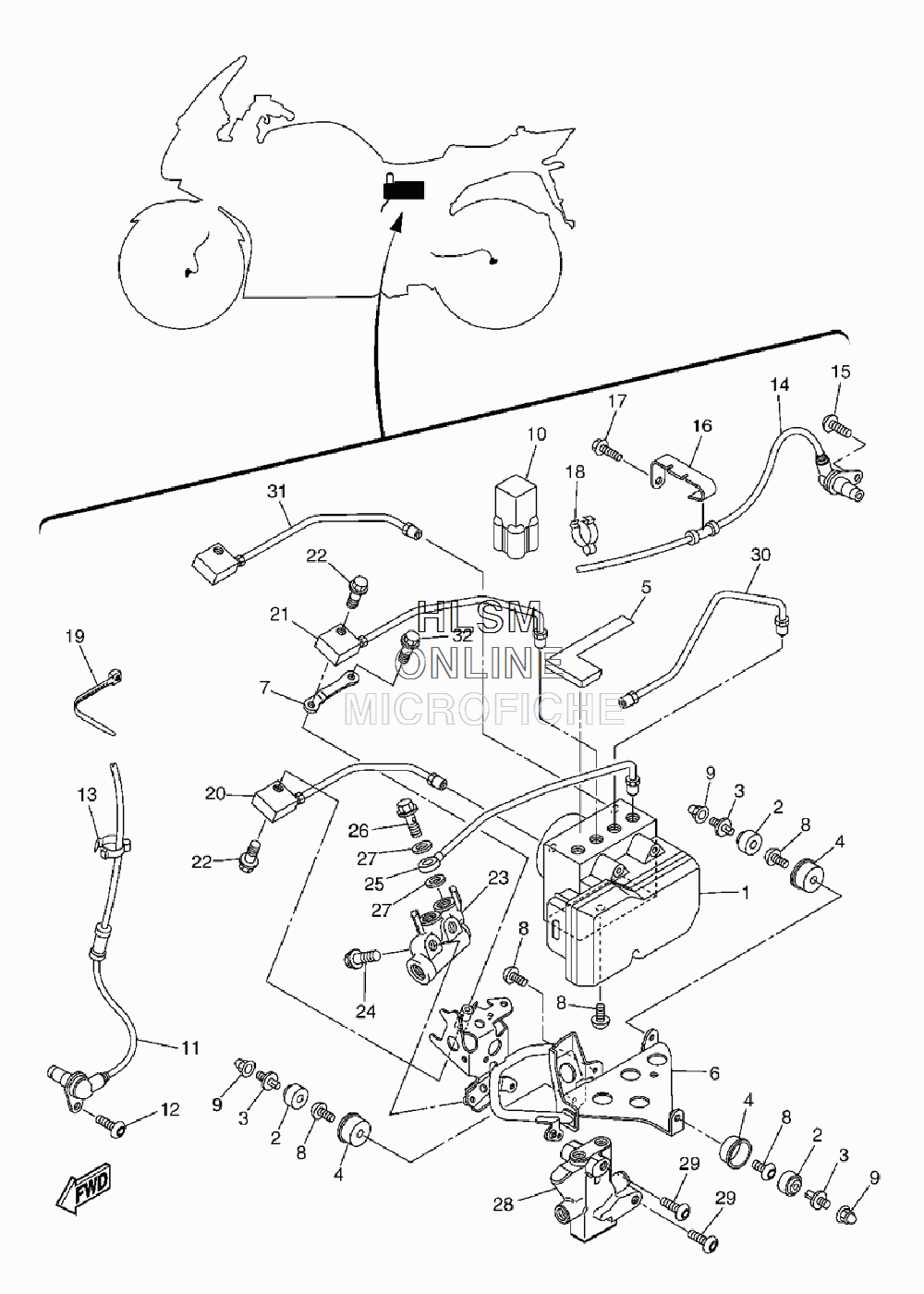

ELECTRICAL 3 для Yamaha FJR1300AE ABS - 2009 года выпуска`
-
№АртикулНазвание
-
13P6-85930-19-00 HYDRAULIC UNIT ASSYHYDRAULIC UNIT ASSY
-
25CG-85113-00-00 DAMPERDAMPER
-
35CG-2535E-00-00 BOLTBOLT
-
43P6-85916-00-00 CAP, DAMPERCAP, DAMPER
-
53P6-2117G-00-00 PROTECTORPROTECTOR
-
63P6-2175T-10-00 BRACKET 1BRACKET 1
-
73P6-2172E-00-00 STAY, SIDE COVER 1STAY, SIDE COVER 1
-
892012-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
990176-08026-00 NUT, CROWNNUT, CROWN
-
103YA-82378-00-00 CONNECTORCONNECTOR
-
113P6-85970-10-00 WHEEL SENSOR ASSY, FRONTWHEEL SENSOR ASSY, FRONT
-
1292014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1390464-14003-00 CLAMPCLAMP
-
143P6-85980-10-00 WHEEL SENSOR ASSY, REARWHEEL SENSOR ASSY, REAR
-
1592014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
163P6-86159-00-00 HOLDER, WIREHOLDER, WIRE
-
1790105-05014-00 BOLT, FLANGEBOLT, FLANGE
-
1890464-12013-00 CLAMPCLAMP
-
1990465-10098-00 BANDBAND
-
203P6-25871-10-00 PIPE, BRAKEPIPE, BRAKE
-
213P6-25882-20-00 PIPE, BRAKE 2PIPE, BRAKE 2
-
2295022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
233P6-25940-00-00 METERING VALVE ASSYMETERING VALVE ASSY
-
2495802-06030-00 BOLT, FLANGEBOLT, FLANGE
-
253P6-2588A-10-00 PIPE, BRAKE 4PIPE, BRAKE 4
-
2690401-10020-00 BOLT, UNIONBOLT, UNION
-
2790430-10005-00 GASKETGASKET
-
283P6-25884-00-00 VALVE, PROPORTIONINGVALVE, PROPORTIONING
-
2992012-06040-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
303P6-2588B-00-00 PIPE, BRAKE 5PIPE, BRAKE 5
-
313P6-25883-20-00 PIPE, BRAKE 3PIPE, BRAKE 3
-
3295022-06025-00 BOLT, FLANGEBOLT, FLANGE
