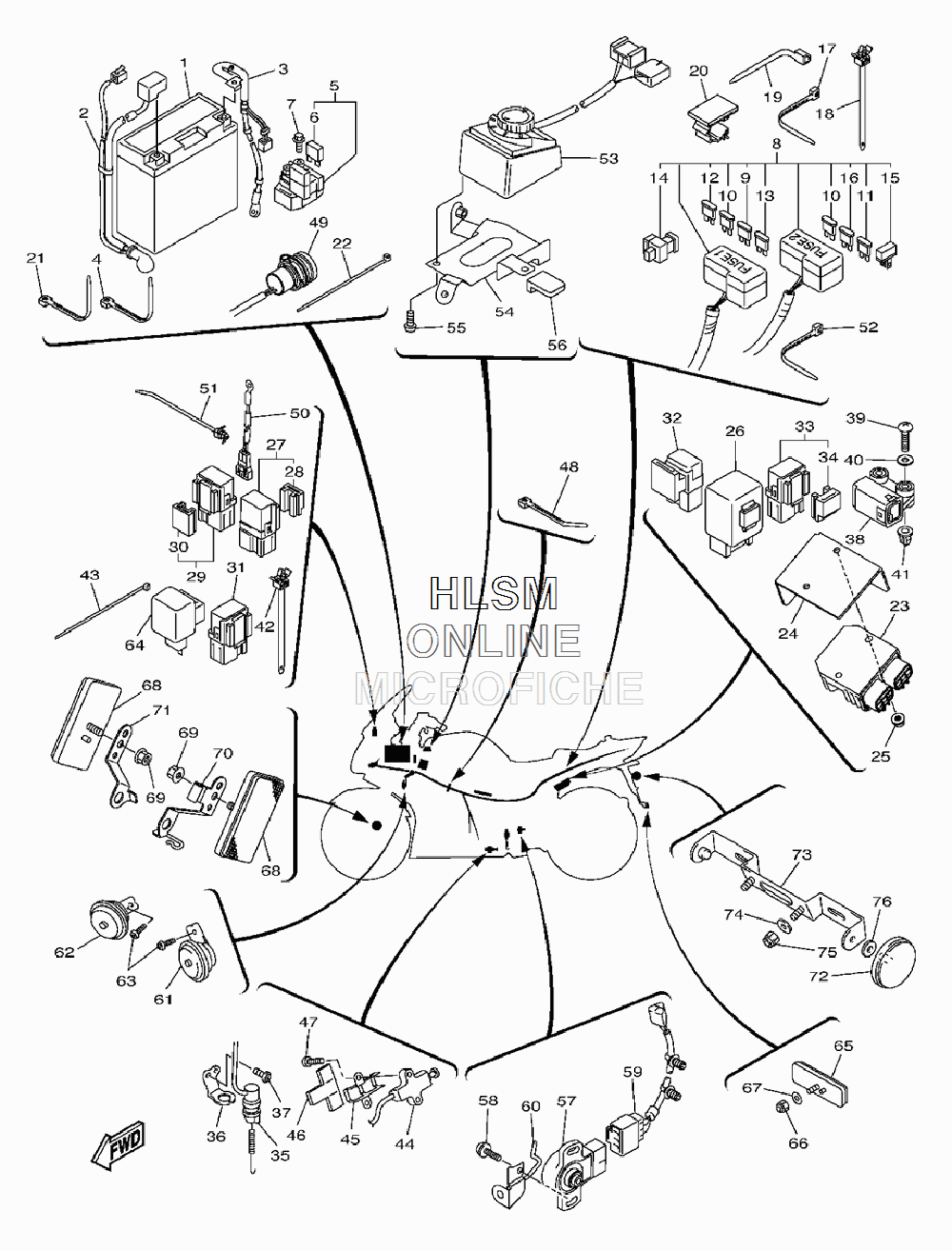

ELECTRICAL 2 для Yamaha FJR1300AE ABS - 2009 года выпуска`
-
№АртикулНазвание
-
15EA-82100-11-00 BATTERY ASSY (GS GT14B-4)BATTERY ASSY (GS GT14B-4)
-
23P6-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
33P6-82116-10-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
41UA-82591-00-00 BANDBAND
-
53P6-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
61AE-82151-00-00 FUSE (30A-BL)FUSE (30A-BL)
-
795022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
82D2-82590-70-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
95JJ-82151-50-00 FUSE (3A-BL)FUSE (3A-BL)
-
105JJ-82151-30-00 FUSE (10A-BL)FUSE (10A-BL)
-
115JJ-82151-10-00 FUSE (15A-BL)FUSE (15A-BL)
-
125JJ-82151-70-00 FUSE (25A-BL)FUSE (25A-BL)
-
135JJ-82151-60-00 FUSE (30A-BL)FUSE (30A-BL)
-
145JW-82151-10-00 FUSE (50A)FUSE (50A)
-
155VG-81980-00-00 DIODE ASSYDIODE ASSY
-
165JJ-82151-20-00 FUSE (20A-BL)FUSE (20A-BL)
-
1790465-10098-00 BANDBAND
-
1890464-12036-00 CLAMPCLAMP
-
1990464-13073-00 CLAMPCLAMP
-
2090464-13185-00 CLAMPCLAMP
-
2190465-13275-00 CLAMPCLAMP
-
225Y9-12491-00-00 CLAMP 1CLAMP 1
-
231D7-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
243P6-81975-00-00 PLATE, RECTIFIER FITTINGPLATE, RECTIFIER FITTING
-
2595602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
265VK-81950-30-00 RELAY ASSYRELAY ASSY
-
275EA-81950-20-00 RELAY ASSYRELAY ASSY
-
285EA-81952-00-00 HOLDER, RELAYHOLDER, RELAY
-
295EA-81950-20-00 RELAY ASSYRELAY ASSY
-
305EA-81952-00-00 HOLDER, RELAYHOLDER, RELAY
-
315JJ-81950-10-00 RELAY ASSYRELAY ASSY
-
325DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
335EA-81950-20-00 RELAY ASSYRELAY ASSY
-
345EA-81952-00-00 HOLDER, RELAYHOLDER, RELAY
-
353P6-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
365JW-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
3798902-05008-00 SCREW, BINDSCREW, BIND
-
385PS-82576-01-00 LEAN ANGLE SENSORLEAN ANGLE SENSOR
-
3997702-40025-00 SCREW, TAPPINGSCREW, TAPPING
-
4090201-04030-00 WASHER, PLATEWASHER, PLATE
-
414B4-84334-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
4290464-12036-00 CLAMPCLAMP
-
4390465-13152-00 BANDBAND
-
445PX-82566-51-00 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
453P6-82388-00-00 PLATEPLATE
-
463P6-82176-10-00 DAMPERDAMPER
-
4790157-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
4890465-10098-00 BANDBAND
-
493P6-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
505RU-85700-00-00 THERMISTOR ASSYTHERMISTOR ASSY
-
5190464-24001-00 CLAMPCLAMP
-
5290465-10098-00 BANDBAND
-
532D2-85590-00-00 CONTROL UNIT ASSYCONTROL UNIT ASSY
-
542D2-85542-00-00 BRACKETBRACKET
-
5597702-30510-00 SCREW, TAPPINGSCREW, TAPPING
-
565PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
572D2-85888-10-00 SENSOR ANGLESENSOR ANGLE
-
5890159-05041-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
592D2-82583-00-00 WIRE, LEADWIRE, LEAD
-
602D2-82119-10-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
615PS-83371-00-00 HORNHORN
-
623P6-83371-00-00 HORNHORN
-
6392012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
643GM-83350-01-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
-
653Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
6695602-05100-00 NUT, UNUT, U
-
6790201-05043-00 WASHER, PLATEWASHER, PLATE
-
6811H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
6995702-05500-00 NUT, WITH WASHERNUT, WITH WASHER
-
703P6-85112-10-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
713P6-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
72449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
735JW-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
7490201-06076-00 WASHER, PLATEWASHER, PLATE
-
7595602-06100-00 NUT, UNUT, U
-
7690201-05036-00 WASHER, PLATEWASHER, PLATE
