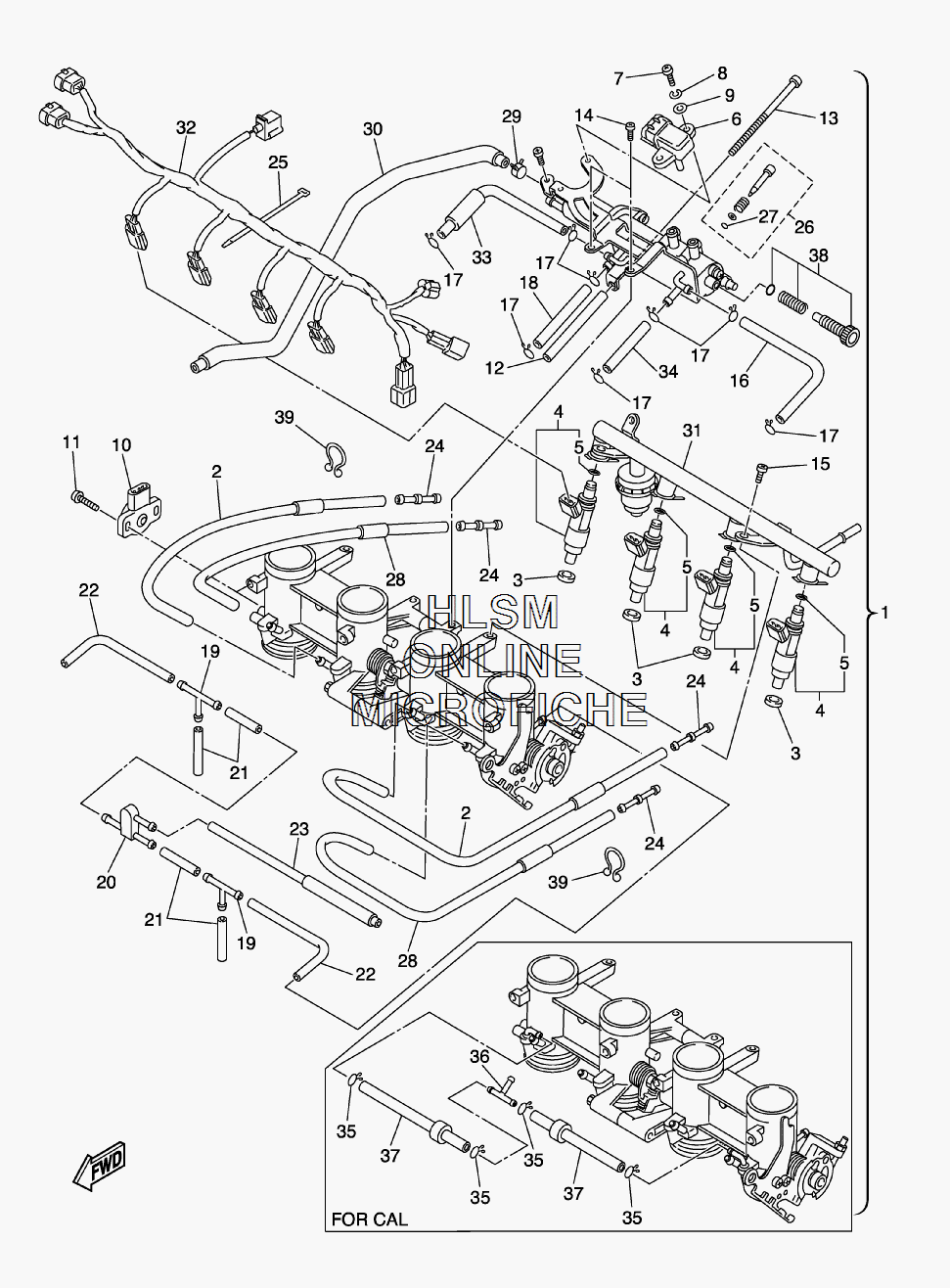

THROTTLE BODY ASSY. для Yamaha FZ6 - 2008 года выпуска`
-
№АртикулНазвание
-
15VX-13750-04-00 THROTTLE BODY ASSY (EXCEPT CALIF)THROTTLE BODY ASSY (EXCEPT CALIF)
-
15VX-13750-14-00 THROTTLE BODY ASSY (CALIF ONLY)THROTTLE BODY ASSY (CALIF ONLY)
-
25VX-14348-00-00 ...PIPE 1...PIPE 1
-
390430-09002-00 ...GASKET...GASKET
-
45VX-13761-00-00 ...INJECTOR...INJECTOR
-
55PS-14147-00-00 ...O-RING...O-RING
-
65VX-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
798507-05016-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
892907-05100-00 ...WASHER, SPRING (3SX)...WASHER, SPRING (3SX)
-
992907-05600-00 ...WASHER, PLATE (1RW)...WASHER, PLATE (1RW)
-
102D1-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
118CC-14216-10-00 ...SCREW...SCREW
-
125VX-14149-00-00 ...PIPE...PIPE
-
135VX-14565-00-00 ...SCREW...SCREW
-
1498507-05010-00 ...SCREW, PAN HEAD (3SX)...SCREW, PAN HEAD (3SX)
-
1598507-06012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
165VX-14396-00-00 ...PIPE...PIPE
-
173UH-14937-00-00 ...CLIP...CLIP
-
185VX-14987-00-00 ...HOSE...HOSE
-
1968V-24376-00-00 ...PIPE, JOINT 1 (T - FIT)...PIPE, JOINT 1 (T - FIT)
-
203XV-14251-00-00 ...NIPPLE...NIPPLE
-
215FL-14348-10-00 ...PIPE 1...PIPE 1
-
2268V-13533-00-00 ...HOSE, VACUUM SENSING 4...HOSE, VACUUM SENSING 4
-
235VX-1410E-00-00 ...HOSE...HOSE
-
245PW-14251-00-00 ...NIPPLE...NIPPLE
-
254KM-14137-00-00 ...CLIP...CLIP
-
265JW-14104-00-00 ...AIR SCREW SET...AIR SCREW SET
-
273H1-14147-00-00 ...O-RING...O-RING
-
285VX-14349-00-00 ...PIPE...PIPE
-
2990467-11090-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
305VX-1243E-00-00 ...HOSE 2...HOSE 2
-
315VX-13160-00-00 ...DELIVERY PIPE ASSY 1...DELIVERY PIPE ASSY 1
-
315VX-13160-00-00 ...DELIVERY PIPE ASSY 1...DELIVERY PIPE ASSY 1
-
325VX-82386-00-00 ...EXTENSION, WIRE HARNESS...EXTENSION, WIRE HARNESS
-
335VX-13533-00-00 ...HOSE, VACUUM SENSING 4...HOSE, VACUUM SENSING 4
-
345VX-14807-00-00 ...HOSE...HOSE
-
3590467-10008-00 ...CLIP, SCISSOR...CLIP, SCISSOR
-
3690413-08012-00 ...WAY 3...WAY 3
-
375VX-14465-01-00 ...PIPE...PIPE
-
385VX-14503-00-00 ...ADJUST SCREW SET...ADJUST SCREW SET
-
3990464-23041-00 ...CLAMP...CLAMP
