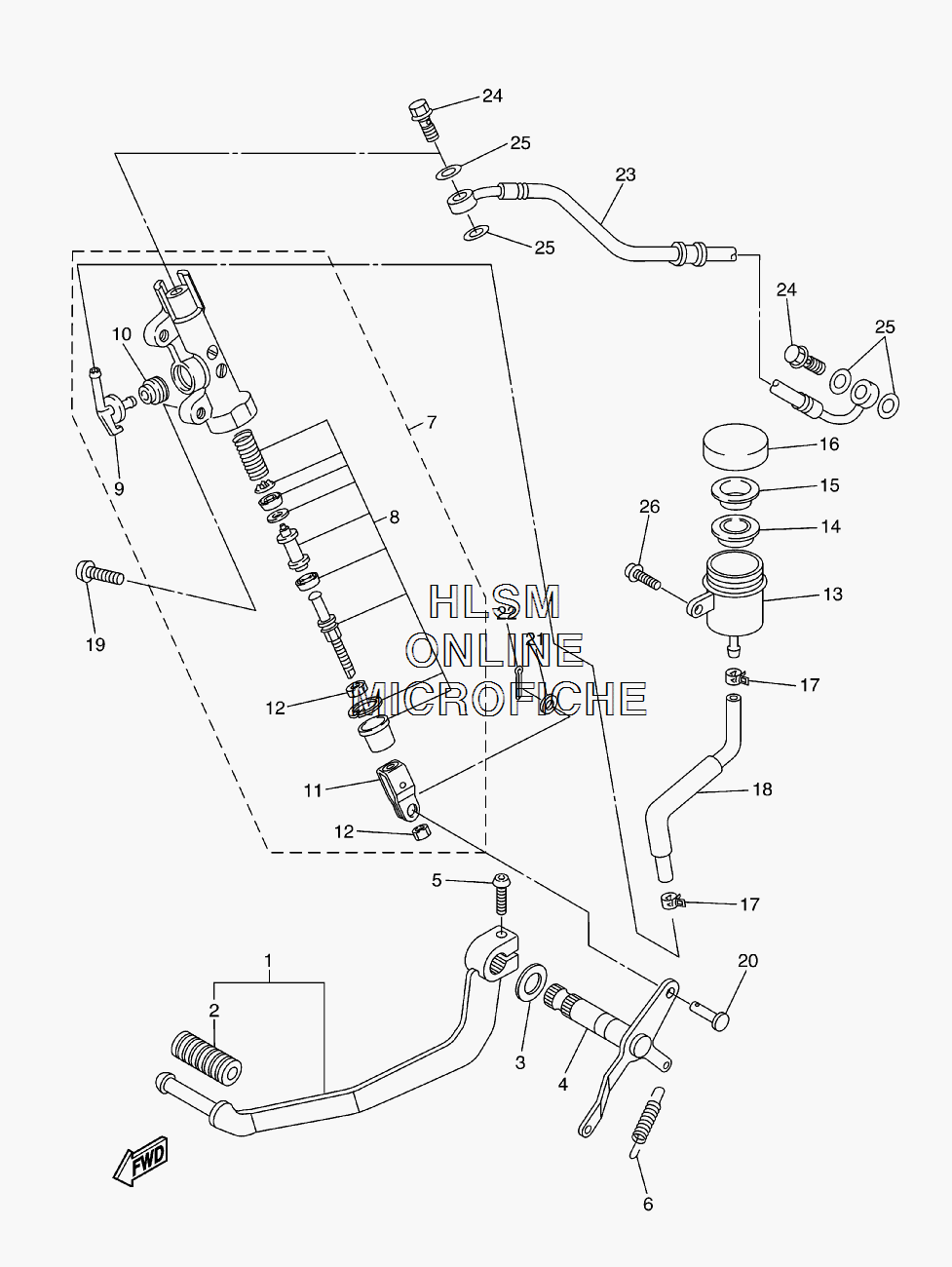

BRAKE - REAR MASTER CYLINDER для Yamaha FZ6 - 2008 года выпуска`
-
№АртикулНазвание
-
15VX-27200-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
25EB-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
390201-14215-00 WASHER, PLATEWASHER, PLATE
-
45VX-27212-00-00 SHAFT, BRAKE PEDALSHAFT, BRAKE PEDAL
-
592014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
690506-20223-00 SPRING, TENSIONSPRING, TENSION
-
72D1-2583V-00-00 RR. MASTER CYLINDER ASSY.RR. MASTER CYLINDER ASSY.
-
85VX-W0042-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
92D1-2582A-00-00 ...JOINT...JOINT
-
104BP-2585F-00-00 ...BUSH...BUSH
-
114BP-27222-01-00 ...JOINT...JOINT
-
1290170-08010-00 ...NUT...NUT
-
134P5-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
145SL-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
155SL-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
165SL-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
1790467-120A3-00 CLIPCLIP
-
184S8-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
1992014-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2090240-08124-00 PIN, CLEVISPIN, CLEVIS
-
2190201-08083-00 WASHER, PLATEWASHER, PLATE
-
2291401-20012-00 PIN, COTTERPIN, COTTER
-
235VX-2581K-01-00 HOSE, BRAKE 5HOSE, BRAKE 5
-
2490401-10020-00 BOLT, UNIONBOLT, UNION
-
2590430-10005-00 GASKETGASKET
-
2690119-06044-00 BOLT, WITH WASHERBOLT, WITH WASHER
